Medal Sports 44113 - Manuel (Page 7)

Center
player
7 8
30 24
22
23
x 2 x 2
x 16 x 8
x 8
x 8
22
22
7
8
5
6
6
5
23 24 30
22
30
8
5
23
30
22
30 24
6
7
6

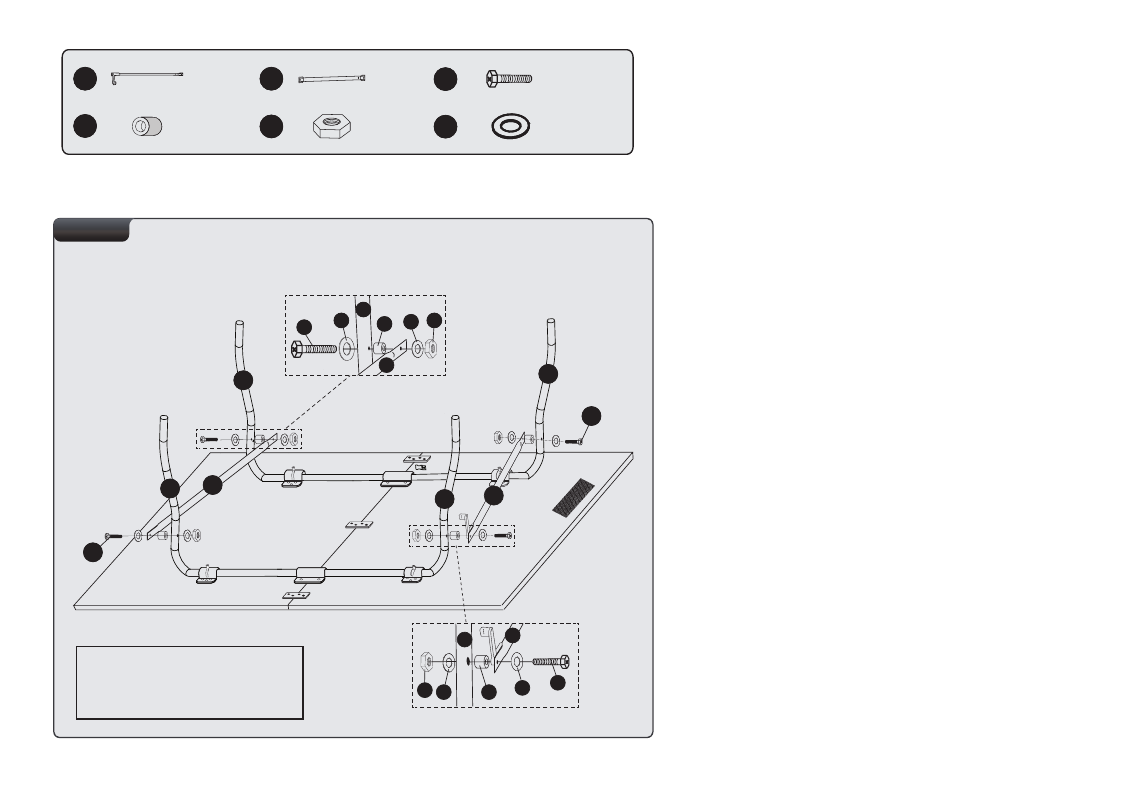

FIG. 3
FIG.3
11. Attach one end of the Linkage Tube (#8) to the inside of
the Outer Leg (#5) using one Bolt (#22), two Washers
(#30), one Bushing (#23) and one Nut (#24).
12. Repeat the same for the other end of this Linkage Tube,
only attaching it to the outside of the Inner Leg (#6).
13. Attach one end of the Linkage Tube with Stop Bracket
(#7) to the inside of the Outer Leg (#5) using one Bolt
(#22), two Washers (#30), one Bushing (#23) and one
Nut (#24).
14. Repeat the same for the other end of this Linkage Tube,
only attaching it to the outside of the Inner Leg (#6).
15. Repeat the steps above for the other table half.
Note:
Be careful of the assembly direction on
pictures when you assemble the Linkage
Tube #7 and #8 in order to fit the folding
function.
