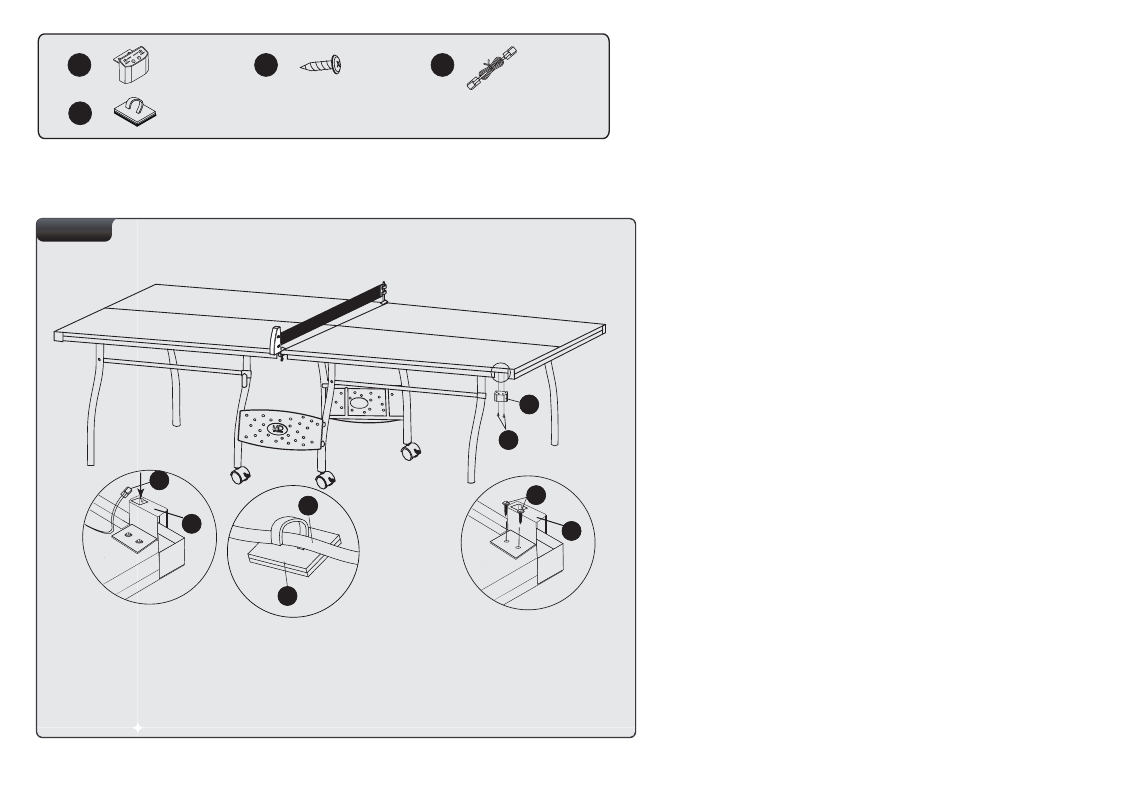

31. Place the Control Box (#33) at player’s left corner and install it
between the Apron Corner and Short Side Apron (#12) using
two Screws (#37).
32. From underneath the table, insert Connecting Wire (#36) into
the Electronic Scorer (#35) and the Control Box (#33).
33. Tear off the wax paper on the Tape (#38) and attach it to the
Connecting Wire (#36) at the underside of the table.
