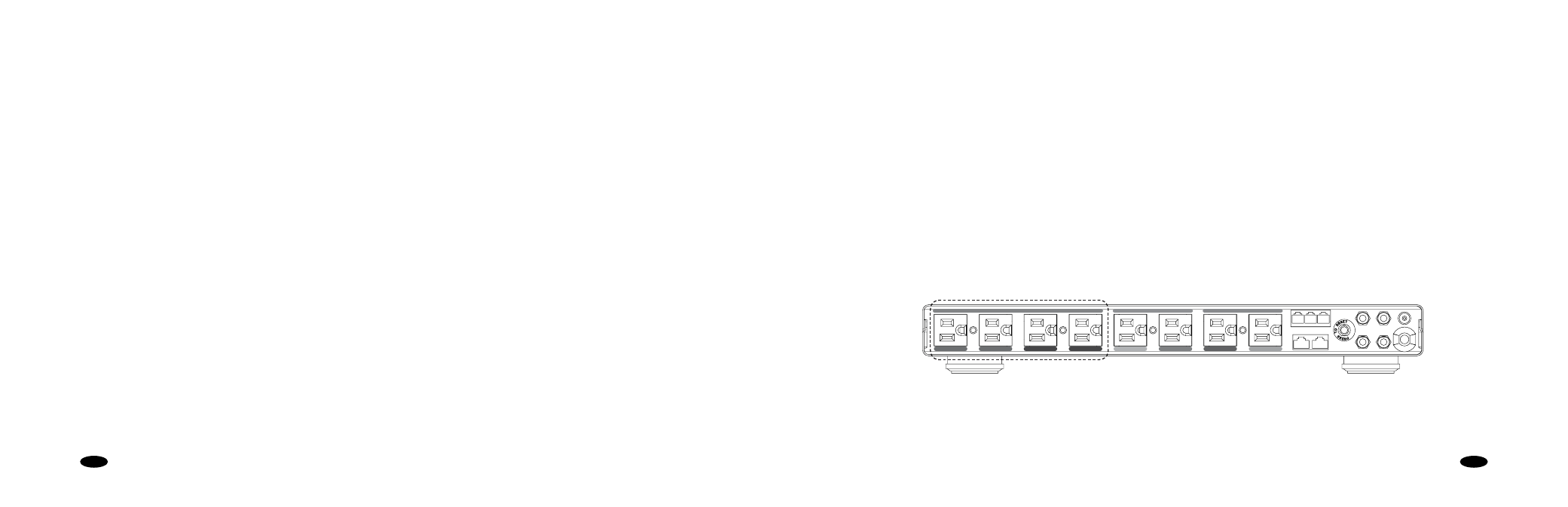

8 9
HOOK-UP GUIDe
Digital Outlet Hook-Up
These outlets have a special filter circuit that is optimized to reduce interference to your digital components .
a) Attach a Monster Power identification label to each component’s power cord
before you plug it into the appropriate color-coded PowerCenter outlet .
b) Plug each component’s power cord (TV/Monitor, VCR) into the PowerCenter’s corresponding outlet .
For components not listed, determine if they are audio, video, digital or ultra-high current audio components,
and use a corresponding outlet for best performance .
ImportaNt Note
It does not harm analog audio, video, or high current audio components to be connected to the digital outlets .
However, for best performance, we recommend plugging in only digital components to the digital outlets .
12. Cable and Satellite Protection: Provides surge protection for a Cable and satellite connection .
The input connects the coaxial cable from your antenna or your satellite dish . The output connects
the coaxial cable to your TV or cable box input or your satellite receiver input .
13. network line Surge Suppression: Provides surge protection against damaging voltage surges
and spikes from the network line .
14. Ground Screw: Provides a ground reference point for any ungrounded components .
15. Input aC Circuit breaker: Provides protection for prolonged or excessive overloading .
16. Ultra-High Current Powerline
™
100 aC Power Cable: High density double shielded
AC power cord specially designed to maximize power transfer .
Outlets
DVD CD CABLE/SAT HDTV/TV RECEIVER PROCESSOR MAIN AMP SPARE
VOLTAGE
GROUND OK WIRING CLEAN POWER ON ABNORMAL VOLTAGE PROTECTION ON
IN OUT
PHONE
GROUND
IN
CABLE
OUT
IN
SAT
OUT
NETWORK
ON / OFF
HTS1650
Home Theater Reference PowerCenter ™
with Clean Power ™ Stage 2 v.2.1 Filtering
DIGITAL FILTER ANALOG AUDIO FILTER HIGH CURRENT FILTER
