From properly grounded
Satellite Dish
HOOK-UP GUIDe

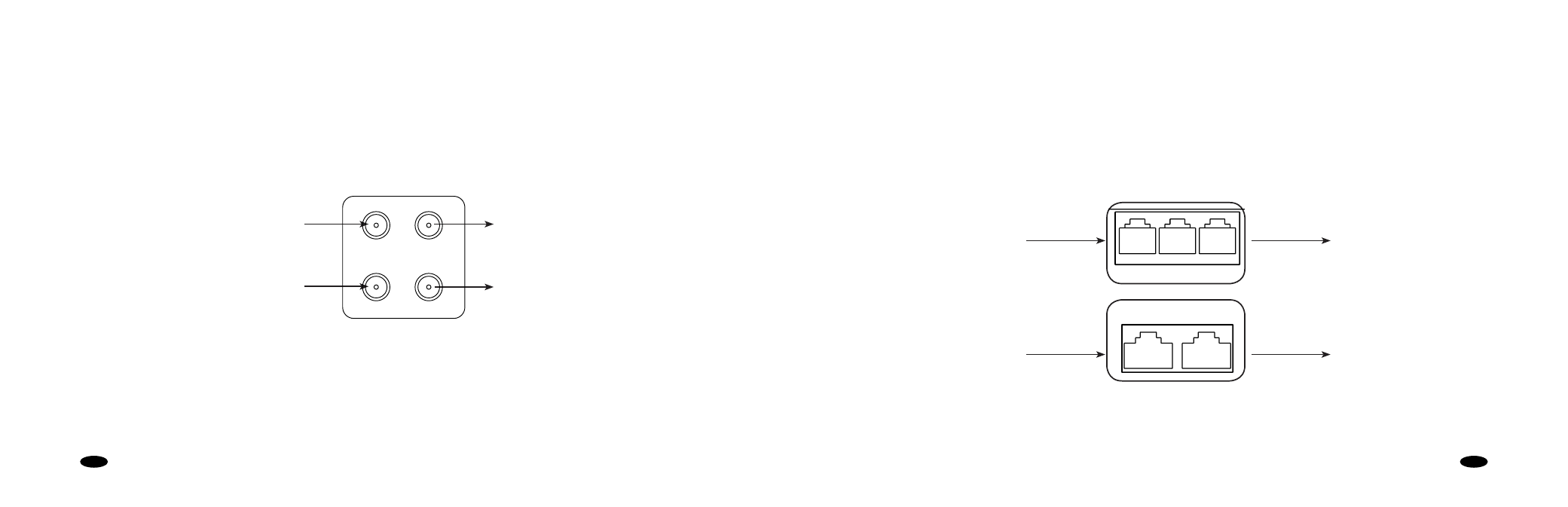

Coaxial Connections Hook-Up
Coaxial Connections provide surge protection against damaging voltage surges and spikes on the incoming coax cable .
Protect TV/Cable and Satellite Connections as follows:
nOTe: You may need additional coaxial cables to connect the HTS 1650 MP to your components .
To TV/Cable Box
From properly grounded
TV/Cable Line
To Satellite Receiver
HOOK-UP GUIDe
Phone and network Connections Hook-Up
Phone connections provide surge protection against damaging voltage surges and spikes
coming from the phone line . This PowerCenter also incorporates a phone splitter for convenience .
Protect Phone and network Connections as follows:
Note: The HTS 1650 MP is not intended for hook-up of any phone which carries two separate phone lines
on a single 4-pin RJ11 jack .
From Telephone
Wall Jack
To Satellite Receiver,
Digital Video Recorder
or Telephone
From Network Wall
Jack or Modem
To Network Switch/
Hub or PC
).
#!",%
/54
).
3!4
/54
DVD CD CABLE/SAT HDTV/TV RECEIVER PROCESSOR MAIN AMP SPARE
VOLTAGE
GROUND
OK
WIRING CLEAN
POWER ON
ABNORMAL
VOLTAGE
PROTECTION
ON
IN OUT
PHONE
GROUND
IN
CABLE
OUT
IN
SAT
OUT
NETWORK
ON / OFF
HTS1650
Home Theater Reference PowerCenter ™
with Clean Power ™ Stage 2 v.2.1 Filtering
DIGITAL FILTER ANALOG AUDIO FILTER HIGH CURRENT FILTER
DVD CD CABLE/SAT HDTV/TV RECEIVER PROCESSOR MAIN AMP SPARE
VOLTAGE
GROUND
OK
WIRING CLEAN
POWER ON
ABNORMAL
VOLTAGE
PROTECTION
ON
IN OUT
PHONE
GROUND
IN
CABLE
OUT
IN
SAT
OUT
NETWORK
ON / OFF
HTS1650
Home Theater Reference PowerCenter ™
with Clean Power ™ Stage 2 v.2.1 Filtering
DIGITAL FILTER ANALOG AUDIO FILTER HIGH CURRENT FILTER
