1650 mp powercenter features, Monster hts, 1650 mp front view hts – Monster HTS 1650 MP Manuel d'utilisation
Page 7: 1650 mp rear view
6
7
HTS
1650 MP POWeRCenTeR feaTUReS
1. Power On/Off Switch: Turns the PowerCenter on and off .
2. Digital Display for Voltage: Indicates input voltage .
3. “Ground OK” Indicator: Indicates the PowerCenter is plugged into a properly grounded 120V AV outlet .
4. “Wiring OK” Indicator: Indicates if the Line and Neutral wires from the wall outlet to the PowerCenter
are reversed . Please consult your electrician to correct this immediately .
5. “Clean Power On” Indicator: Indicates Monster Clean Power circuitry is functioning properly .
6. abnormal Voltage Indicator: Indicates that input voltage is above or below the acceptable range .
7. “Protection On” Indicator: Indicates that the PowerCenter’s surge protection is turned on .
8. Digital filter (Switched Outlets): These outlets, have a specially designed filter circuit that reduces
interference to your digital components .
9. analog audio filter (Switched Outlets): These outlets have a specifically designed filter circuit
that reduces interference to your audio components .
10. Ultra-High Current audio filter (Switched Outlets): These outlets have a specifically designed
filter circuit for high power audio components like amplifiers and pre-amplifiers .
11. Phone line Surge Suppression: Provides surge protection against damaging voltage surges
and spikes from the phone line .
MOnSTeR HTS
1650 MP POWeRCenTeR feaTUReS
HTS

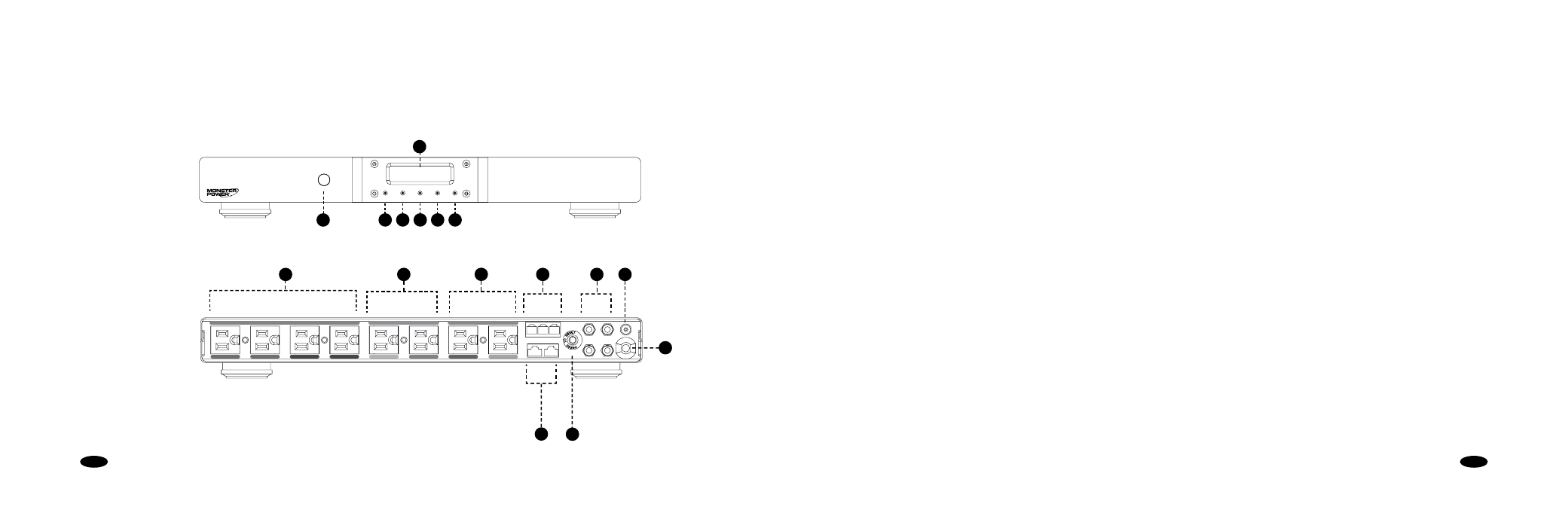

1650 MP
fROnT VIeW
HTS
1650 MP
ReaR VIeW
11
13
10
9
8
1
3
4 5 6
12
14
15
2
7
16
DVD
CD
CABLE/SAT
HDTV/TV
RECEIVER
PROCESSOR
MAIN AMP
SPARE
VOLTAGE
GROUND
OK
WIRING
CLEAN
POWER ON
ABNORMAL
VOLTAGE
PROTECTION
ON
IN
OUT
PHONE
GROUND
IN
CABLE
OUT
IN
SAT
OUT
NETWORK
ON / OFF
HTS1650
Home Theater Reference PowerCenter
™
with Clean Power
™
Stage 2 v.2.1 Filtering
DIGITAL FILTER
ANALOG AUDIO FILTER
HIGH CURRENT FILTER
DVD
CD
CABLE/SAT
HDTV/TV
RECEIVER
PROCESSOR
MAIN AMP
SPARE
VOLTAGE
GROUND
OK
WIRING
CLEAN
POWER ON
ABNORMAL
VOLTAGE
PROTECTION
ON
IN
OUT
PHONE
GROUND
IN
CABLE
OUT
IN
SAT
OUT
NETWORK
ON / OFF
HTS1650
Home Theater Reference PowerCenter
™
with Clean Power
™
Stage 2 v.2.1 Filtering
DIGITAL FILTER
ANALOG AUDIO FILTER
HIGH CURRENT FILTER
