Torche HyPerformance
Torche

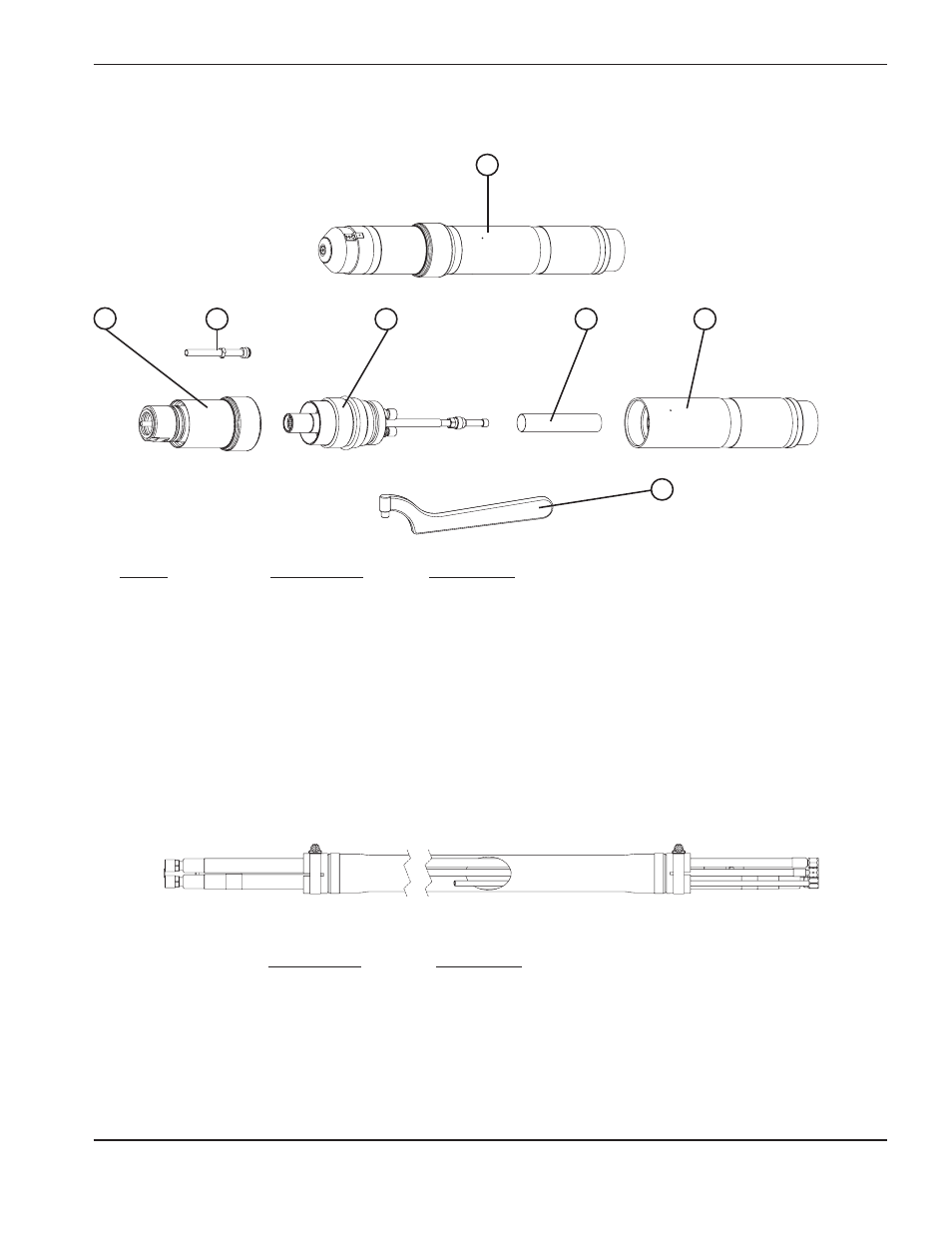

NOMENCLATURE DES PIÈCES
5
HPR130 gaz manuel Mode d’emploi 6-9
Numéro
Article de référence Description
1 128818 HPR machine torch assembly
2 220162 Quick-disconnect torch
3 220340 Water tube
4 220163 Quick-disconnect recepticle
5 046175 Insulating sleeve: 1/2” ID
6 220232 Torch mounting sleeve assembly
7 104269 2” spanner wrench
128879 Torch kit: bullet plugs, o-rings, water tube and seal
128880 Quick disconnect kit: o-ring and connector
Faisceaux de torche
Numéro
de référence
Description
128986 2 m (6 ft)
128935 3 m (10 ft)
128934 4.5 m (15 ft)
128784 7.5 m (25 ft)
128987 10 m (35 ft)
128785 15 m (50 ft)
128988 20 m (65 ft)
