21 DÉCHIQUETEUSE/BROYEUSE 2,75 POUCES
FRAN
Ç
AIS
PIeCeS

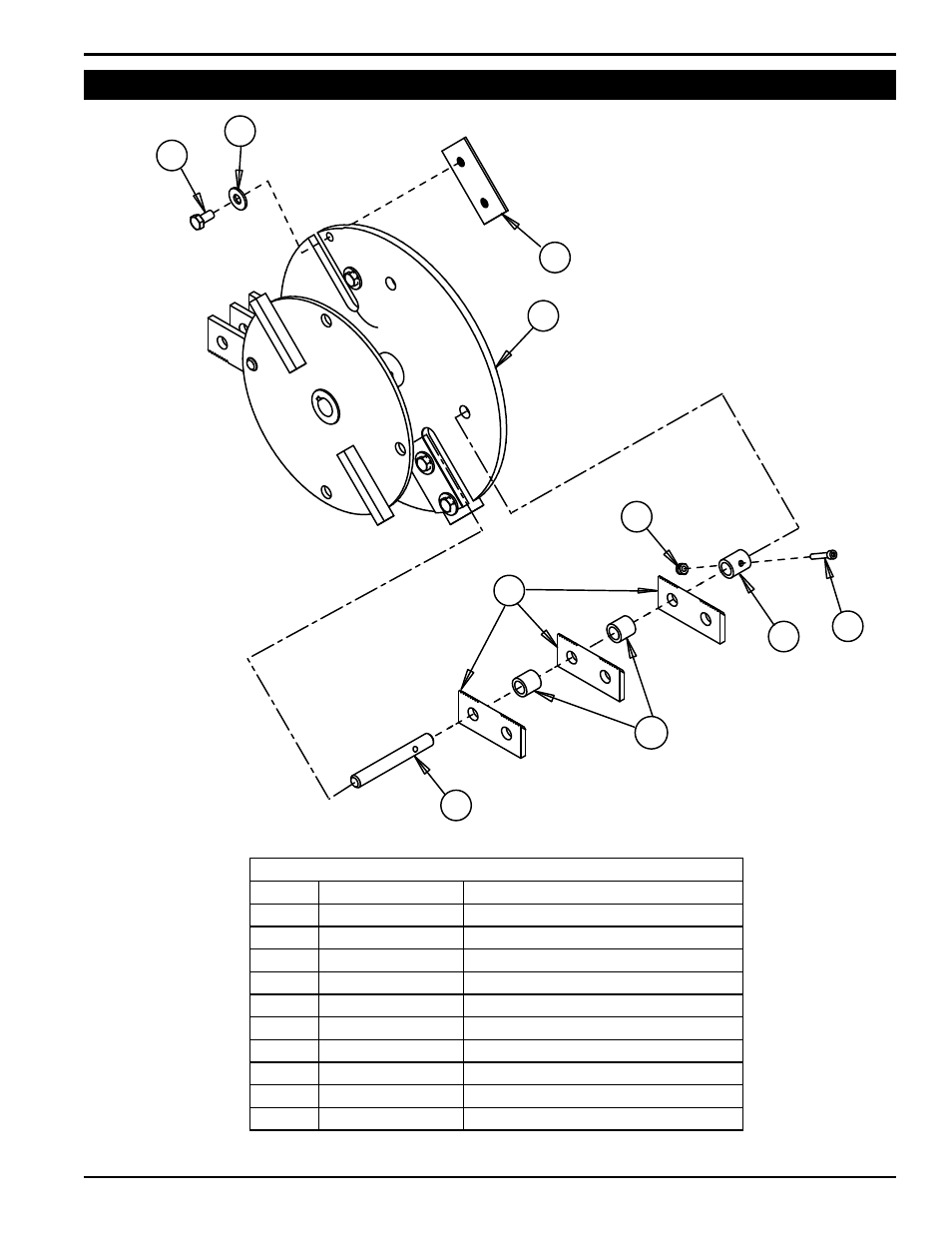

8.6 ROTOR ASSembLy
5
8
10
3
1
6
2
7
9
4
75399-00, C/S ROTOR ASSembLy
ITem PART NUmbeR deSCRIPTION
1 15397 NUT, #10x24 NYLOCK
2 15446 BOLT, 5/16 x 5/8” GR 8 HCS PATCH
3 15466 SCREW, 10-24 x 1-1/8
4 15548 WASHER, 5/16” GR8 USS ZP
5 70187 SHAFT, SMALL C/S KNIFE
6 70291 SPACER, 0.75 x 0.90 IN.
7 70739 BLADE, TWO EDGE CHIPPER
8 70856 SHREDDER KNIFE, RECTANGULAR
9 75398-00 WELDMENT, C/S ROTOR
10 75401-00 SPACER, 0.75 x 0.75 IN.
