Echo Bear Cat SC2206 - Manuel (Page 24)

20 DÉCHIQUETEUSE/BROYEUSE 2,75 POUCES
PIeCeS
8.5 HOPPeR
6
15
6 7
5
19
11
10
14
10
10
17
2
3
6
4
9
1
16
6
7
9
12
10
1
8
10
18
20
20

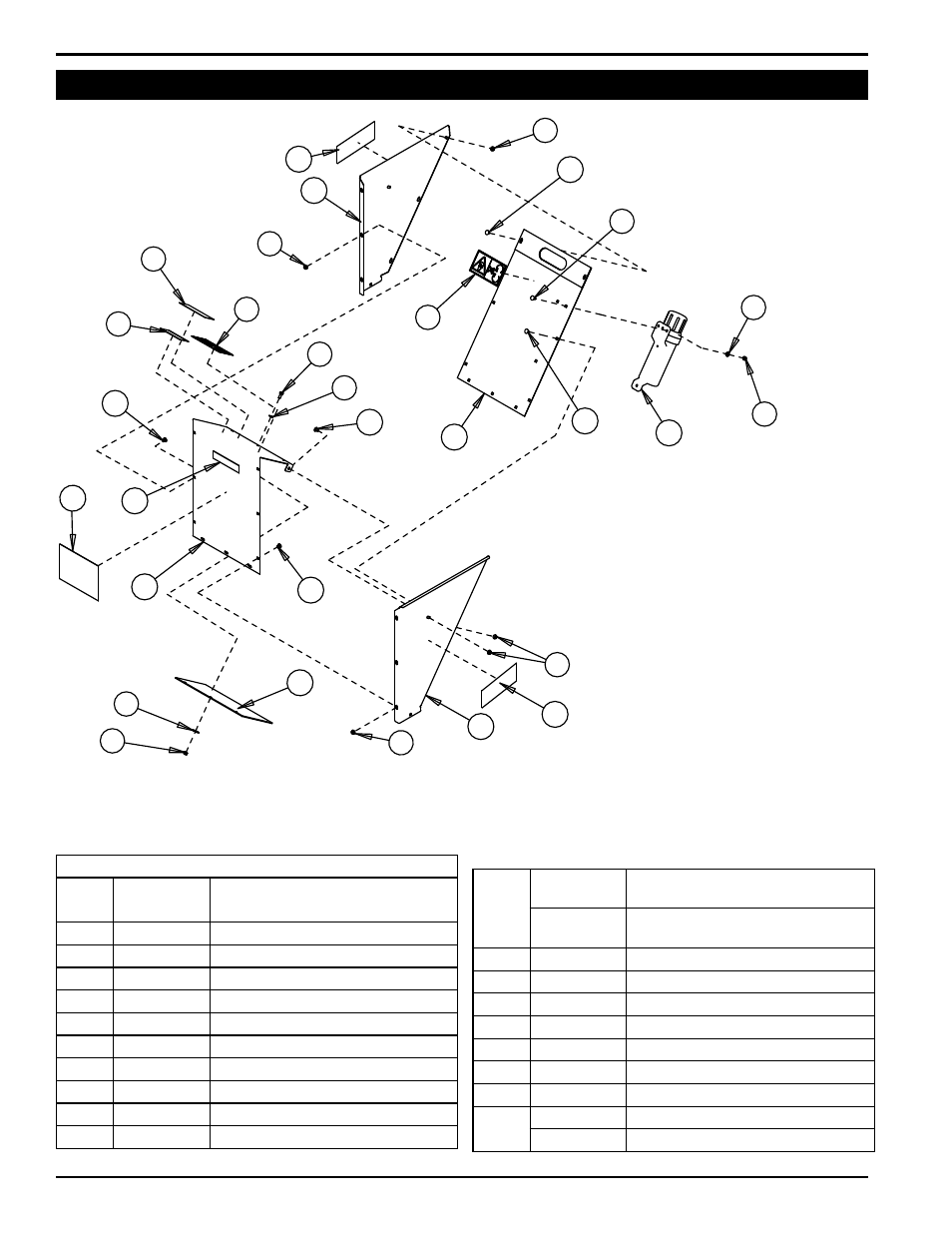

SC2206 ASSembLy (b)
ITem NUmeRO de
PIeCe
deSCRIPTION
1 12175 DECAL, INLET AND DISCHARGE
2 12176 DECAL, SHREDDER SIZE
3 14942-00 DECAL, MULTILINGUAL MANUAL
4 15003 BOLT, 5/16 x 3/4” GR5 HEx HD ZP
5 15040 WASHER, 5/16” FENDER ZP
6 15351 NUT, 5/16” SERR FLANGE NC ZP
7 15356 NUT, 5/16” NE NYLOCK ZP
8 15357 BOLT, 5/16 x 3/4” GR5 NC ZP CRG
9 15416 WASHER, 5/16” SAE FLAT ZP
10 15808-00 BOLT, 5/16 x 1/2” CRG SN GR5 ZP
11
17836
DECAL, BEARCAT PICTURE
(SC2206))
18665-00
DECAL, BEARCAT PICTURE
(SC2206-S)
12 18008-00 CONTAINER, MANUAL
14 18902-00 DECAL, MODEL SC2206
15 75392-35 SIDE, HOPPER LH
16 75393-35 SIDE, HOPPER RH
17 75394-35 FRONT, HOPPER
18 75395-35 REAR, HOPPER
19 75412-00 FLAP, C/S HOPPER
20
17913 DECAL, LOGO (SC2206)
18666-00 DECAL, LOGO (SC2206-S)
