Guide du propriétaire du Cybex Arc Trainer 750A/750AT
Sécurité
Page 1-6
NOTE:
This is the minimum recommended service.
NOTE:
If using optional
AC Power Kit, unplug
unit from wall outlet.
Determine
mileage.
1.Start
pedaling unit.
2.During initial countdown, press CLEAR 9,9,9 ENTER.
The firstmenu item is ODOMETER. Press ENTER
to view accumulated
distance.
First 500 Miles / 800 Km
A
Check drive belts for tension and wear
.
Every 5000 Miles / 8000 Km
A
Check drive belts for tension and wear
.
B
Move unit and vacuum underneath.
C
Remove access cover to clean
inside - u
Every 20,000 Miles / 32000 Km
D
Check elevation assembly and replace
worn p
Service Schedule
U6
Q1
L3
T1
C25
J2
J1
J5
J4
D2
D36
C23
C24
K1
K2
K3
J8
J6
L5
10
9
3
4
2
1
7
8
6
5
LED 1 - Console
Transmit
LED 2 - Console Receive
LED 3 - Battery Charge Status
LED 4 - Battery Charge Status
LED 5 - Powered from Generator
LED 6 - Brake Current
LED 7 - +12V External Power
LED 8 - Display V
oltage (+12V)
LED 9 - Elevation Motor Down
LED 10 - Elevation Motor Up
Diagnostic LED Designation
All maintenance activities shall be performed by qualified
personnel. Failure to do so could result in serious injury
.
NOTE:
Refer to Service Manual for detailed trouble shooting information.
Set up (CLEAR 7,5,0, ENTER)
Diagnostic (CLEAR 8,8,8, ENTER)
Statistics (CLEAR 9,9,9, ENTER)
Entering Hidden Menus
A.Clean Brake/Enclosure
B.Check Connections
C.Check Fuse
D.Check Battery
750A-329-4
8Approaching Over-Temperature
9Display watchdog triggered
B,H,K
22Speed irregularity - Low speed and High power
23Speed irregularity - High speed and
Low power
24Incline moving too slowly
D,F,J
25Incline movement feedback stopped
26Incline disabled
C,D,E,F,J
27Low Battery
B,G,I,K
28Over-Temperature A,B,C,G
29Controller watchdog triggered - EEPROM or Memory Error
Error Codes
BA
TTER
Y ST
AT
US FROM LEDs 4
AND 3
NO
BA
TTER
Y
PRE
CHARGE
HIGH
CHARGE
TRICKLE
CHARGE
4
3
4
3
4
3
4
3

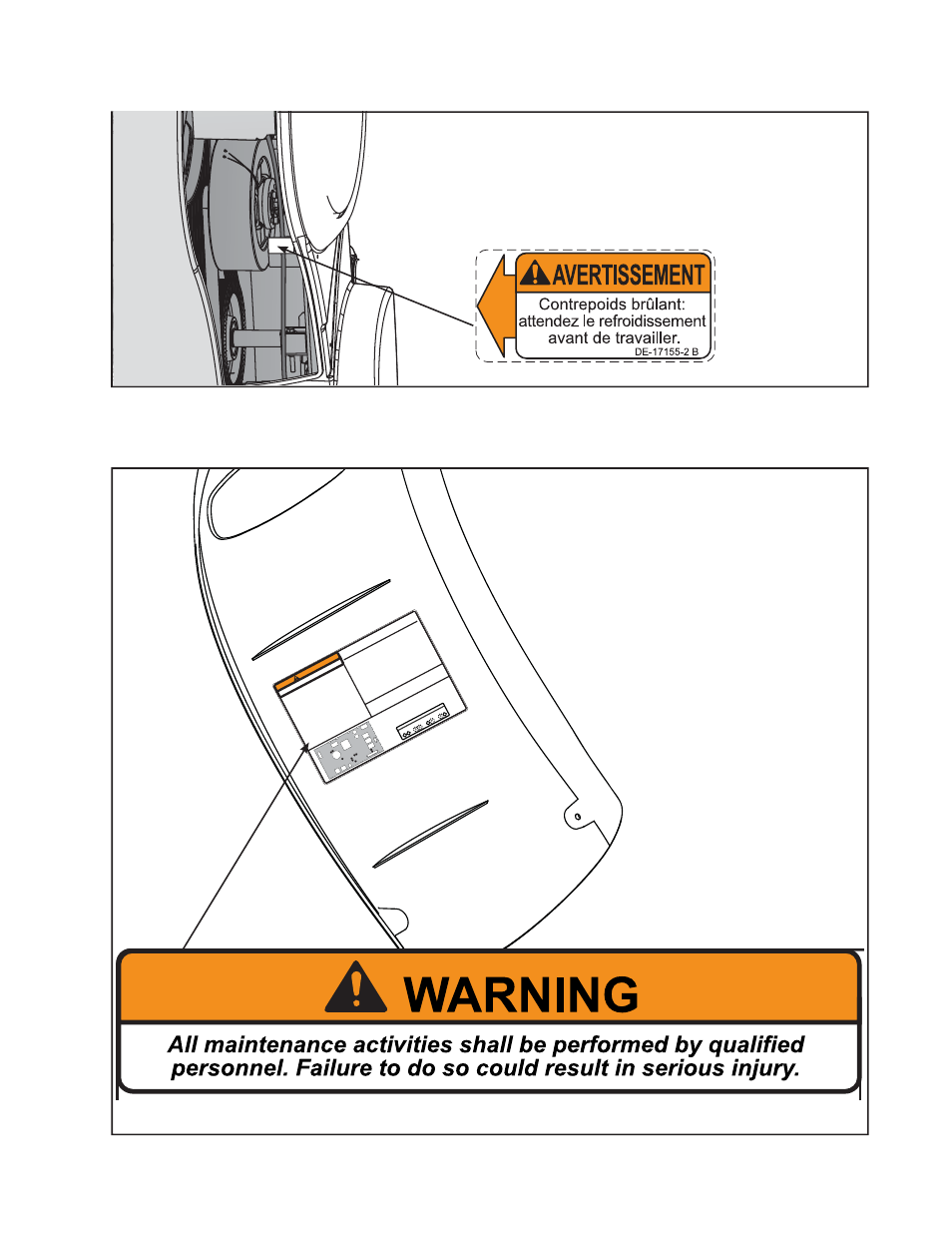

Autocollant d’avertissement - 750A-329-4
Autocollant d’avertissement
DE-17155-2
REMARQUE : Autocollant situé sur l’intérieur
du capot.
