Chapter 2 : TECHNICAL DESCRIPTION

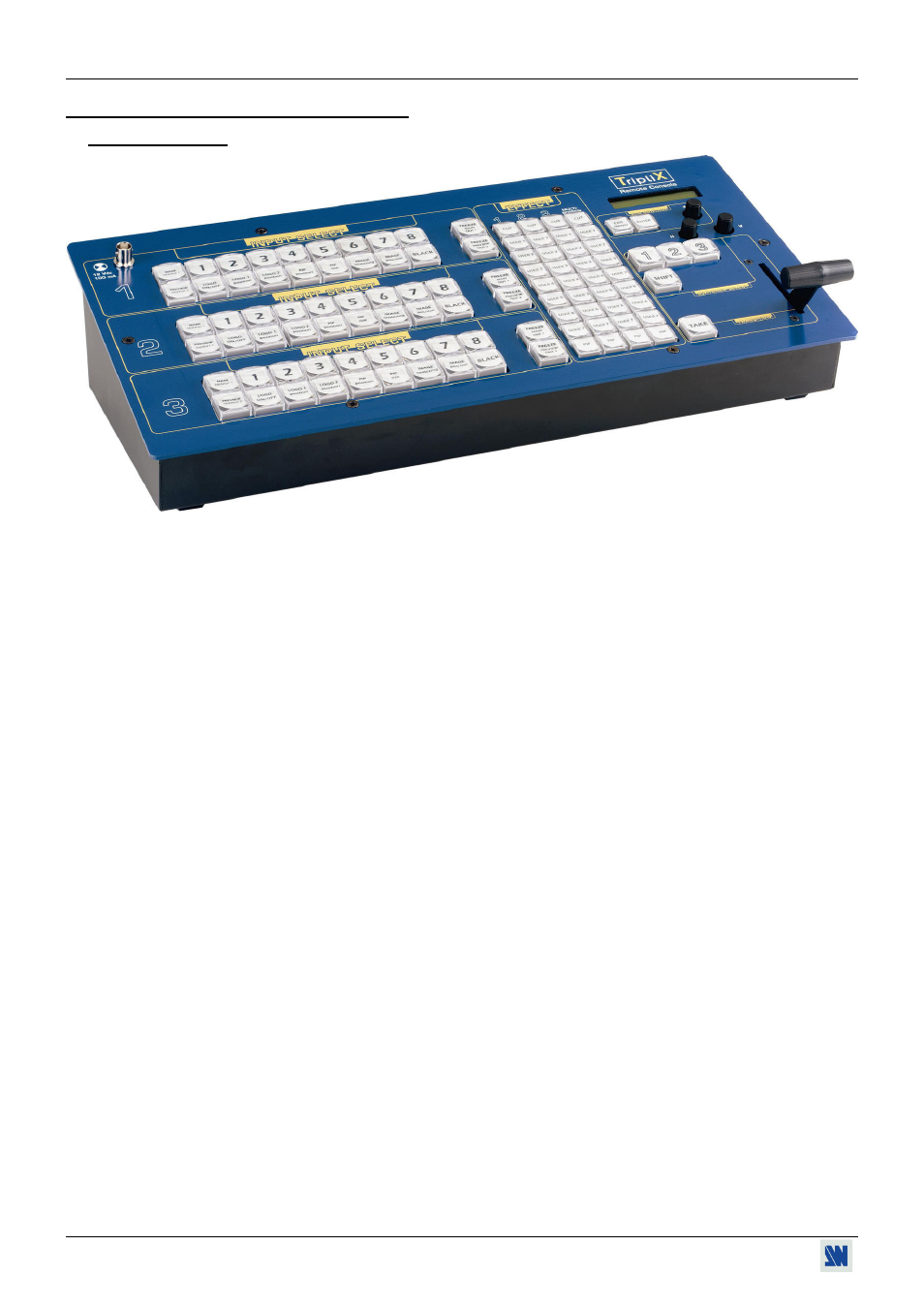

2-1. FRONT PANEL
1
:
Input selection & image adjustment keys of the switcher #
1.
2
:
Input selection & image adjustment keys of the switcher #
2.
3
:
Input selection & image adjustment keys of the switcher #
3.
1 to 8:
Input selection keys.
LOGO ON/OFF:
Display ON or OFF the assigned logos of the displayed input.
LOGO 1 POSITION:
Horizontal & Vertical logo #1 position adjustment. Adjust with H & V knobs.
LOGO 2 POSITION:
Horizontal & Vertical logo #2 position adjustment. Adjust with H & V knobs.
IMAGE CENTERING:
Automatically position the selected source in the centering pattern.
IMAGE POS. / SIZE:
IMAGE position & size adjustment.
• First push: position adjustment. Adjust with H & V knobs.
• Second push: size adjustment. Adjust with H & V knobs.
PIP POS. / SIZE:
PIP position & size adjustment.
• First push: position adjustment. Adjust with H & V knobs.
• Second push: size adjustment. Adjust with H & V knobs.
BLACK:
BLACK screen selection.
FREEZE MAIN/OUT1:
Image FREEZE. Freeze the MAIN output.
FREEZE PREVIEW/OUT2: Image FREEZE. Freeze the PREVIEW output.
EFFECT:
Effect keys selection. The USER keys allow to store, for all of the switchers, an effect
with all of its parameters.
1
:
Effect keys of the switcher #
1.
2
:
Effect keys of the switcher #
2.
3
:
Effect keys of the switcher #
3.
Multi-effect:
Effect keys for multi-screen application.
