TRIPLIX™ (TRC8022)
PAGE 26
Chapter 6 : UPDATING THE TRIPLIX ™

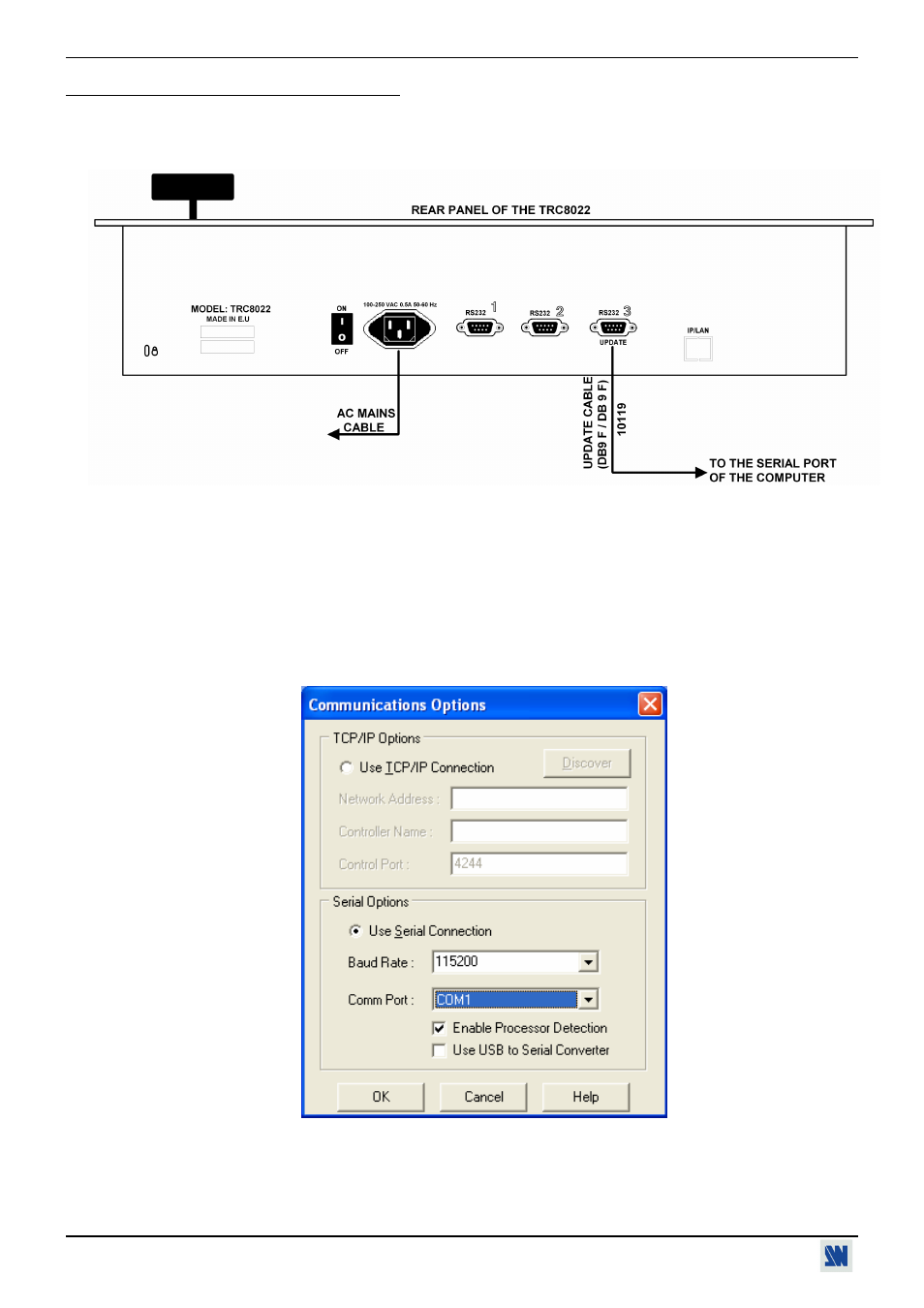

The TRIPLIX ™ can be update thanks a COMPUTER (PC) via its RS-232 #3 connector.
c Connect the RS-232 #3 connector to the serial port of a Computer with the "update" cable supplied with.
d Connect the AC power supply cord to the TRIPLIX
™ , and turn ON the TRIPLIX ™ .
e Installation of the UPGRADE SOFTWARE:
• Insert the disk into the floppy drive and choose RUN in the Windows START menu.
• Chose the disk drive and click on Setup.EXE
• Follow the WINDOWS installation instructions. WINDOWS will create a file C:\Programfiles\ANALOGWAY\TRC
updater.
f Instructions:
• Open the file TRC updater (in START- Program - ANALOG WAY - TRC updater).
• In the Setup menu select Communications, then select 115200 in Baud Rate section and validate with OK.
