Fulgor Milano 700 Series 36 Inch Induction Cooktop Installation Instructions - Manuel (Page 8)

EN
4

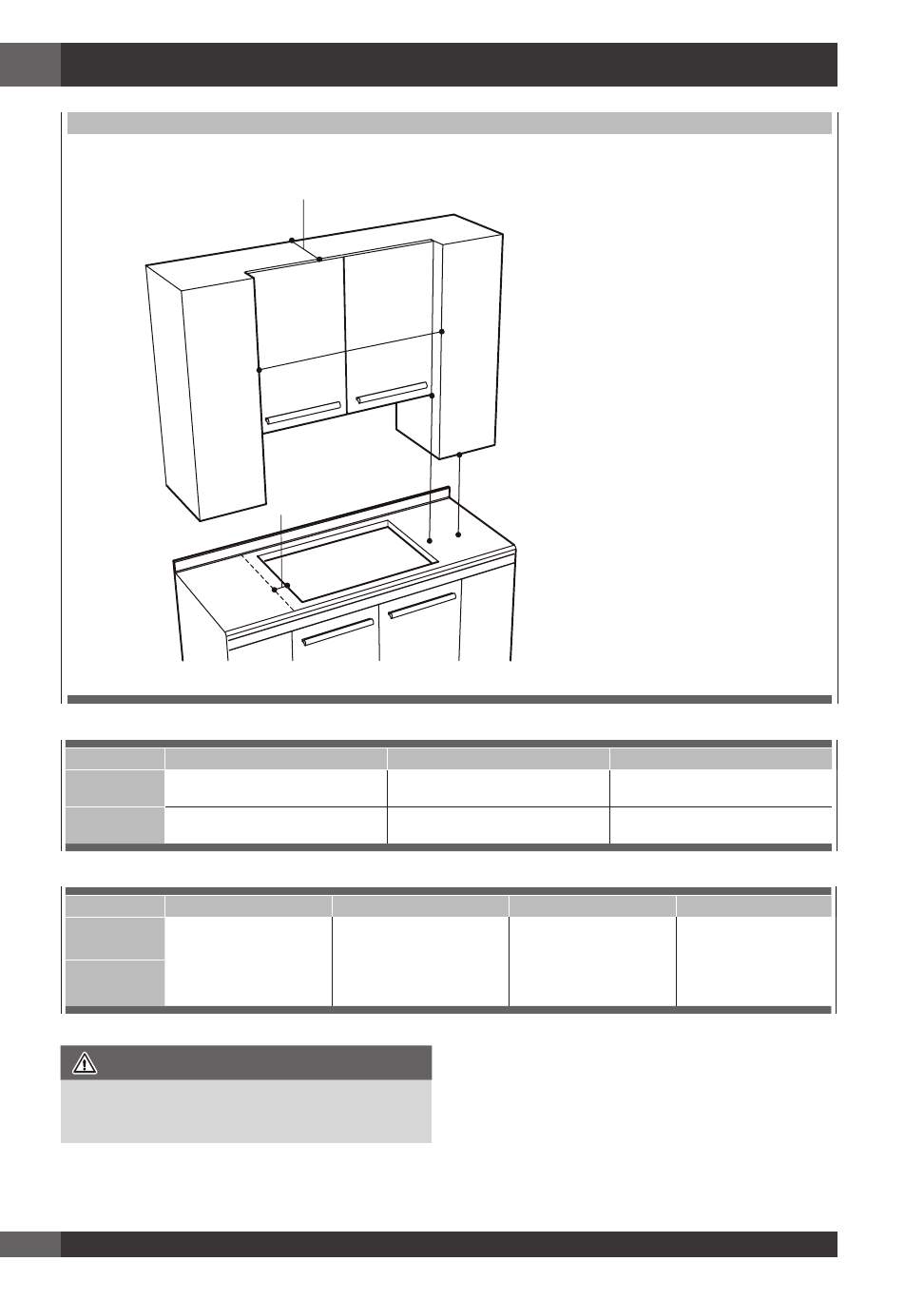

CUTOUT REQUIREMENTS
D
G
C
E
F
WALL COVERING CABINETS,
AND COUNTERTOP MUST
WITHSTAND HEAT UP TO 93° C (200° F)
Cutout width A B C
30”
(76.2cm)
28-3/4” +/- 1/16”
(73.0 cm +/- 0.1cm)
19-7/16” +/- 1/16”
(49.4 cm +/- 1mm)
30”
(76.2 cm) min
36”
(91.4cm)
34-5/8” +/- 1/16”
(87.9 cm +/- 0.1cm)
19-7/16” +/- 1/16”
(49.4 cm +/- 1mm)
36”
(91.4 cm) min
Cutout width D E F G
30”
(76.2cm)
18”
(45.7 cm) min
Height from countertop to
nearest cabinet on either
side of unit
30”
(76.2 cm) min.
(see note*) Clearance from
countertop to unprotected
overhead surface
2”
(5 cm) min
Clearance from cutout to
side wall on the left and
right of the unit
13”
(33 cm)
Depth of unprotected
overhead cabinets
36”
(91.4cm)
IMPORTANT
Under the cooktop it is necessary to install a partition, as
shown
NOTE: 24” (61 cm) min. clearance if bottom of wood or metal
cabinets is protected by not less than 1/4” (0.6 cm) flame
retardant millboard covered with no less than No. 28 MSG
sheet steel 0.015” (0.04 cm) stainless steel, or 0.024”
(0.06 cm) aluminum or 0.020” (0.05 cm) copper. 30”
(76.2 cm) min. clearance between top of cooking platform
and bottom of unprotected wood or metal cabinet.
