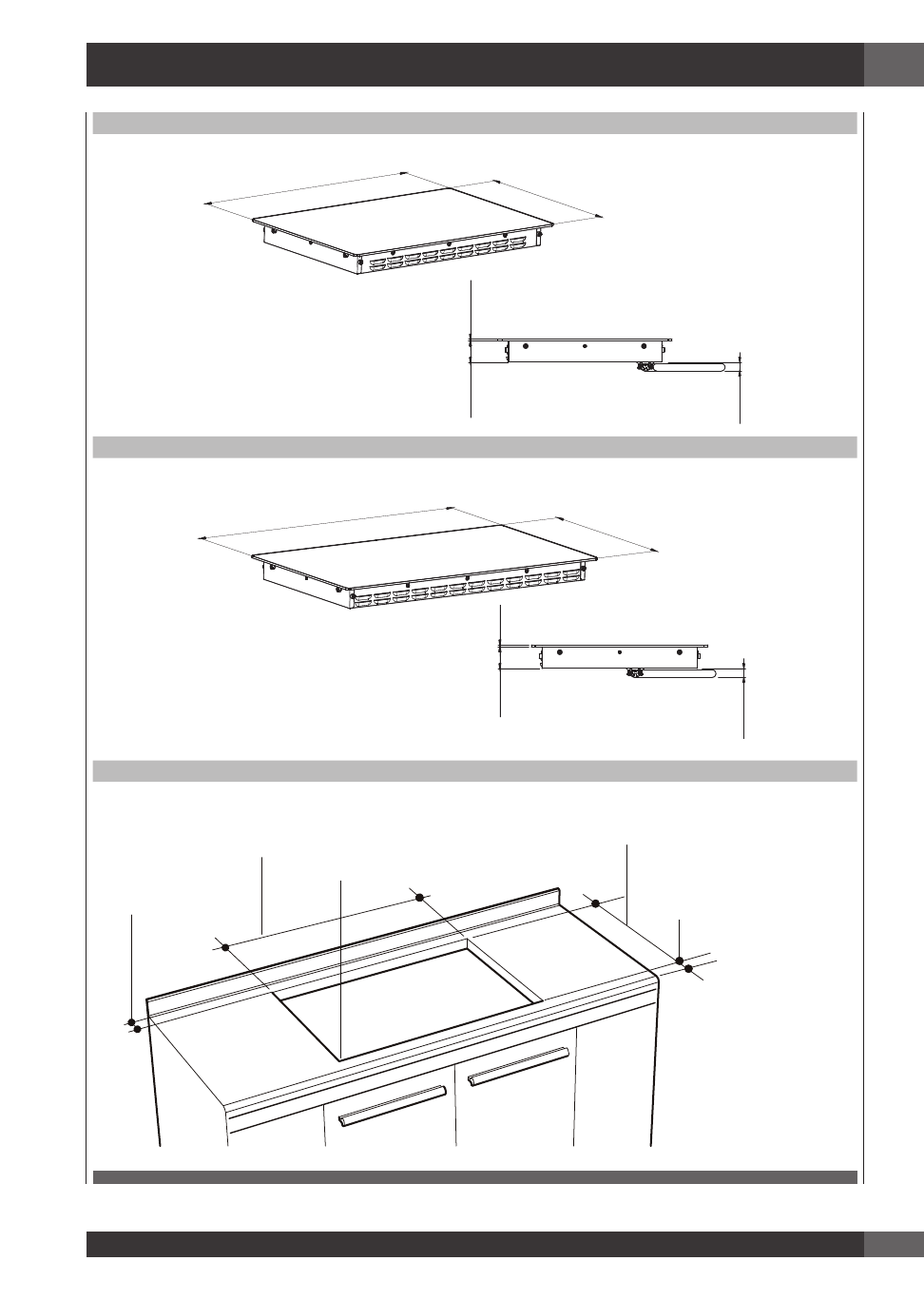

2 - Product Dimensions and Cutout Requirements
30”
30” 3/8
(771 mm)
21” 3/16
(538 mm)
1/4”
(6mm)
2” 5/8
(66 mm)
1” 1/16
(27 mm)
36”
36” 3/16
(919 mm)
21” 3/16
(538 mm)
1/4”
(6mm)
2” 5/8
(66 mm)
1” 1/16
(27 mm)
CUTOUT DIMENSION
LENGTH OF CUT
A
LENGTH OF CUT
B
1-1/2” (3.8CM)
MIN CLEARANCE
SEE NOTE
R
FROM EDGE OF CUTOUT
TO FRONT EDGE OF
COUNTERTOP
2-1/2” (6.5 cm)
