20
CAUTION
Handle carefully when removing and replacing gas components. Use proper support to prevent
damage to components.
IMPORTANT:

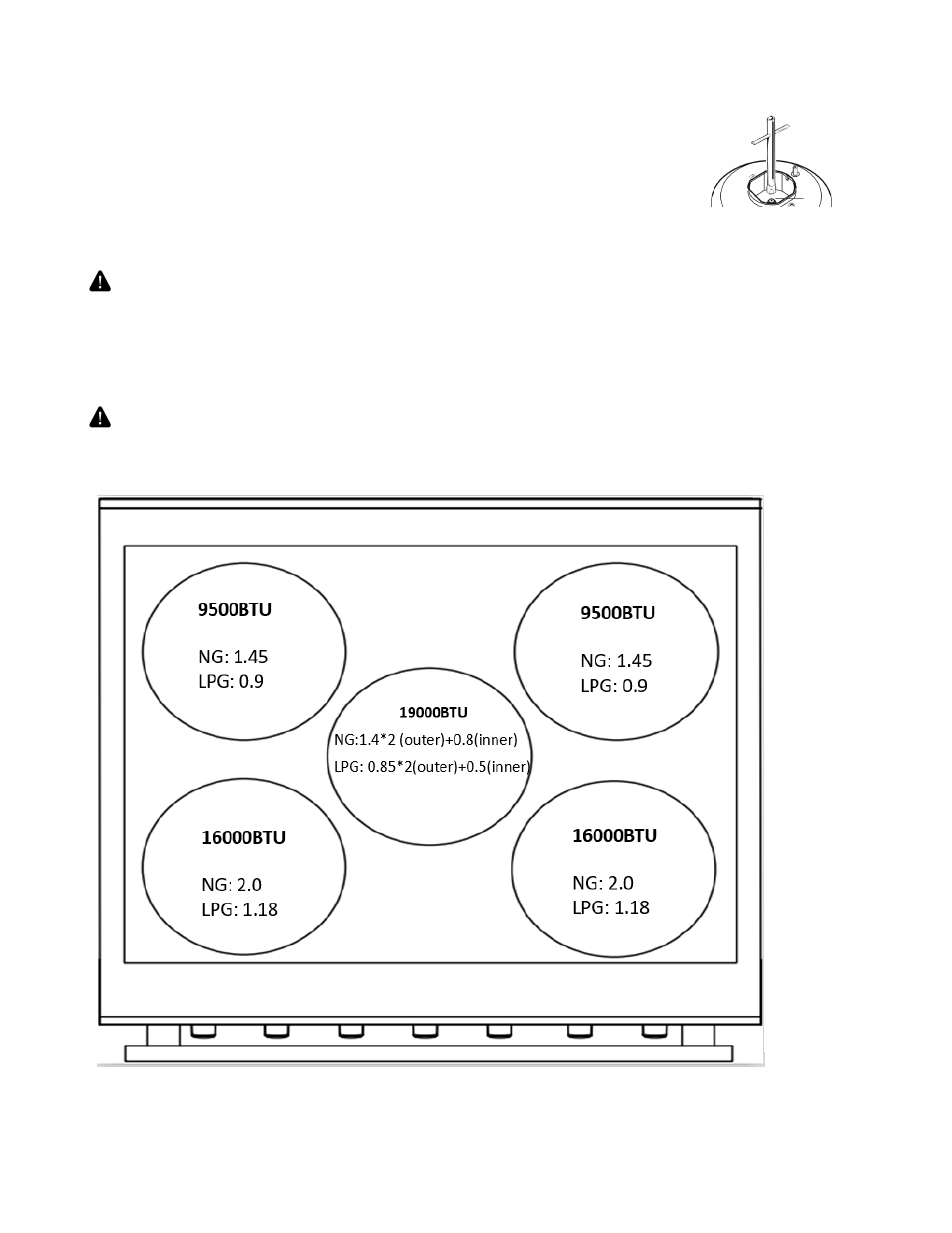

Each injector has a number indicating its flow diameter printed on the body. Consult the table below for
matching nozzles with cooktop burners.
CAUTION
The Re-ignition system and automatic gas-cut-off system are not equipped on the cooktop
burners. If the flame goes out by accident, need to turn off the valve immediately to cut off the gas supply.
IMPORTANT: Keep the injectors removed from the range for future use.
STEP 2 : Cooktop Burners
a. Remove cooking grills and burner caps.
b. Lift off outer burner spreader.
c. Remove the factory installed natural gas nozzles from the center of the nozzle holders
using a 7mm socket wrench. Replace the LP injector in each nozzle holder. Tighten each
injector properly.
Do not over tighten the injector.
Socket wrench
