Procedure

Convert Pressure Regulator from
6" W.C. to 11" W.C.

1.

2.

Remove warming drawer;

p

ull drawer out until stop is

reached. Facing the range, push clip on left side up

and clip on right side down. Pull drawer the rest of the

way out.

Remove cover plate from interior back wall by

removing single screw on left side of panel. Use a torx
T-20 head screwdriver.

3. Remove the hexagon cap from the top of the regulator

with an adjustable wrench.

4. Pop out the plastic stem in the cap and turn it over

pressing it firmly in place so that the letters "LP" (rather
than "NAT") are seen upright in the stem.
Replace the cap and button assembly into the top

of the regulator sealing it firmly. Make certain
spring is still in place (See Fig. 1). DO NOT
OVERTIGHTEN.

5. Fill out and affix the CONVERSION STICKER on the

back side of the cover plate so that it appears on the
back side of range next to the regulator.

Replace Cooktop Orifices

1. Remove grates, burner caps and burner bases.

Unscrew two (2) T20 screws inside each base and
remove burner bases. Reinsert screws in jet holder to
hold tubing assembly in place.

2. Remove natural gas cooktop orifices.

Insert the socket driver with 3" minimum extension into
the jet holders to remove existing orifices. Set natural
gas orficies aside.

3. Assemble LP cooktop orifices.

Place in cooktop exactly as specified on the orifice
card. Placement can be determined by matching the
orifice size to the number on the card.

4. Place the new orifice into the socket then insert each

orifice into its respective threaded hole in the jet holder.
Tighten until the orifice stops turning. DO NOT
OVERTIGHTEN.

5. Remove screws placed in jet holder to replace burner

base, burner cap and burner grate. Reinstall screws.

Note:

Burner cap must be properly positioned on

burner base for burner to light.

6. Retain natural gas orifices for future conversion back to

natural gas.

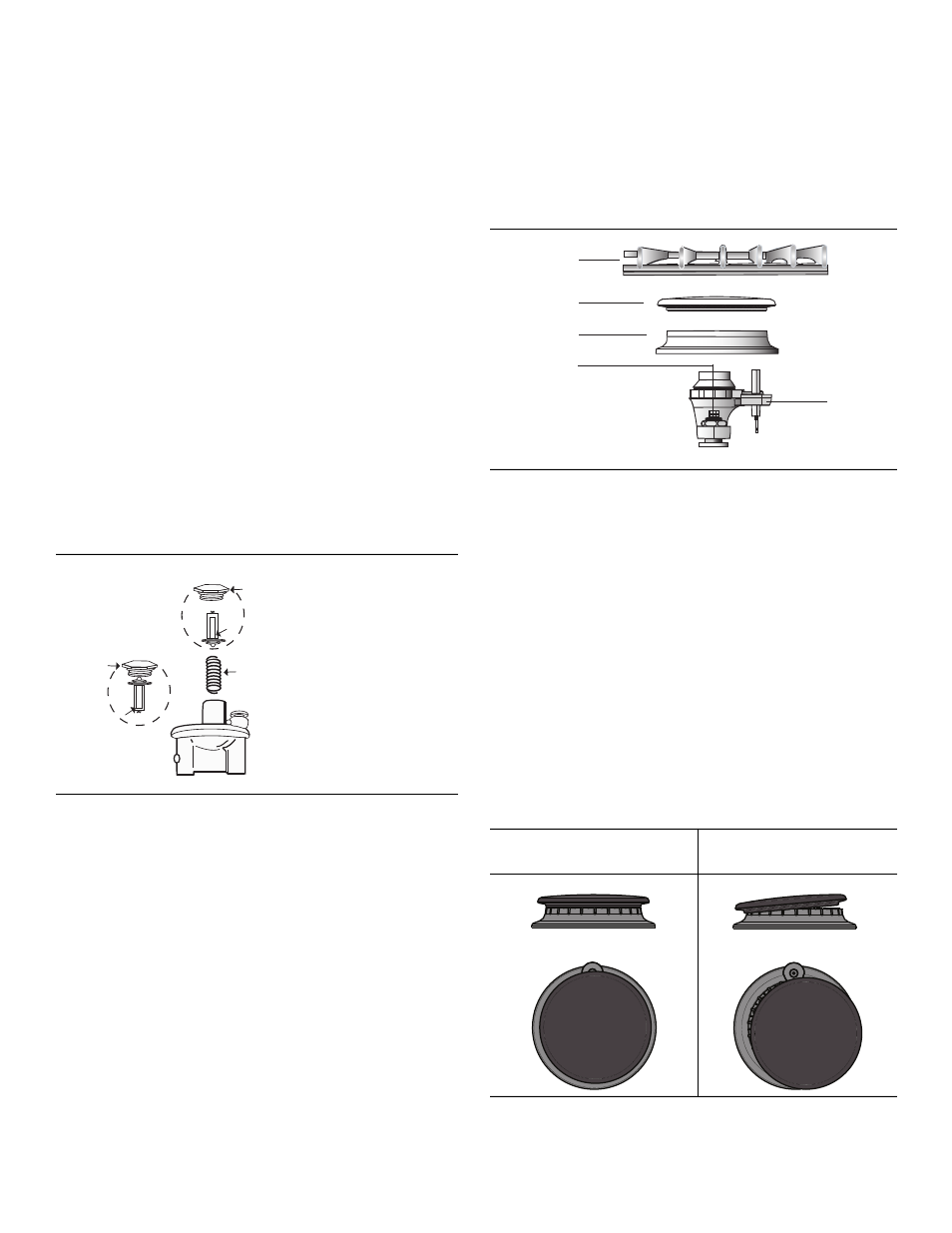

Figure 1: Pressure Regulator

NA
T

LP

NAT

Hex
Cap

Pin
Position
for Nat.
Gas

Pin

Pin Position
for Propane

Hex
Cap

LP

Pin

Spring

PRESSURE REGULATOR VIEW

Figure 2: Sealed Gas Burners

Correct Burner Cap

Placement

Incorrect Burner Cap

Placement

Burner Cap Placement

Burner Grate

Burner Cap

Burner Base

Orifice

Ignitor
