Dual Fuel appliance installation is complete when cor-
rect color, carryover and size are verified on each
cooktop burner.
For gas appliances, continue to “Test Broil Burner”.
Test Broil Burner
Test Ignition
Set cooking mode to Hi Broil. The burner will ignite after
30-75 seconds.
Test Flame
Verify that flame characteristics are as shown in Figure 4
“
Checking Flame Characteristics ”. If flame characteristics
are not consistent with those in the graphic above, adjust
the flame as described below. Otherwise, continue to “Test
Bake Burner”.
Adjust Broil Flame (if necessary)
Adjust the air shutter to alter the flame characteristics. The
air shutter is located on the back end of the broil burner.
1. Loosen screw and turn shutter. Close the shutter if the
flame is lifting or blowing or not carrying over; open the
shutter if it is too yellow. (See Figure 5). Tighten screw.
Test Bake Burner
Test Ignition
Set the oven to bake at 350° F (176.67°C). After 30-75
seconds, the burner will ignite. The burner will stay lit until
the 350° F (176.67°C) is reached and then shut off. From
this point forward, the burner will cycle on and off to
maintain the temperature.

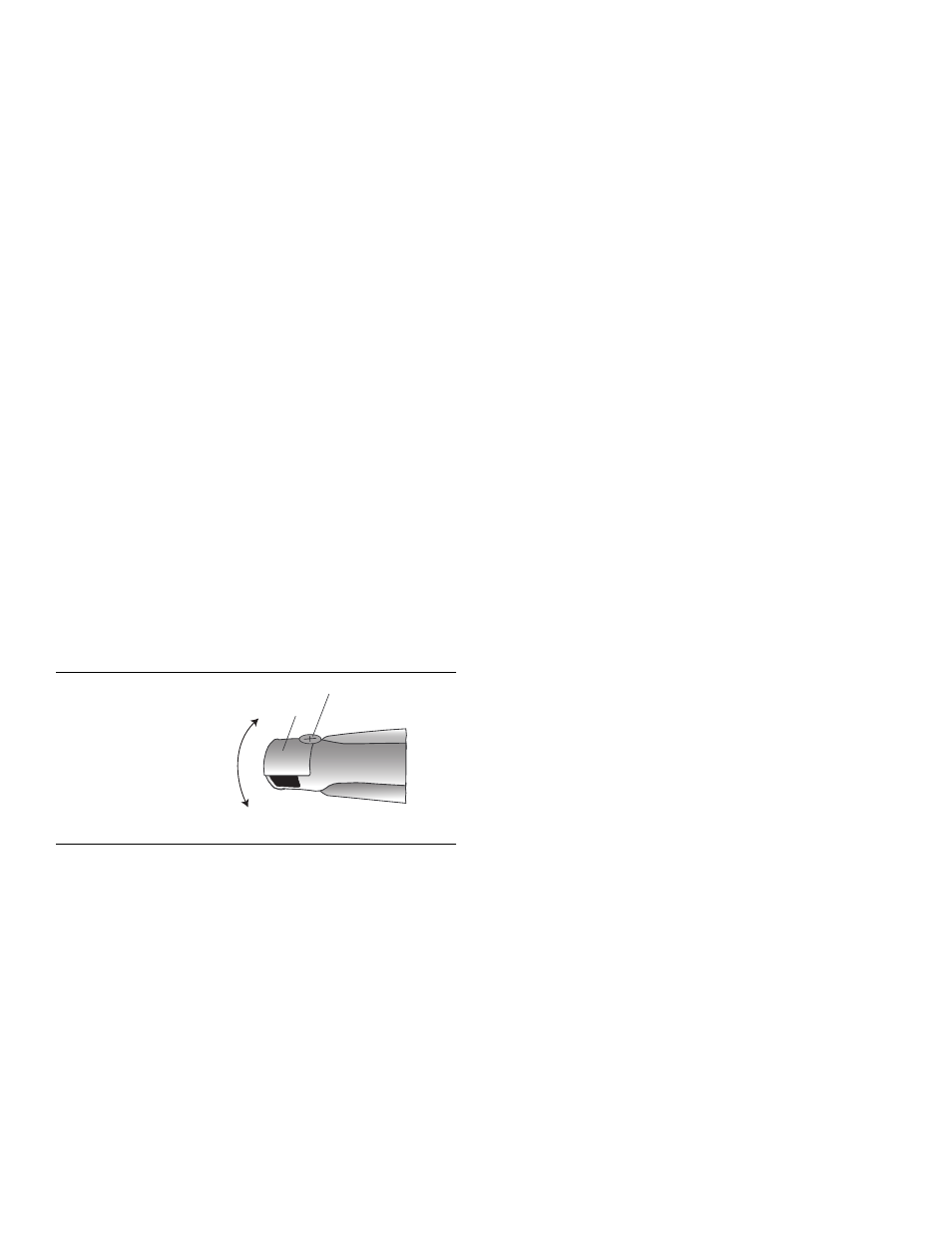

Figure 5: Broil Air Shutter Adjustment
Air
Shutter
Screw
More Open:
Less Yellow Flame
More Closed:
Less Blue Flame
More Carryover
Less Lifting or Blowing
