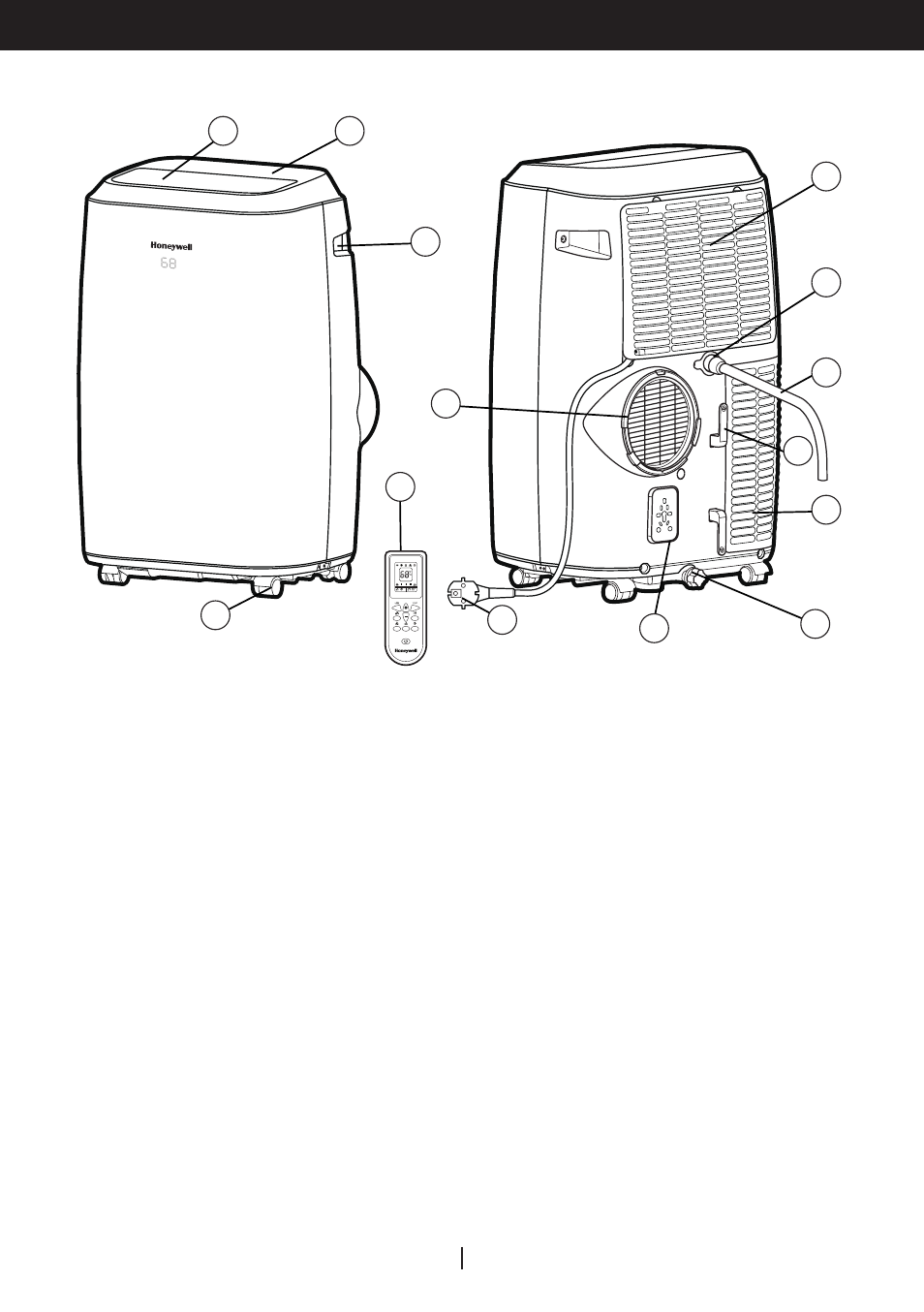

PARTS DESCRIPTION
EN
1) Louver 8) Upper Rubber Drain Plug
(Dehumidifying Mode)
2) Control panel 9) Drain Tube
(For Continuous Drain)
3) Handle 10) Power Cord Winder
4) Casters 11) Lower Dust Filter
5) Remote Control 12) Lower Rubber Drain Plug
(Air Conditioning / Heating Mode*)
6) Hose Connector 13) Storage Plug for Power Cord
7) Upper Dust Filter 14) Power Supply Cord
1 2
3
5
4
7
9
10
11
12
13
14
6
8
*Applicable for models with Heating feature only.
