6

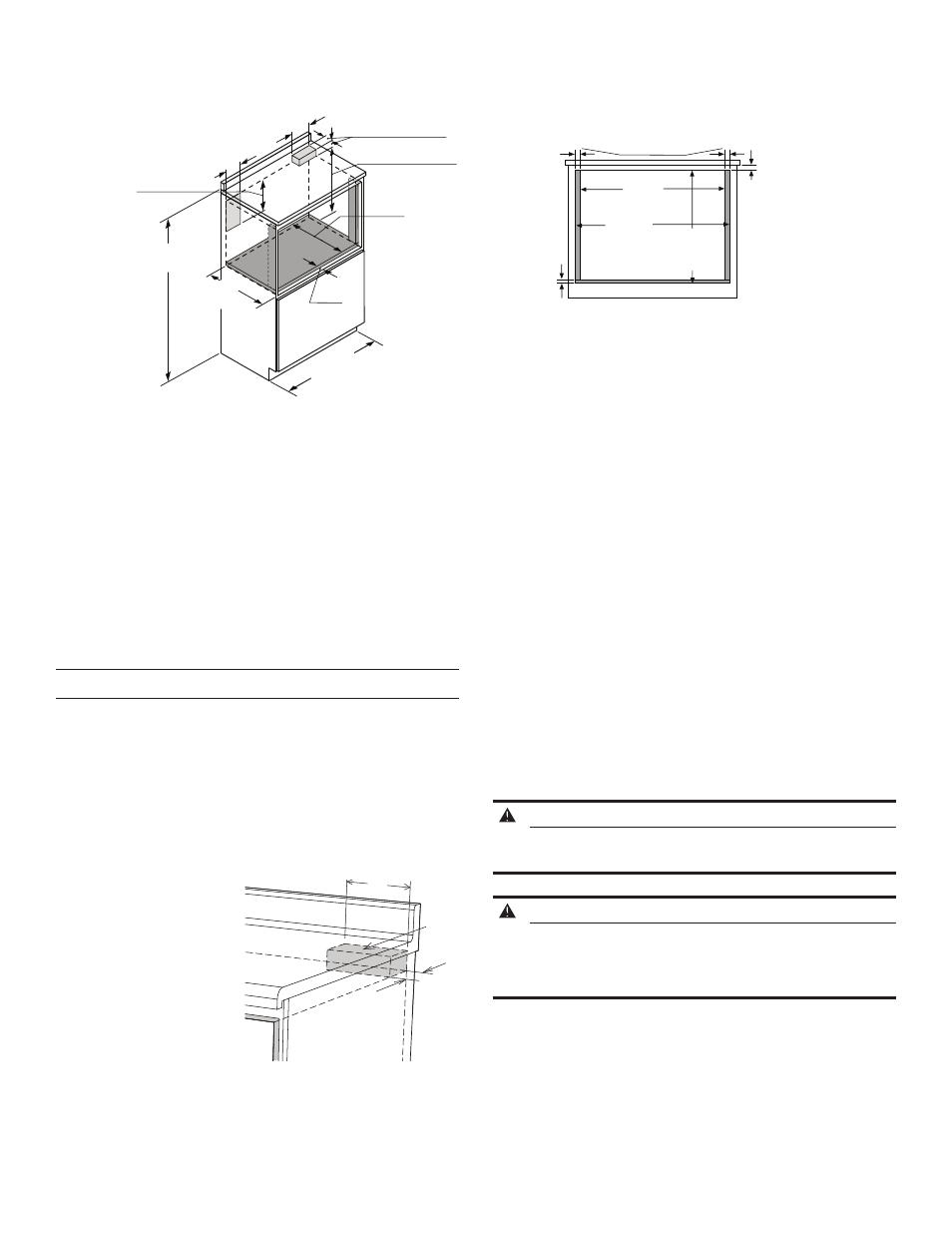

Flush Installation Dimensions and Clearances
Figure 4
Figures 2, 3 and 4 contain many Microwave Built-in
Drawer measurements for reference when planning the
drawer’s location.
This Microwave Built-in Drawer can be installed below any
electric or gas wall oven.
NOTICE: Always allow sufficient power cord length to
the electrical outlet to prevent tension.
Always check electrical codes for requirements.
23 1 /
2
"
(597 mm)
21 7 /
8
"
(555 mm)
Base min.
depth
27"
(686 mm)
1"
(25 mm)
1"
(25 mm)
36"
(914 mm)
24 3 /
16
"
(614 mm)
22 1 /
8
"
(562 mm)
Frontview cut out
Cleat
14 5 /
8
" (371 mm)
16 5 /
8
"
(422 mm)
cutout
6" (152 mm)
4" (102 mm)
5" (127 mm)
2 1 /
4
" (57 mm)
1 5 /
8
"
(41 mm)
1 /
2
"
(13 mm)
visible
area
1 /
4
"
(6 mm)
base
thickness
* Suggested location of electrical outlet
** Anti-Tip Block
*** Base should support up to 100 lbs
**** Sides should be finished and extend back to cleat.
Cleats should also be finished, as they may be
visible after installation.
(Cleats are not included with unit.)
*
**
***
****
Anti-Tip Block
Normal Installation Steps
Anti-Tip Block Installation Instructions
The anti-tip block reduces the risk of drawer tipping
when installed properly. Install the anti-tip block
14 13/16 inches above the installation opening floor
(where the unit will sit) for a standard installation or
14 5/8 inches for a flush
installation. The 6 -inch
Anti-Tip block must be
provided by the installer.
See Figure 3 (standard
installation) or Figure 4
(flush installation) and
Figure 5. The Anti-Tip
block prevents serious
injury that might result
from spilled hot liquids.
Figure 5
4"
5"
Suggested electrical
outlet location*
Anti-Tip
block
6"
3 1 / 2 "
If the Microwave Built-in Drawer is ever moved to a differ-
ent location, the Anti-Tip block must also be moved and
installed. If the anti-tip block is to be anchored to the
wall make certain that the screws holding it penetrate
into the structural members (studs) behind any covering
such as drywall.
CAUTION
Make sure that the screws do not contact any wiring or
plumbing that may be present in the wall.
WARNING
The unit can tip and cause spills and potential
burns or other injuries if the anti-tip block is not
installed correctly.
