Contacting Bosch
Customer Support
The Bosch Customer Support Team is available to help
and can be reached at 800-944-2904.
Before calling for assistance...
1. Refer to the Use and Care Manual for additional product
information.
2. Have the complete model number and FD number avail-
able; this information can be found on the name plate.
Open the drawer fully. The name plate is beyond the back
wall of the Drawer Microwave cavity facing up from the flat
surface.
Drawer Installation
1. Place the drawer adjacent to the wall or cabinet open-
ing. Plug the power supply cord into the electrical
outlet.
2. Carefully guide the drawer into the prepared opening.
Avoid pinching the cord between the oven and the wall.
3. Slide the drawer all the way until the mounting flange
makes contact with the face of the cabinet for standard
installation or side cleats for flush installation. See
Figure 7A.
4. Open the drawer. Using the 4 holes on the drawer as
a template, pre drill the cabinet using a 1 / 16 " bit. See
Figure 7A.
5. Secure the drawer with the 4 screws supplied. See
Figure 7B.
6. Test operation to confirm that the Drawer Microwave is
functioning properly and the drawer opens and closes
freely.

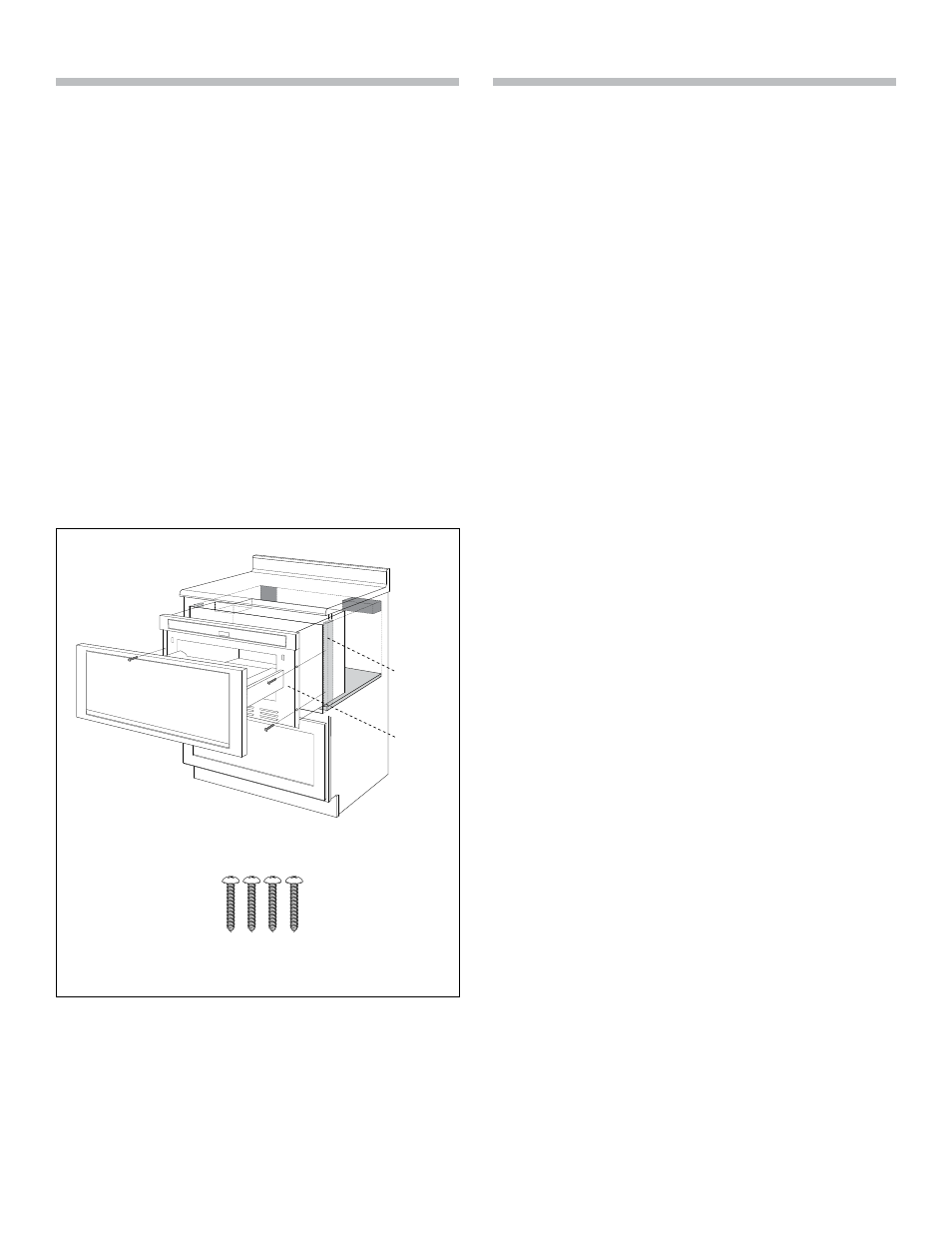

4 Screws
Parts supplied
Figure 7B
Mounting
flange
Figure 7A
Cleat
