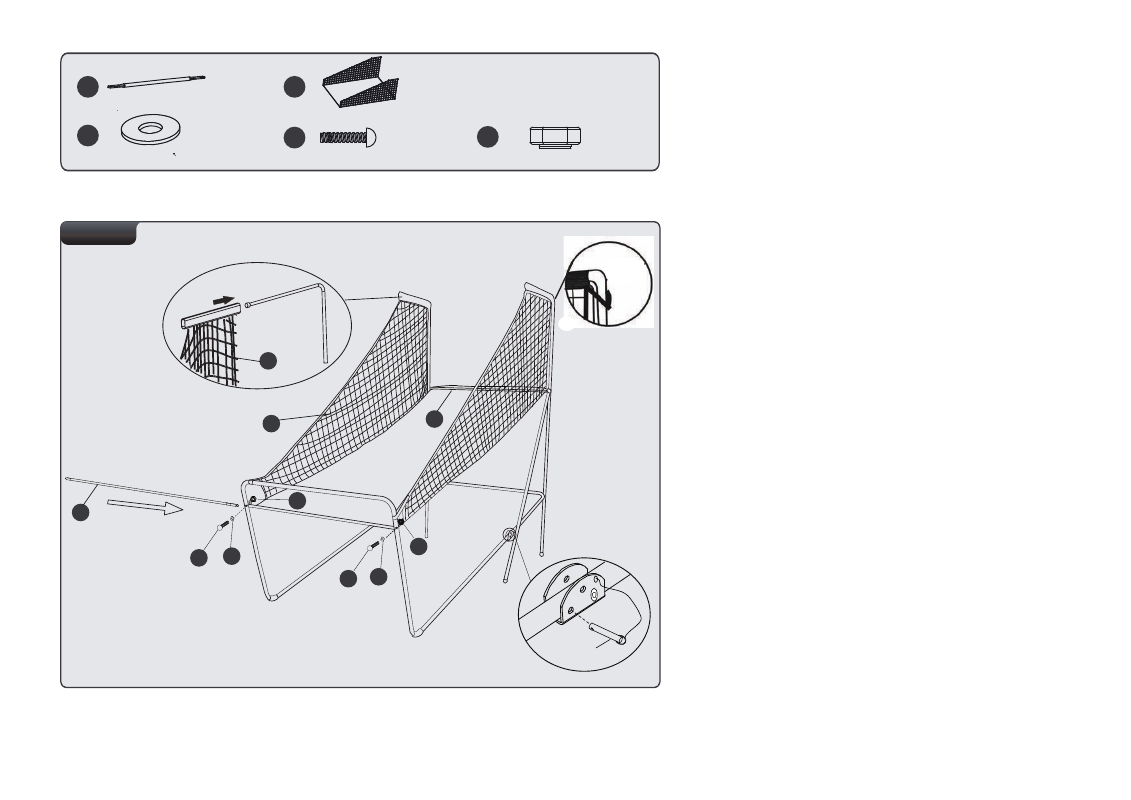

FIG.10
13. Slide elastic straps and sleeve of Ball Return Net(#13) onto
Board L Tubes.
14. Slide the Horizontal Tube(#12) through the sleeve on the
front of the Ball Return Net(#13), attach at the left side first
using Bolts(#24), Washers(#22) and Nuts(#27). Follow the
same procedure on the right side.
11
12
24 22
27
24 22
27
12
13
13
x2 x4 22 24 x2 27
x1 12 x1 13
FIG. 10
Lock Pin
