6.0 Preparation
Before proceeding with the installation, remove the carton lid,
unpack the contents carefully and check against the checklist
below:
1. Heater/Cooler unit (chassis)
2. Outer casing
3. Warranty card
4. Instruction manual
5. Fixing kit
Check contents for concealed shipping damage.
Tools required:
Manua
l
Warrant
y
Grill
Grill hinge
Outer casing
Filter
Side cover
Control panel
Chassis
1
2
3
5
4

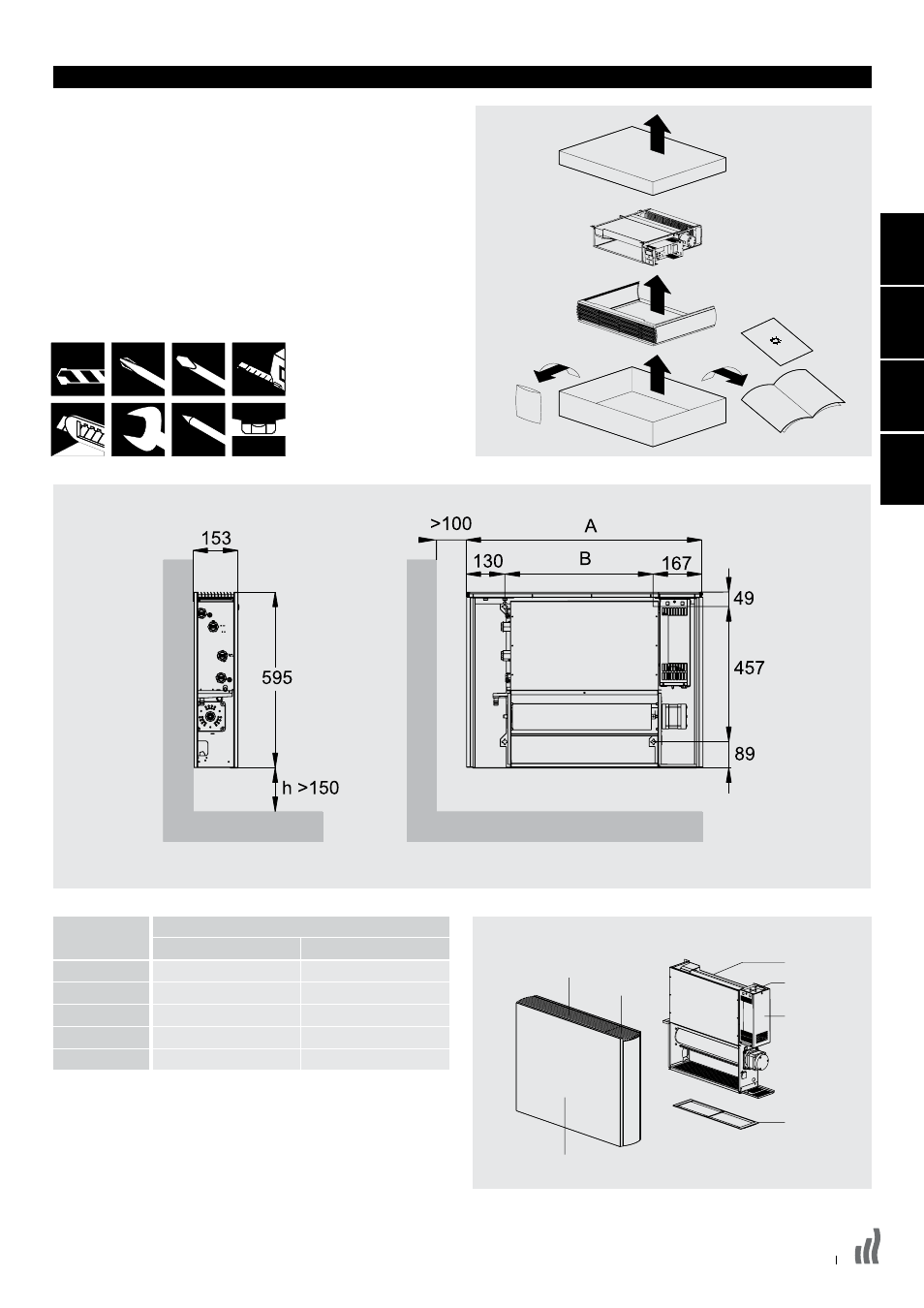

Mounting dimensions Dimensions (mm)
Model
Dimensions (mm)
600x800 800 503
600x1000 1000 703
600x1200 1200 903
600x1400 1400 1103
600x1600 1600 1303
A B
3.0
4.0
5.0
6.0
