2-2 interface parallèle (ieee1284), Srp-275ii, Rev. 1.04 – BIXOLON SRP-275II Manuel d'utilisation
Page 12
Rev. 1.04
- 12 -
SRP-275II

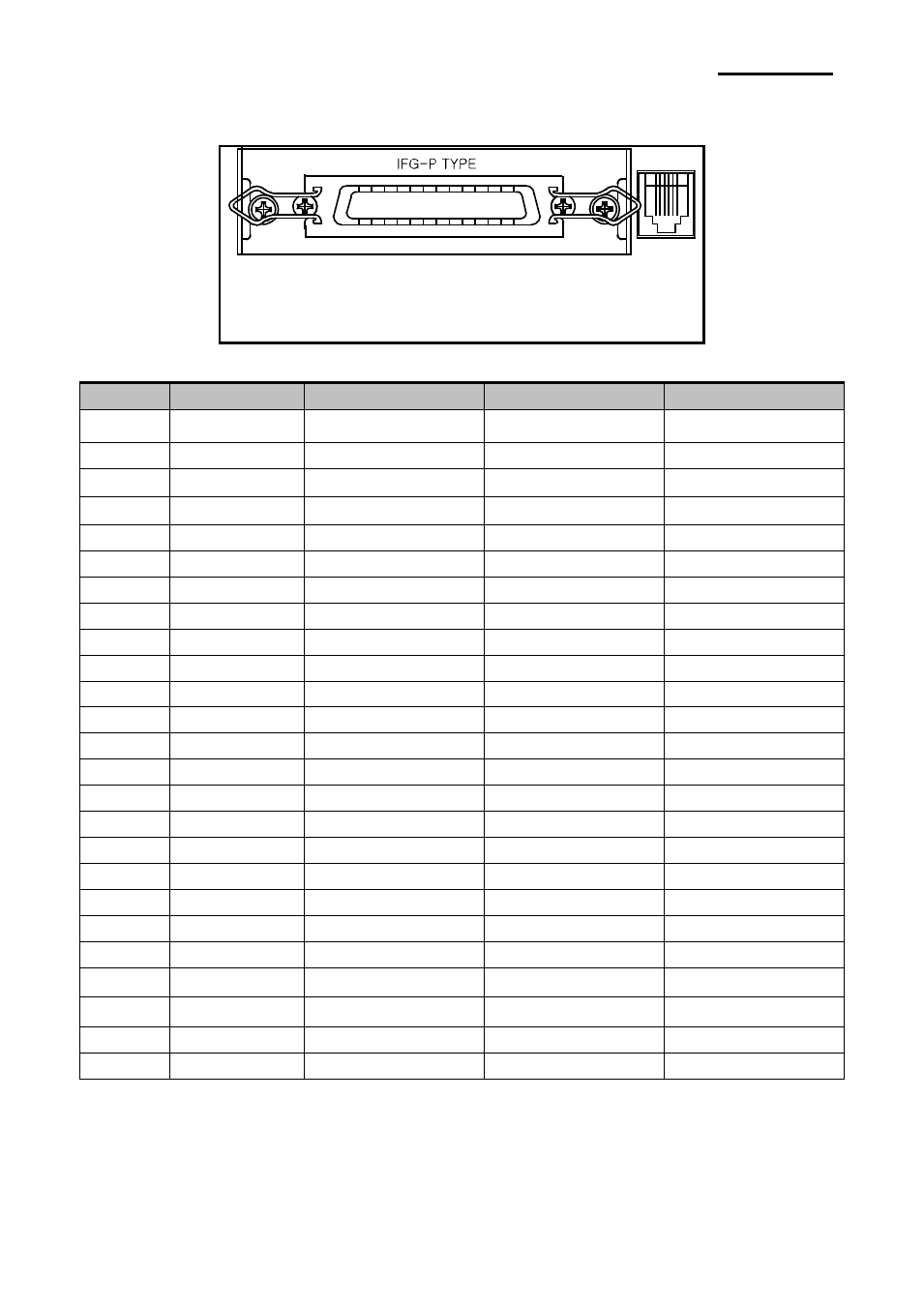

2-2-2 Interface parallèle (IEEE1284)
Connecteur d’interface
Connecteur du
dispositif
d’ouverture du
tiroir-caisse
Pin no.
Source
Compatibility mode
Nibble mode
Byte mode
1
Host
nStrobe
HostClk
HostClk
2
Host / Printer
Data 0 (LSB)
-
Data 0 (LSB)
3
Host / Printer
Data 1
-
Data 1
4
Host / Printer
Data 2
-
Data 2
5
Host / Printer
Data 3
-
Data 3
6
Host / Printer
Data 4
-
Data 4
7
Host / Printer
Data 5
-
Data 5
8
Host / Printer
Data 6
-
Data 6
9
Host / Printer
Data 7 (MSB)
-
Data 7 (MSB)
10
Printer
nAck
PtrClk
PtrClk
11
Printer
Busy
PtrBusy / Data3,7
PtrBusy
12
Printer
Perror
AckDataReq / Data2,6
AckDataReq
13
Printer
Select
Xflag / Data1,5
Xflag
14
Host
nAutoFd
HostBusy
HostBusy
15
-
NC
ND
ND
16
-
GND
GND
GND
17
-
GND
FG
FG
18
Printer
Logic-H
Logic-H
Logic-H
19~30
-
GND
GND
GND
31
Host
nInit
nInit
nInit
32
Printer
nFault
nDataAbail /
nDataAvail
33
-
NC
ND
ND
34
Printer
NC
ND
ND
35
Printer
NC
ND
ND
36
Host
nSelectln
1284-Active
1284-Active
