6. PLACING THE GREASE CUP
Parts Required:
1 x Grease Cup Support (#3)
1 x Grease Cup (#4)
2 x Screw (#A)
Installation:

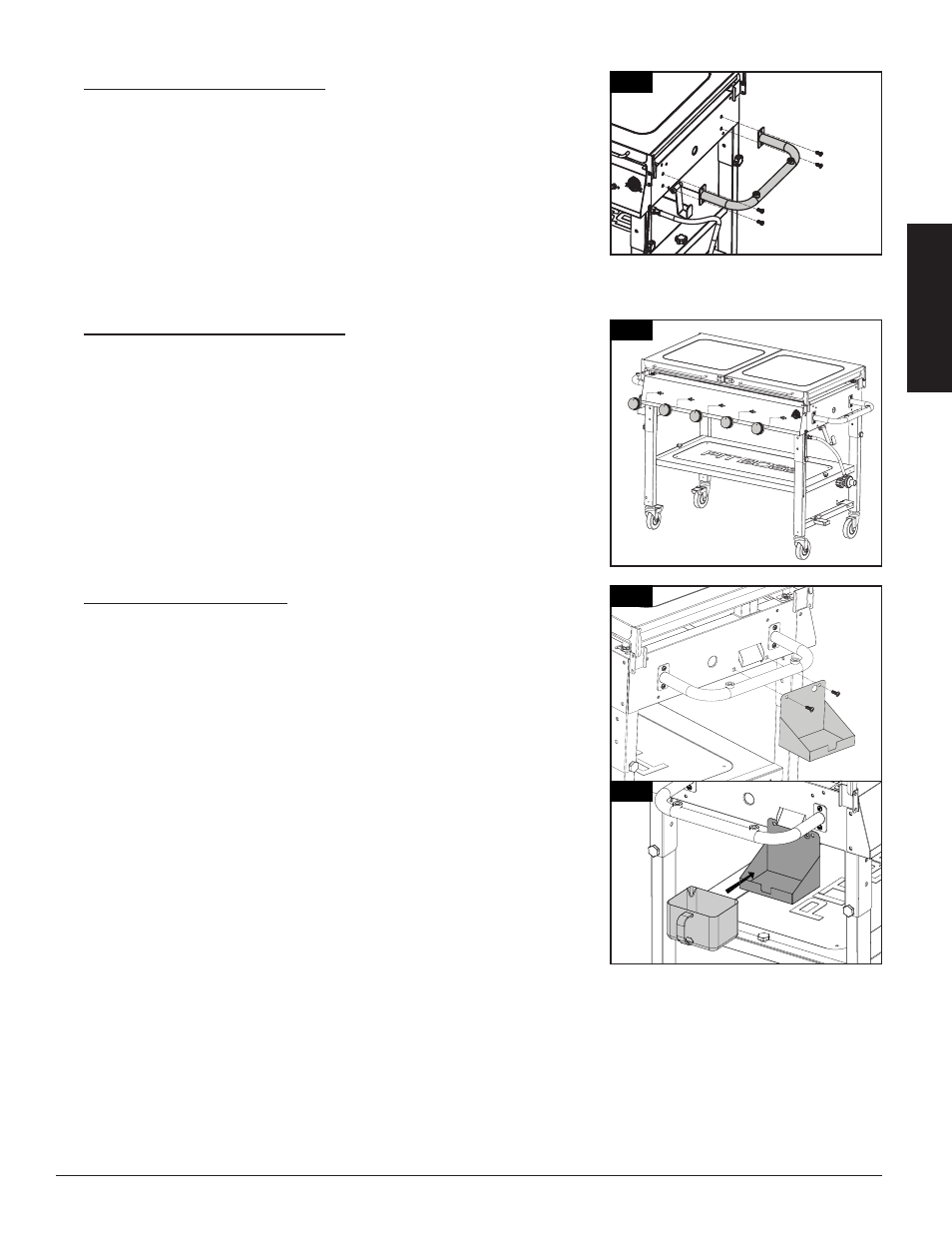

• First, mount the Grease Cup Support to the left side panel of the
Firebox using two screws. Note illustration 6A.
• Place the Grease Cup onto the Grease Cup Support, as shown in
illustration 6B.
4. MOUNTING THE SIDE HANDLES
Parts Required:
2 x Side Handle (#2)
8 x Screw (#A)
Installation:
• Mount one Side Handle to the left side of the Firebox using four
screws.
• Repeat same installation of other Side Handle on the right side of the
Firebox.
5. MOUNTING THE CONTROL KNOBS
Parts Required:
5 x Control Knob (#5)
Installation:
• Mount each Control Knob to the front panel of the unit.
