Pit Boss 77 Inch Portable Gas Griddle Assembly Guide Manuel d'utilisation
Page 2
ENGLISH
2
COPYRIGHT NOTICE
Copyright 2021. All right reserved. No part of this manual
may be copied, transmitted, transcribed, stored in a retrieval
system, in any form or by any means without expressed
written permission of,
Dansons
3411 North 5th Avenue, Suite 500, Phoenix, AZ, USA 85013
[email protected] | [email protected]
www.pitboss-grills.com
Customer Service
Monday through Sunday, 4am - 8pm PST (EN/FR/ES)
Toll-Free: 1-877-303-3134, Fax: 1-877-303-3135
TABLE OF CONTENTS
Parts & Specs ...................................................................... 2
Assembly Preparation ...................................................... 3
Assembly Instructions
Preparing The Cart .......................................................................3
Expanding The Cart .....................................................................4
Securing The Cart .........................................................................4
Mounting The Side Handles ......................................................5
Mounting The Control Knobs ....................................................5
Placing The Grease Cup ...............................................................5
Expanding The Side Shelves ......................................................6
Set-Up For Gas Cylinder ..............................................................6

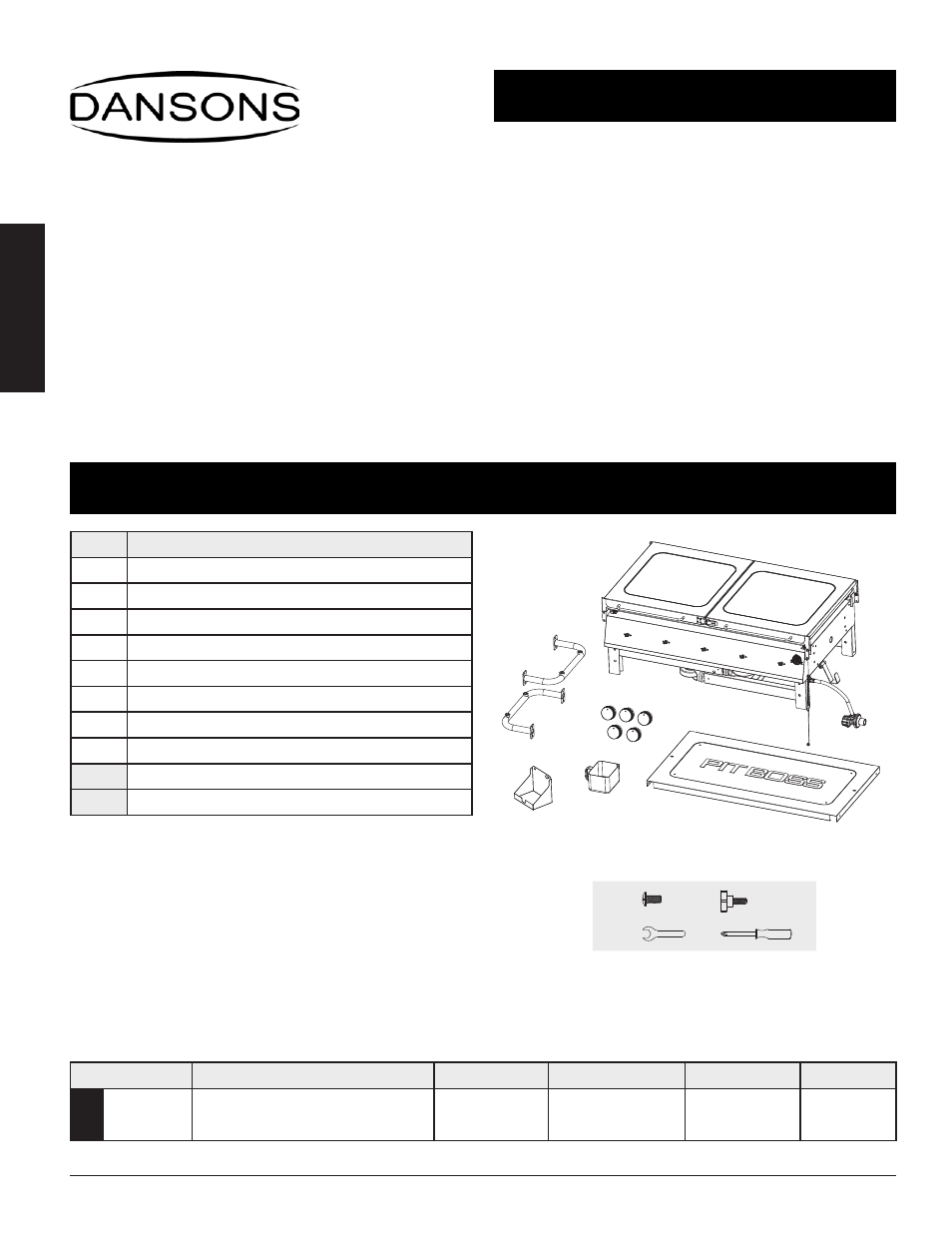

PARTS & SPECS
MODEL
ASSEMBLED (WxDxH)
WEIGHT
COOKING AREA
RANGE
BTU
PB
PB5BGD
1,960 mm x 615 mm x 895 mm
/ 77.1 in x 24.2 in x 35.2 in
54.5 kg
/ 120.1 lb
4,859 cm²
/ 753.1 sq. in.
104-260°C
/ 220-500°F
62,000
Part# Description
1
Fire Box (x1)
2
Side Handle (x2)
3
Grease Cup Support (x1)
4
Grease Cup (x1)
5
Control Knob (x5)
6
Bottom Shelf (x1)
A
Screw (x10)
B
Bolt (x6)
Wrench (x1)
Screwdriver (x1)
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Service if parts are missing when assembling the unit.
1
2
4
3
A
B
5
6
