• Close the side shelves. Lock the front latch. Note illustration 3C.
3. SECURING THE CART
Parts Required:
6 x Bolt (#B)
1 x Bottom Shelf (#6)
Installation:
• Secure the cart legs into expanded position using four bolts, one for
each leg. Secure the Bottom Shelf to the Cart using two bolts. Note
illustration 3A.
2. EXPANDING THE CART
Installation:
• Lay the Fire Box on its side with the control knob pins on the top.
• Unlock the cart of the griddle by pulling back on the locking system
pins near the wheel. Expand the legs completely.
• Once the Bottom Shelf is secure, carefully raise the unit into an upright
position with the wheels on the bottom. Replace the Hot Plate onto
the top of the Fire Box. Note illustration 3B.
2

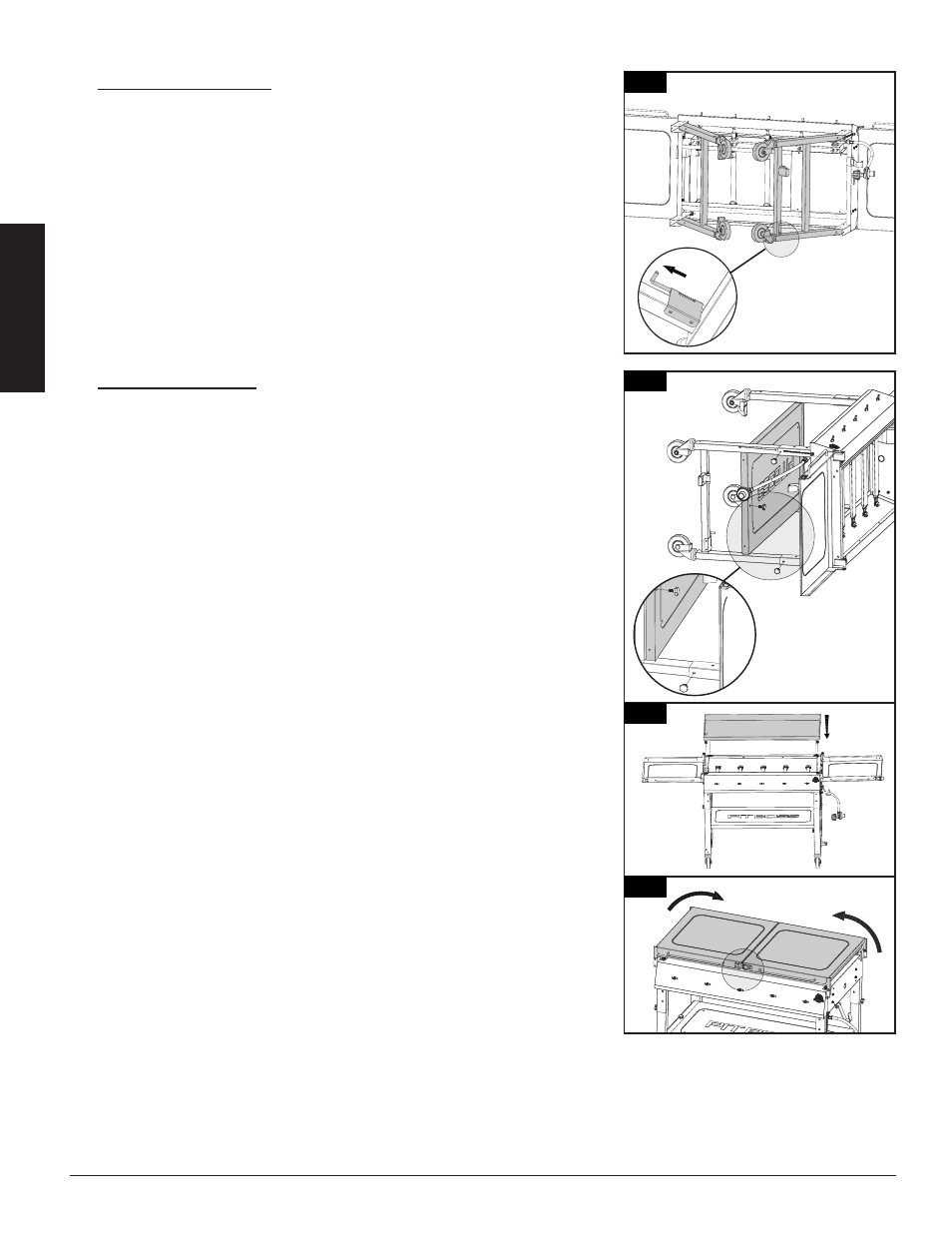

3B
3C
3A
6
