DIMENSION GUIDE
3 of 15
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All appliances are appropriately UL, CUL or CSA approved.

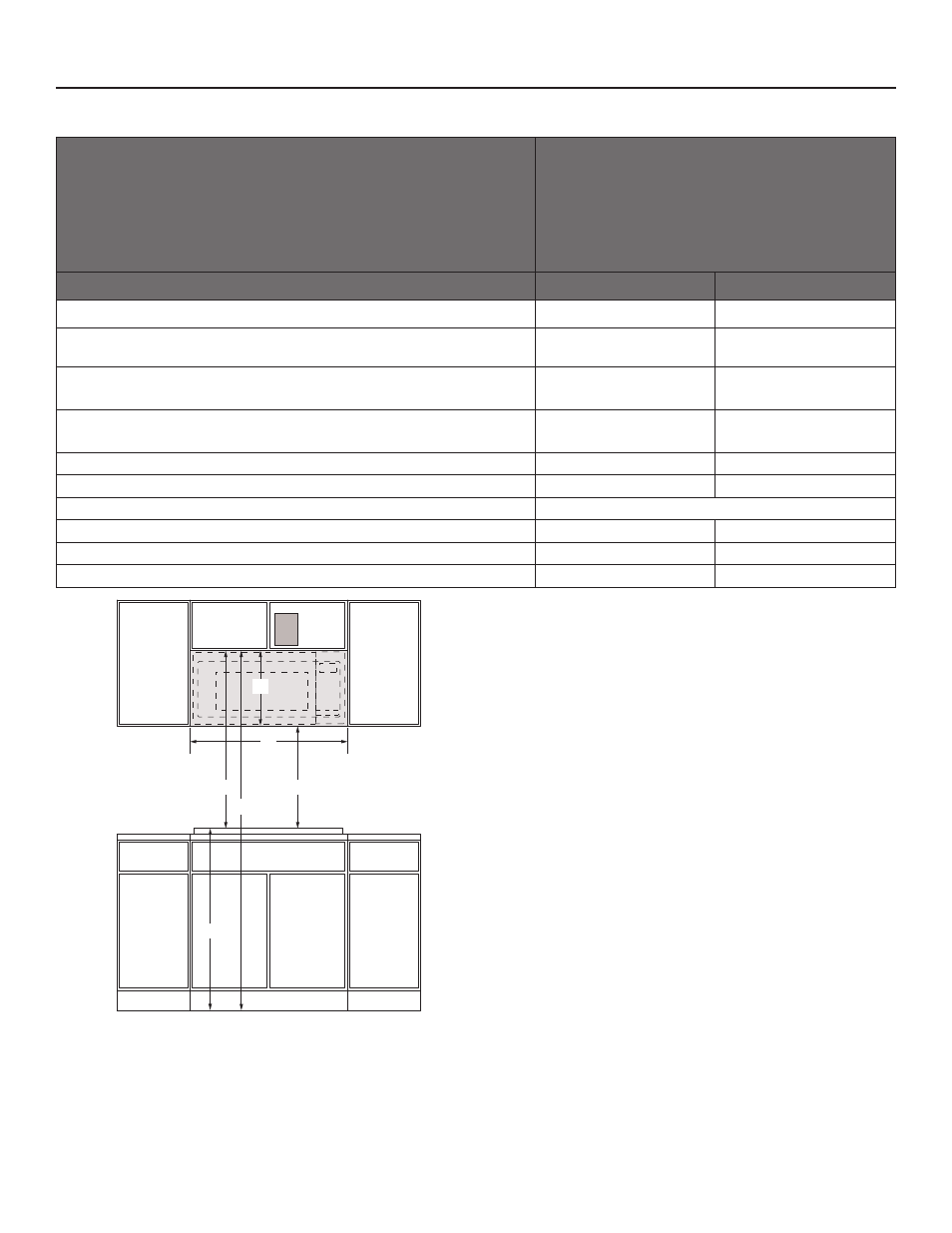

MICROWAVE OVEN
FRONT VIEW
OPENING/CLEARANCE DIMENSIONS
ELECTRICAL REQUIREMENTS
120 V, 60 Hz AC only, 15 A or 20 A fused, electrical supply is
required. A time-delay fuse or dedicated circuit is recommended.
Do not use an extension cord.
LOCATION REQUIREMENTS
Support structure must be able to support 150 lb (68 kg) including
microwave oven and upper cabinet including contents.
Mounting plate must attach to a minimum of one
2
ʺ x 4 ʺ (5.1 cm x 10.2 cm) wall stud.
Mounting distance between a fixed wall on the higed-side of the
door and the microwave oven is 5 ʺ (12.7 cm).
VENTING REQUIREMENTS
The microwave oven is factory set for recirculating ventilation. To
vent through the roof or wall, refer to installation instructions for
further information.
MODEL #
WMMF5930P/YWMMF5930P/MMMF6030P
YMMMF6030P/KMMF330P/YKMMF330P
WMMF7330R/YWMMF7330R/WMMF7530R
MMMF8030P/YMMMF8030P/KMMF530P
YKMMF530P/KMMF730P/YKMMF730P
JMHF730R/YJMHF730R/JMHF930R
JMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS in cm
Width of cabinet opening (minimum) (A) 30 76.2
Typical height from cooking surface to floor based on 36 ʺ (91.4 cm)
countertops. (B)
36 91.4
Typical height from top of cabinet to cooking surface based on
36" (91.4 cm) countertops. (C)
30 76.2
Recommened height from top of cabinet to cooking surface based on
36"
(91.4 cm) countertops. (C)
36 91.4
Minimum height from floor to top of cabinet opening. (B + C = D). (D) 66 167.6
Recommended height from floor to top of cabinet opening (B + C = D). (D) 72 183
Recommended electrical connection location. (E) See below schematic
Minimum height from floor to bottom of the microwave oven (F) 12 1 /
8
30.8
Recommended height from floor to bottom of the microwave oven (F) 18 1 /
8
46
Minimum height of Flat back surface (G) 18 45.8
E
A
C
G
F
B
D
