DIMENSION GUIDE
1 of 15
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All appliances are appropriately UL, CUL or CSA approved.
MICROWAVE OVEN
W11640273B

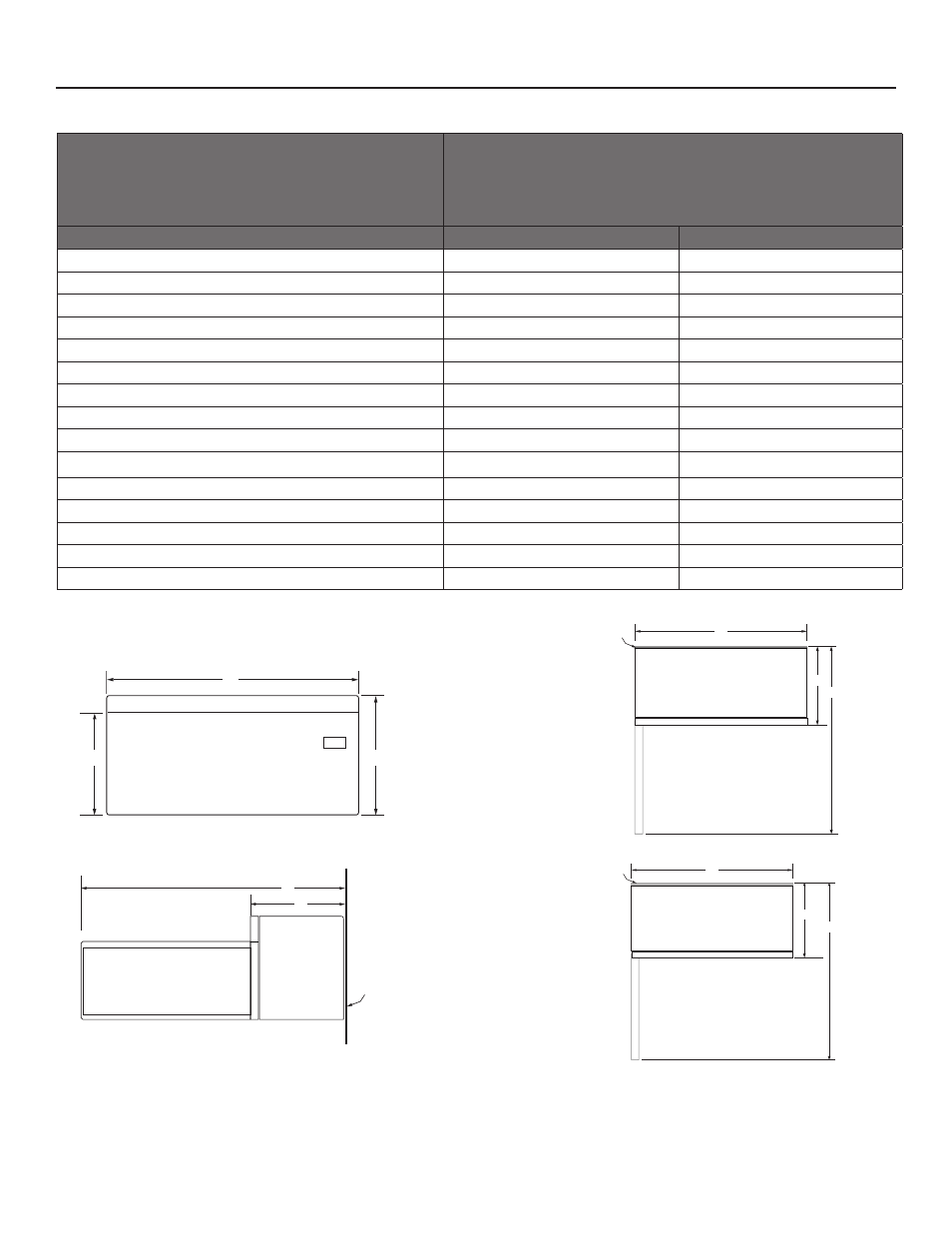

PRODUCT DIMENSIONS
MODEL #
WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030P/
KMMF330P/YKMMF330P/WMMF7330R/YWMMF7330R/
WMMF7530R/MMMF8030P/YMMMF8030P/KMMF530P/
YKMMF530P/KMMF730P/YKMMF730P/JMHF730R/
YJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Overall Width (A) 30 76
Overall Height (B) 17 7 /
8
45.4
Height of the door (C) 15 38.2
Depth with door (D) 123/4 32.4
Depth with door open 90° (E) 41.4 105.3
Depth with door with Bump Out Kit (L hook) (F1) 13.8 35.0
Depth with door with Bump Out Kit (M hook) (F2) 14.3 36.3
Depth with door with Bump Out Kit (N hook) (F3) 14.8 37.6
Depth with door with Bump Out Kit (P hook) (F4) 15.3 38.9
Depth with door with Bump Out Kit (R hook) (F5) 15.8 40.2
Depth with door open 90° with Bump Out Kit (L hook) (G1) 42.5 107.8
Depth with door open 90° with Bump Out Kit (M hook) (G2) 43.0 109.1
Depth with door open 90° with Bump Out Kit (N hook) (G3) 43.5 110.4
Depth with door open 90° with Bump Out Kit (P hook) (G4) 44.0 111.7
Depth with door open 90° with Bump Out Kit (R hook) (G5) 44.5 113.0
TOP VIEW
SIDE VIEW
TOP VIEW WITH BUMP OUT KIT
FRONT VIEW
A
D
E
Mounting
Plate
E
D
Back of
Cabinet
A Bump Out
Kit
G1~5
F1~5
A
B C
