14

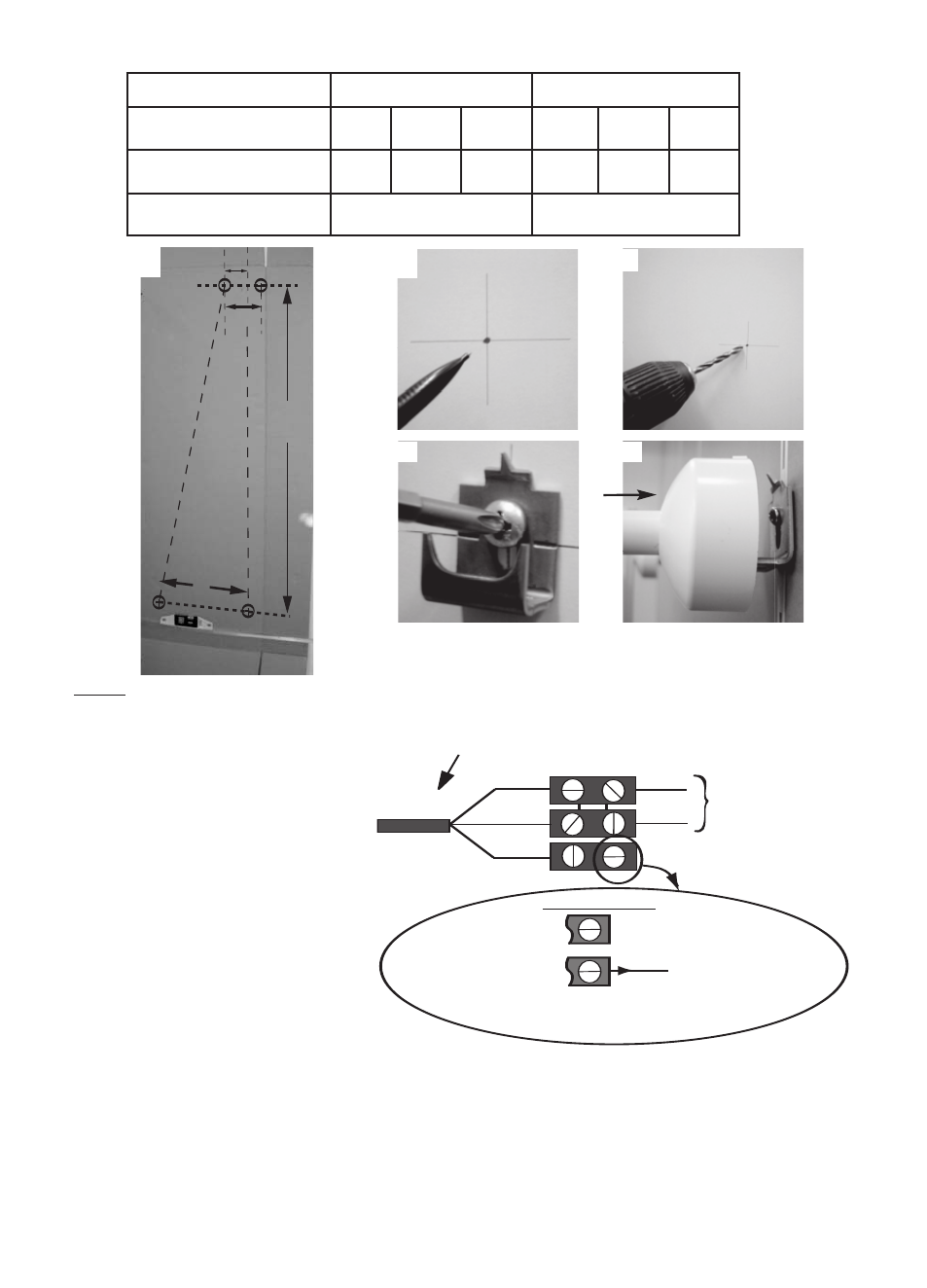

3) Connecting the device
- The device must be supplied with
230V, 50Hz.
- Mains connection must be ensured
using the 3-wire cable factory fitte
to the heater , through a connecting
box. In damp premises, such as
bathrooms and kitchens, install the
connecting box at least 25cm from
the ground.
- The installation must be equipped
with a shutting-off device in all poles
having a distance of opening of
contact of at least 3mm.
- Ground connection is forbidden.
Do not connect the pilot wire of the device (black) to the earth.
- If power cable is damaged or too short, to avoid any danger it must be replaced by a qualified elec-
trician using special tools.
- If a device pilots or is piloted by a 30mA differential (e.g. bathroom), the pilot wire supply must be
protected on this differential.
Panel heater cable
Live=brown
Neutral=blue
LIVE
NEUTRAL
Electricity
grid
Two possible cases
Pilot wire=Black
1st case: only one heater
2nd case: multiple heaters
The pilot wire end is insulated
and not further connected
The pilot wire of all heaters in a
control group, up to a maximum
of 20 units with any one them used
as the Master, are connected
by a 1.0mm
2 220-240V insulated cable
Note: The pins supplied with the device are of the standard type. In case of a particular stand, use
appropriate pins.
2
4 5
3
A
B
60
41 1
MODEL STANDARD
MODEL WITH FAN AND
FANCOMBINATION
Power (W) 500 750 1000
500
+1000
750
+1000
1000
+1000
Measurement (A)
for fitting lugs (mm)
814 1114 1414 814 1114 1414
Measurement (B)
for fitting lugs (mm)
447,5 447,5
