Chapter 4 : LCD SCREEN DESCRIPTION
4-1. INTRODUCTION
The LCD screen is composed of 2 modes: the STATUS MODE and the CONTROL MODE.
• The STATUS MODE indicates the input and output status of the OCTO-QUATTRO ™ .
• The CONTROL MODE allows selecting and adjusting the parameters of the OCTO-QUATTRO ™ .
4-2. CONTROL BUTTONS
The LCD screen is controlled by 2 buttons and 1 knob:
 knob: • In the STATUS MODE, turns this knob to adjust the Master volume.
• In the CONTROL MODE, turn this knob to scroll thru the different menus.
EXIT / MENU button: • In the STATUS MODE, press this button to display the CONTROL MODE.
• In the CONTROL MODE, press this button to:
- return to the previous menu without safeguarding the selection.
- return to the STATUS MODE (press several times).
ENTER button: • From the STATUS MODE, press this button to display the CONTROL MODE.
• From the CONTROL MODE, press this button to confirm a selected item.
4-3. STATUS MODE

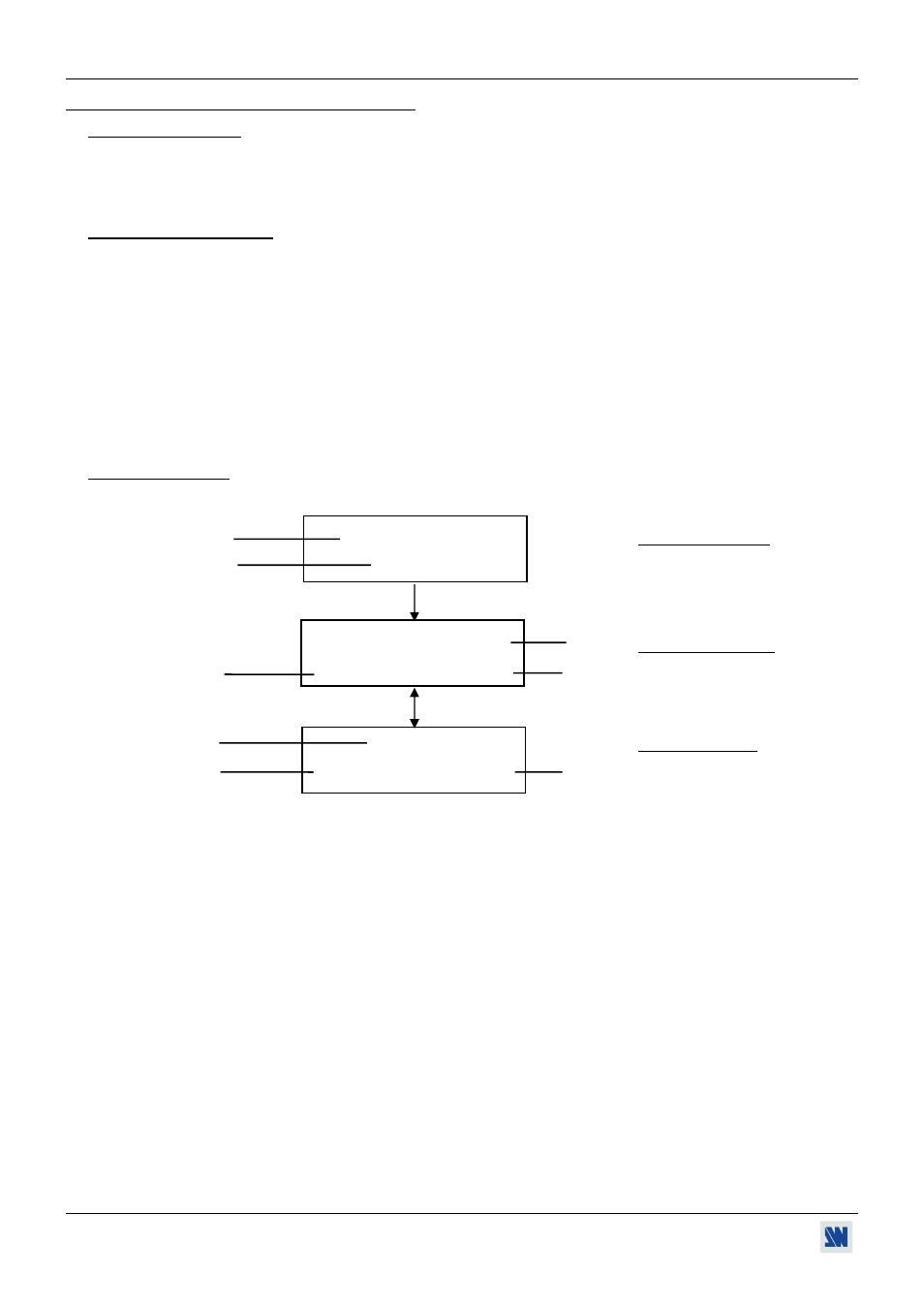

When switching ON, the LCD SCREEN shows the product's name and reference as follows:
DEVICE NAME OCTO-QUATTRO DEVICE STATUS
DEVICE VERSION Version _._
OUTPUT XGA d OUTPUT STATUS
c intern rate 60 Hz e
f INPUT # 1 INPUT STATUS
g SVGA 37.9 K / 60Hz h
c OUTPUT RATE.
d OUTPUT FORMAT.
e OUTPUT FRAME RATE.
f SELECTED INPUT (DISPLAYED).
g INPUT FORMAT OR INPUT STANDARD.
h INPUT LINE / FRAME FREQUENCY.
