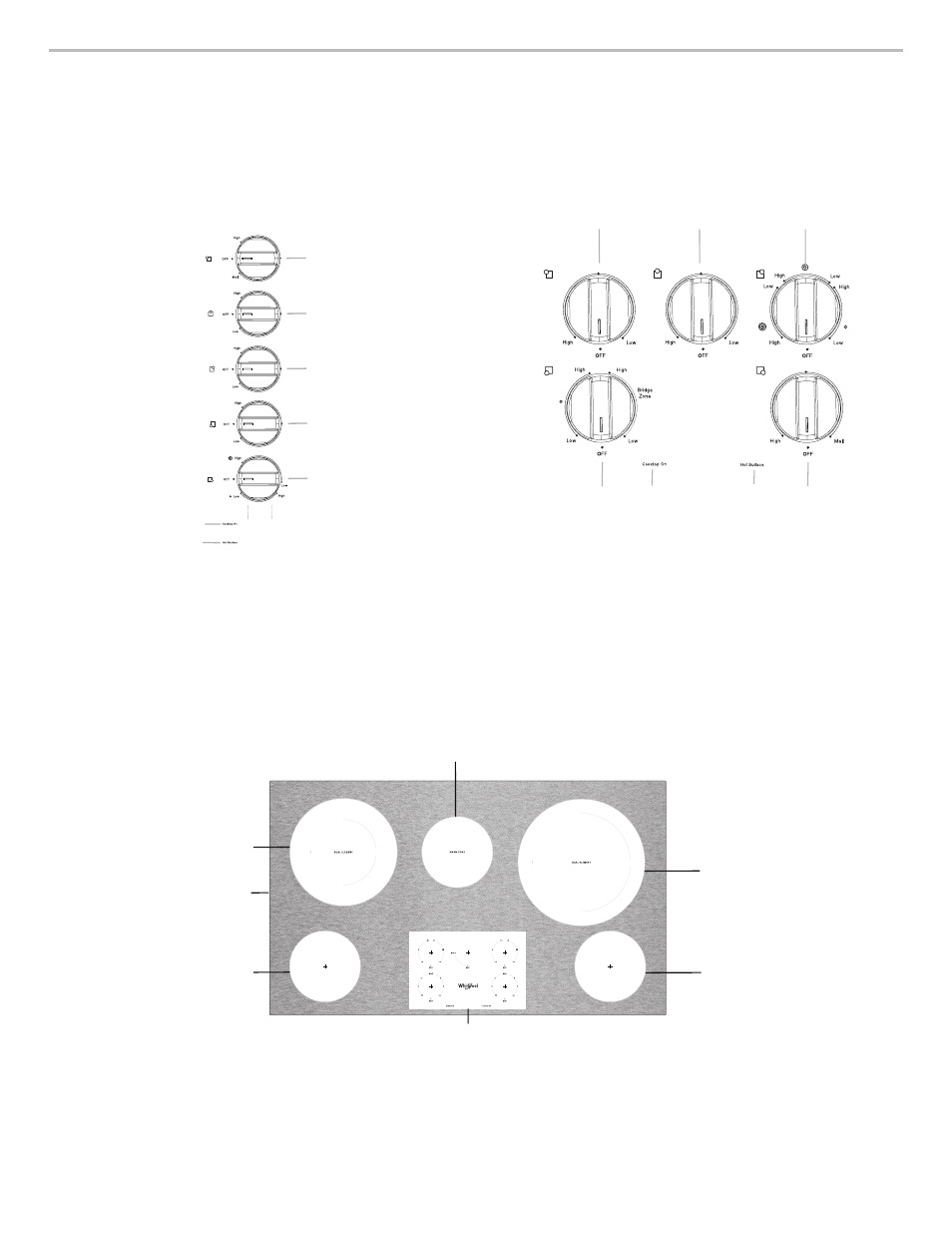

PARTS AND FEATURES - KNOB CONTROLS
This manual covers different models. The cooktop you have purchased may have some or all of the items listed. The locations and
appearances of the features shown here may not match those of your model.
Control Panels
WCE55US4H (24"[60.96 cm])
WCE55US0H (30"[76.2 cm])
WCE77US0H (30"[76.2 cm])
WCE55US6H (36" [91.4 cm])
WCE77US6H (36" [91.4 cm])
A
B
C
D
E
F
G
A. Left rear control knob
B. Center rear control knob
C. Right rear control knob
D. Left front control knob E. Right front control knob (dual-
zone burner)
F. Hot surface indicator light
G. Cooktop on indicator light
D E F G
A B C
A. Left rear control knob
B. Center rear control knob
C. Right rear control knob
(with dual-size element)
D. Hot surface indicator light
E. Right front control knob
F. Cooktop on indicator light
G. Left front control knob (dual-size)
Cooktops
WCE55US6H (36" [91.4 cm])
WCE77US6H (36" [91.4 cm])
C
B
D
A
G E
F
A. Ceramic glass cooktop
B. Left rear surface cooking area
(with dual size element)
C. Center rear warming zone
D. Right rear surface cooking area
(with dual size element)
E. Right front single surface
cooking area
F. Control panel
G. Left front single surface cooking
area
Ceramic glass Cooktop
