Part# Description
1 Lid (x1)
2 Lid Support Rubber (x6)
3 Lid Support (x1)
4 Hot Plate (x1)
5 Hot Plate Leg Screws (x4)
6 Lid Handle Bezel (x2)
7 Lid Handle (x1)
8 Grease Run Out (x1)
9 P Burner (x1)
10 Right Burner (x1)
11 Lighting Rod Retaining Plate (x2)
12 Lighting Rod (x1)
13 Side shelf - Left (x1)
14 Firebox Assembly (x1)
15 Side Shelf - Right (x1)
16 Latch Hook (x2)
17 Grease Cup (x1)
18 Firebox Control Panel (x1)
19 Side Shelf Hook Panel (x2)
20 Side Shelf Rubber (x4)
21 Control Knob (x2)
22 Igniter Heat Shield (x1)
23 Igniter (x1)
24 Firebox Feet (x4)
25 Valve Assembly (x1)
26 Side Shelf Bracket - Left (x2)
27 Side Shelf Bracket - Right (x2)
28 Cart Side Panel - Left (x1)
29 Cart Back Panel (x1)
30 Cart Front Panel (x1)
31 Cart Side Panel - Right (x1)
32 Gas Cylinder Wire Retainer (x1)
33 Bottle Opener (x1)
34 Paper Towel Hook (x1)
35 Support Leg for Caster - Back (x1)
36 Support Leg for Caster - Front (x1)
37 Cart Bar A (x2)
38 Cart Bar B (x2)
39 Support Leg for Wheel - Front (x1)
40 Support Leg for Wheel - Back (x1)
41 Bottom Shelf (x1)
42 Locking Caster (x2)
43 Gas Cylinder Support Bracket (x1)
44 Wheel (x2)
NOTE: Due to ongoing product development, parts are subject to change without notice.

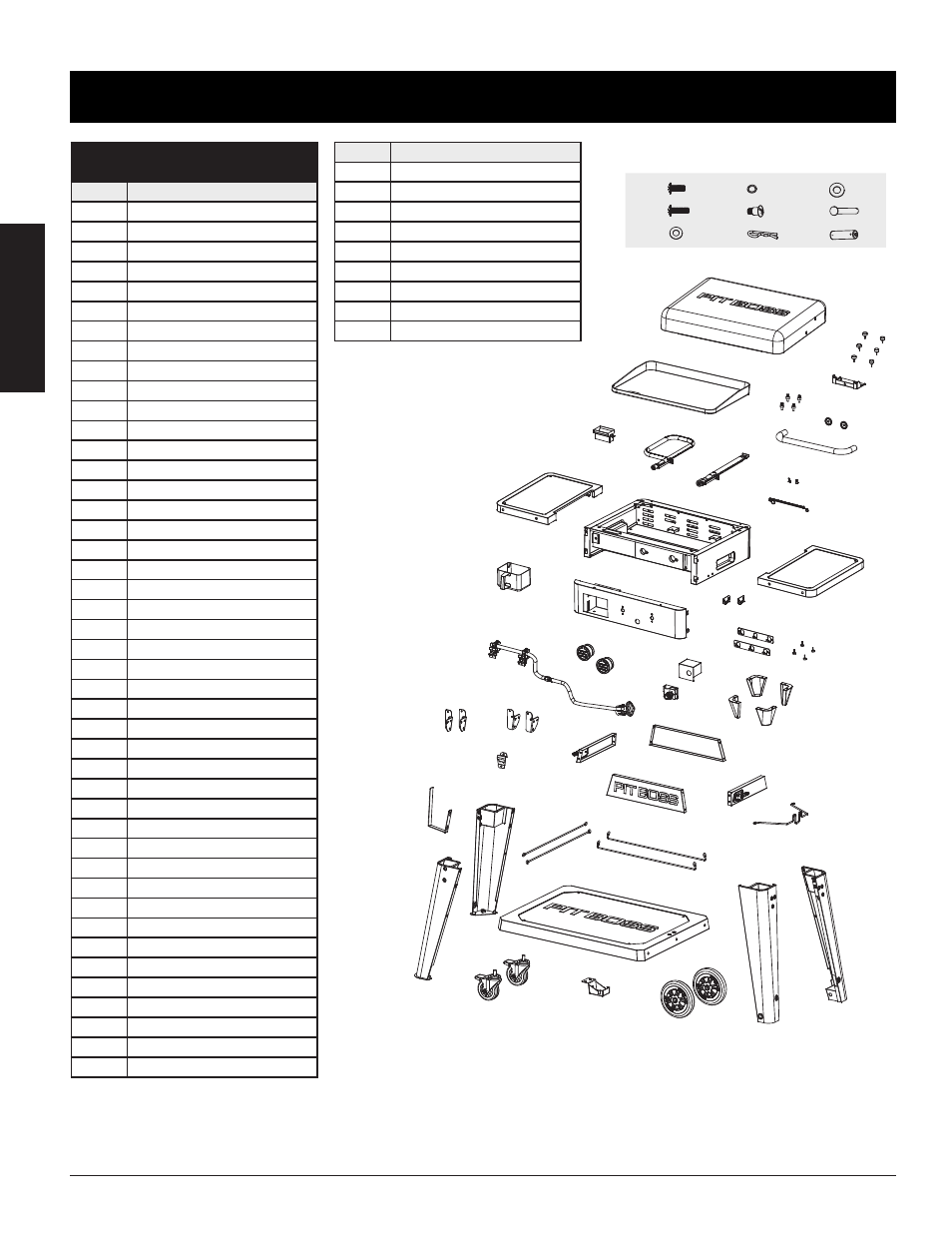

REPLACEMENT PARTS
28
31
32
34
35
36
37
38 39
40
41
42
43
44
1
2
3
4
6
5
7
8
9
10
11
12
16
13
14
15
17
18
19 20
21
22
23 24
25
26 27
30
29
33
Part# Description
A Screw (x40)
B Screw (x4)
C Washer (x23)
D Locking Washer (x23)
E Screw (x4)
F Wheel Cotter Pin (x2)
G Wheel Washer (x2)
H Wheel Axle Pin (x2)
I Battery (x1)
A D G
B E H
C F I
