Medal Sports WMC1344121 - Manuel (Page 8)

7
FIG. 5
A3 21
A4
x 2
x 1
x 4
x 4
18 x 4
FIG.5

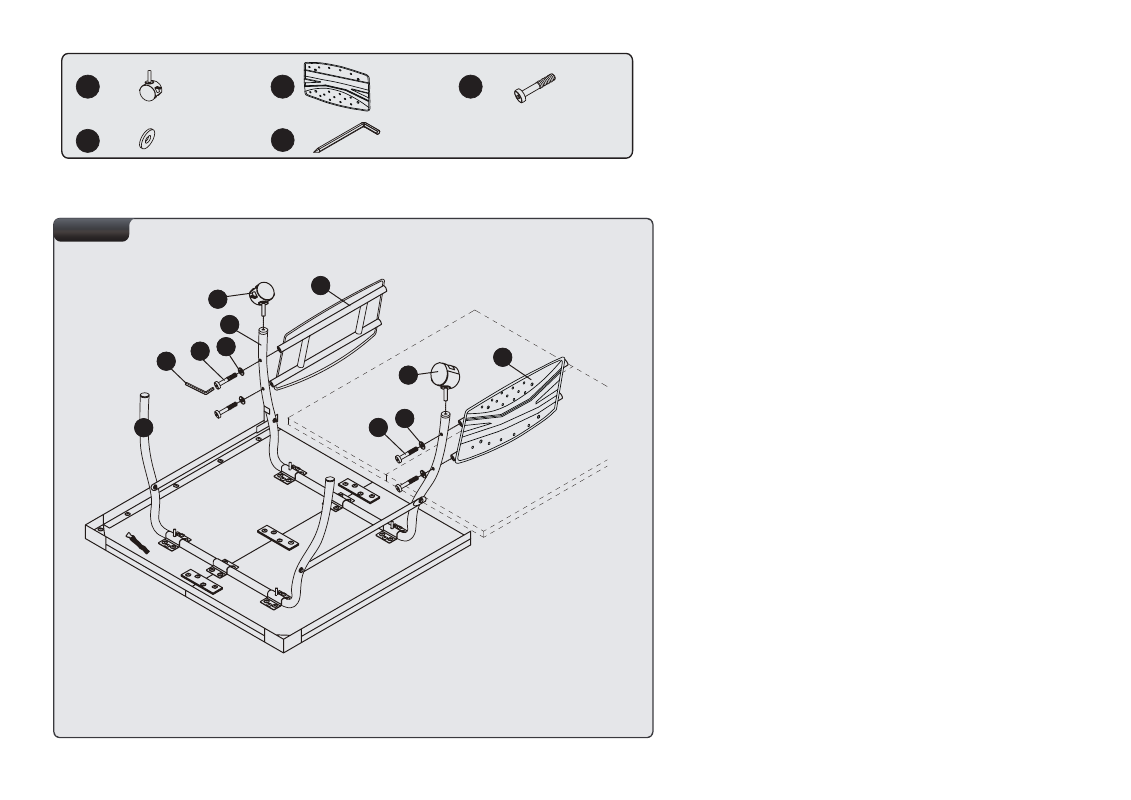

17. Make sure the Outer Leg Caps (P1) and Inner Leg
Caps (P2) are installed into the ends of the leg. Then
place the Wheel (#18) into the Legs. See FIG. 5.
18. With the logo upside-down, attach the Plastic Panel
with Frame (#21) to the Curved Inner Leg (#6) using
two Bolts (#A3) and two Washers (#A4) per frame.
NOTE: Do not tighten securely at this time.
A9
Player
5
6
18
18
21
21
A3
A3
A9
A4
A4
