FIG.9

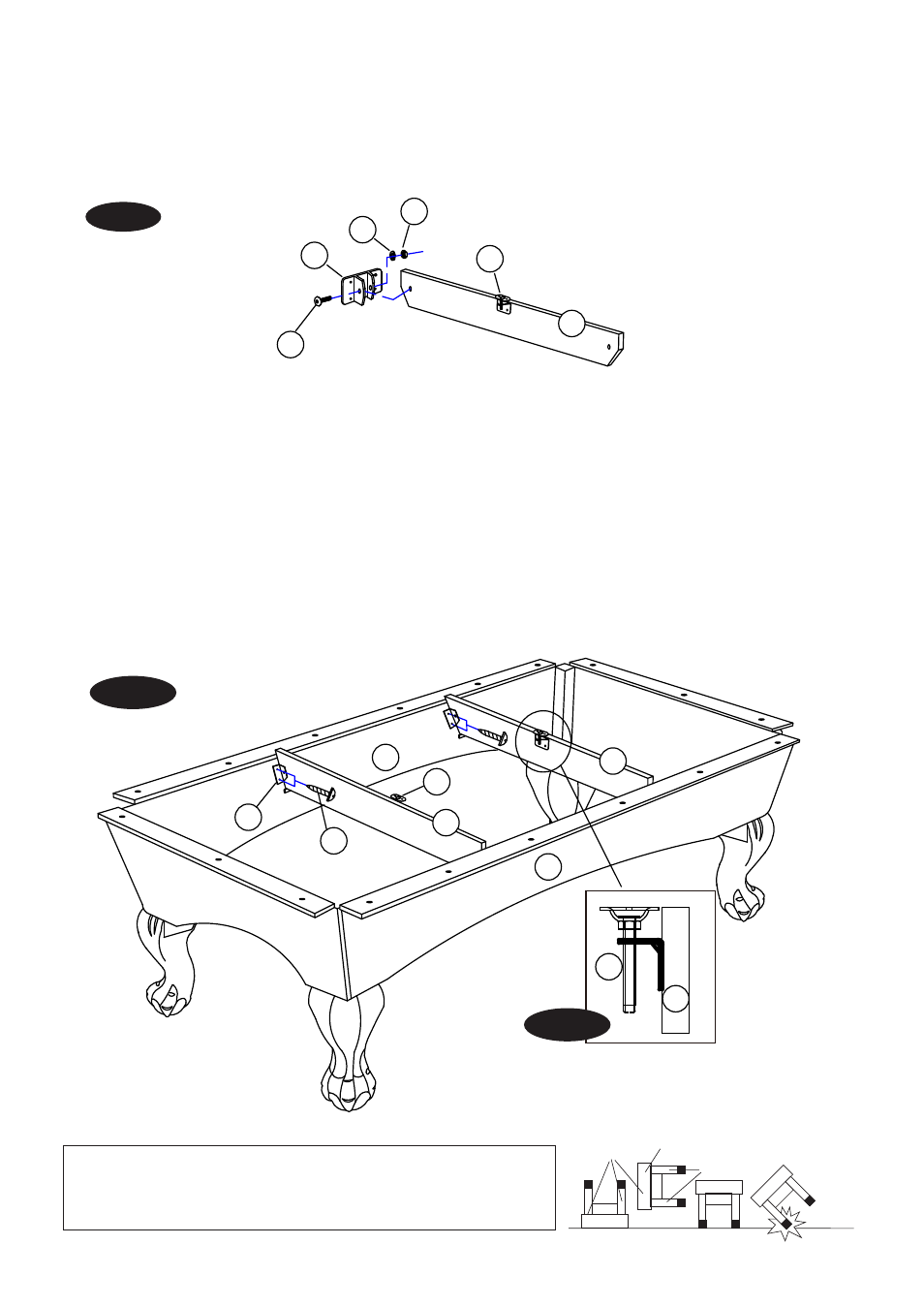

17. Attach the “U” Plastic Brackets (#17) to the Support Boards (#15) using one Bolt (#28), one Washer (#31) and
one Nut (#29) per “U” Bracket.
FIG.10
18. Lift the Lower Apron/Leg assembly (from FIG.8) from the floor with four strong adults, turn it over, and set table
on its legs in the location where you play.
19. Place the Support Boards (#15) between the Lower Side Aprons (#10) as shown in FIG.10. Attach the “U”
Brackets (#17) to the Lower Side Aprons (#10) using four Screws (#24) per “U” Bracket.
Please note that L Brackets (#16) & Support Board (#15) are parallel as shown in FIG. 10A.
8
FIG. 9
FIG. 10
24
10
17
10
HOLD TABLE
CABINET DO NOT
HOLD THE
LEGS
DO NOT LEAN THE
TABLE ON ITS LEGS! CAUTION: Four strong adults are recommended to turn the table over as shown.
1. Lift the table off the ground.
2. Turn the table over.
3. Place it on all four feet at the same time on the ground.
16
28
17
31
29
15
16
15
15
16
15
FIG. 10A
