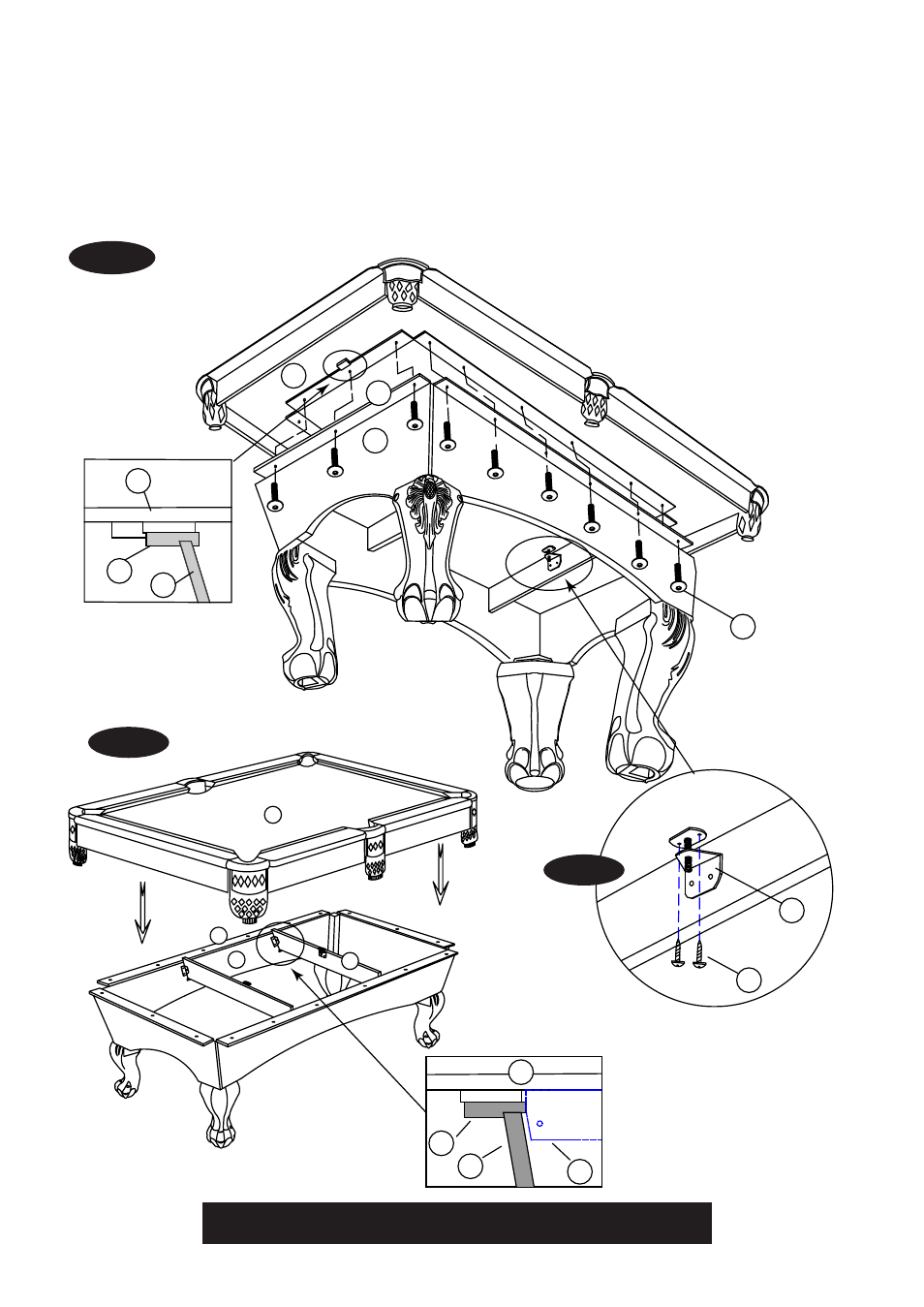

20. Place the Main Cabinet (#1) on top of the Lower Table Assembly (from FIG.10). Underneath the table, secure
them together with eighteen Bolts (#30). See FIG.11 & 11A.
21. Attach the levelers on the “L” Bracket (#16) to the playfield of the Main Cabinet (#1) using two Screws (#24)
per leveler. See FIG.11B.
9
FIG. 11
Go back and make sure that all connections are tight.
