32

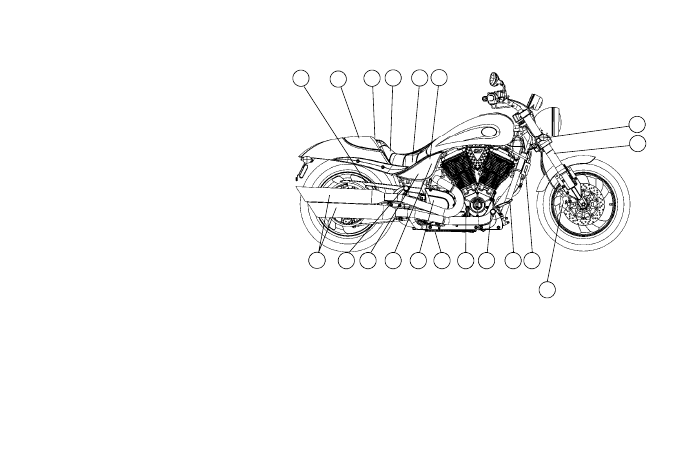

COMPONENT IDENTIFICATION
RIGHT SIDE VIEW
1. Drive Belt (under guard)
2. Passenger Seat / Cowl
3. Seat Strap
4. Operator’s Seat
5. Rear Shock Absorber (access through RH side cover)
6. Side Cover
7. Front Turn Signal
8. Front Fork
9. Oil Cooler
10. Rear Brake Pedal
11. Operator Foot Rest
12. Engine Oil Fill Cap/Dipstick
13. Engine Oil Drain Plug (under engine)
14. Drive Sprocket (under cover)
15. Rear Brake Fluid Reservoir (under side cover)
16. Fuses (under side cover)
17. Passenger Foot Rest
18. Exhaust Muffler (2)
19. Front Brake Caliper4 1 2
18 17
8
7
10 11 12 9 16 15 14 13
5 6 4 3
19
