127
MAINTENANCE
Fuses
Use only recommended amperage fuses to avoid damage to the electrical system.
Caution

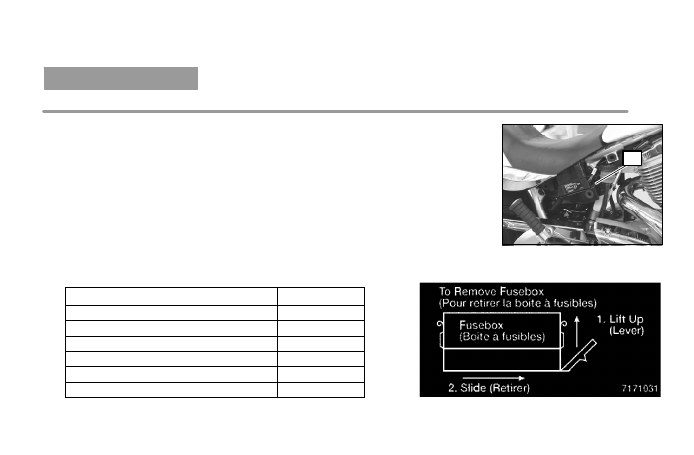

1. Remove right side cover and release fuse box from bracket by lifting tab (A)
and sliding the fuse box forward (see diagram below right.)
2. Release tabs on each side of fuse box cover, and remove cover.
3. Remove fuse from fuse box and push new fuse firmly in its place. A spare 15
amp fuse is located in the fuse box.
4. Reinstall the fuse box cover with the double cutout toward the front of the
motorcycle. The fuse box decal should be readable from the right side of the
motorcycle.
5. Reinstall the fuse box to the bracket.
6. Reinstall the side cover.
Fuse Application Fuse Size
Engine / ECM 15 amp
Fuel Pump 10 amp
Headlamp / Brake Lamp 15 amp
Tail Lamp, Flashers, Indicator Lamp, Horn 15 amp
Ignition / Gauges 15 amp
Spare Fuse 15 amp
A
