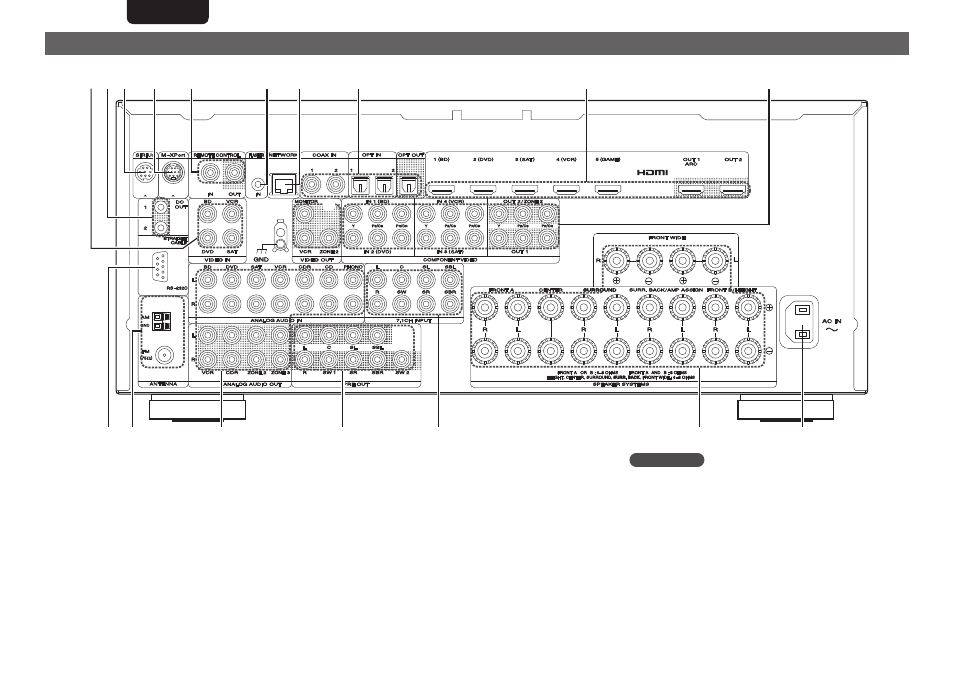

Panneau arrière
Voir la page indiquée entre parenthèses ( ).
Q8
q w u y r t e
Q6 Q4 Q7 i Q5 Q3 Q2 Q1 Q0 o
Q7
q Borne RS-232C ········································································· (56)
w Bornes d’antennes HD Radio ················································· (22)
e Bornes audio analogiques ·········································(17 – 21, 24)
r Bornes PRE OUT ·····················································(6, 24, 51 – 53)
t Bornes 7.1CH INPUT ······························································· (24)
y Bornes d’enceintes ·······················································(6, 51 – 53)
u Prise CA (AC IN) ········································································· (6)
i Bornes COMPONENT VIDEO ···········································(17 – 19)
o Bornes HDMI ············································································ (16)
Q0 Bornes audio numériques ···············································(17 – 21)
Q1 Borne NETWORK ····································································· (25)
Q2 Prise FLASHER IN
Utilisé avec un BOITIER de commande ou autre dispositif de
commande pour la gestion de cet appareil.
Q3 Prises REMOTE CONTROL ················································ (23, 55)
Q4 Prise M-Xport ··········································································· (23)
Q5 Borne SIRIUS ··········································································· (22)
Q6 Prises DC OUT ········································································· (56)
Q7 Bornes VIDEO ···································································(17 – 19)
Q8 Borne SIGNAL GND ································································ (21)
REMARQUE
Ne touchez pas les broches internes des connecteurs sur le panneau
arrière. Une éventuelle décharge électrique pourrait endommager de
façon permanente votre appareil.
