NOMENCLATURE DES PIÈCES
powermax30
Service manuel 4-5
1

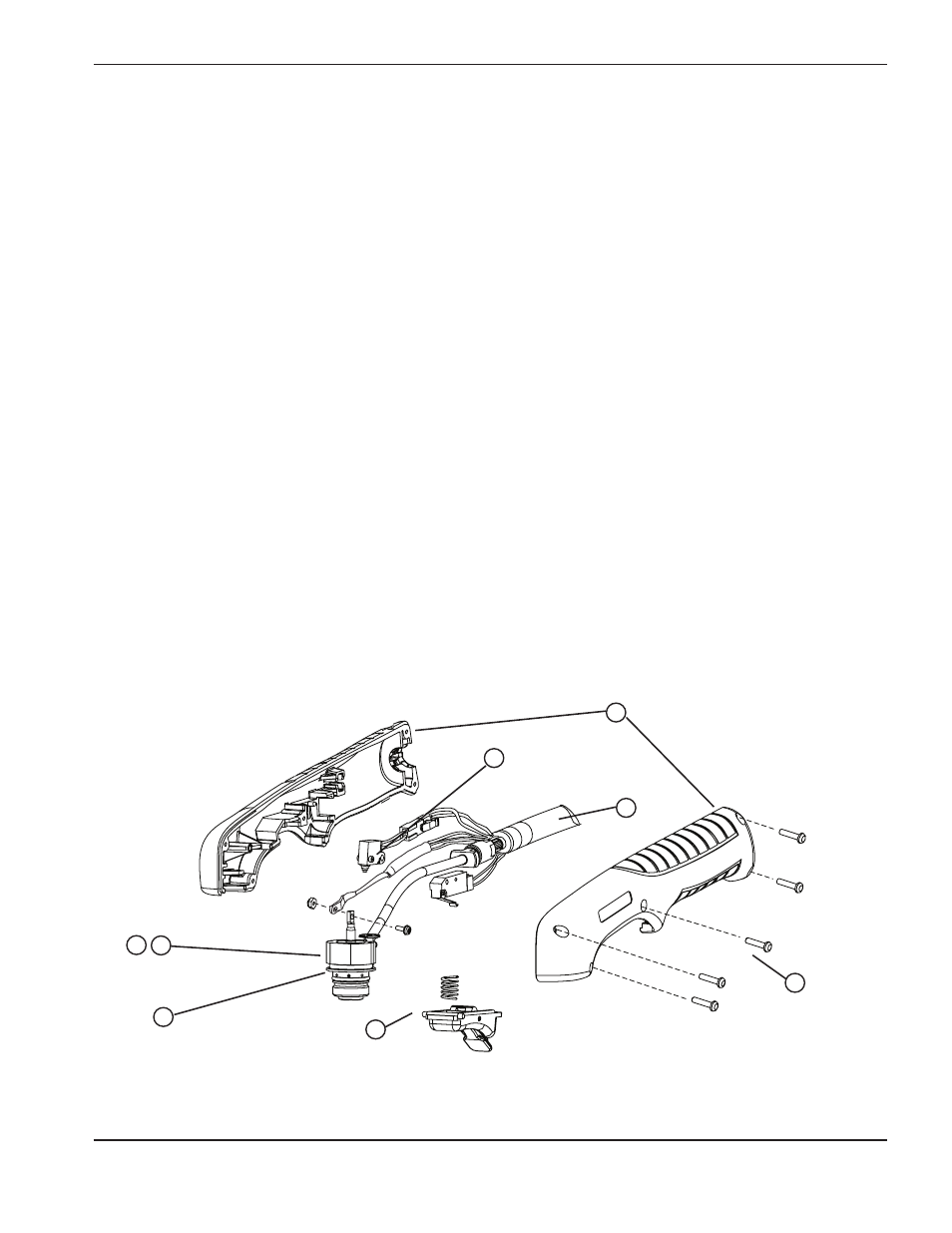

Pièces de torche manuelle T30v
Numéro
Article de référence Description Qté
088001* T30v hand torch assembly with 15 ft (4.6 m) lead
1 228112 Kit: T30v torch head replacement 1
2 058503 O-ring 1
3 228109 Kit: Cap-off sensor replacement 1
4 228110 Kit: T30v torch head repair kit 1
5 228111 Kit: T30v torch handle replacement 1
6 075714 Screws: #4 x 1/2 SLTD Torx PAN, S/B 5
7 002244 Safety trigger and spring replacement 1
8 228113 Kit: T30v 15 ft (4.6 m) torch lead replacement 1
* L’ensemble supérieur comprend les consommables suivants :
220478 Electrode 1
220479 Swirl ring 1
220483 Retaining cap 1
220480 Nozzle 1
