INSTALLATION INSTRUCTIONS
GearLoft™ Shelf Use Requirements
■ Intended to be installed on Gladiator ® Garageworks GearWall ®
panels or GearTrack ® channels.
■ Maximum weight limit is 100 lbs (45.5 kg).
Unpack the GearLoft™ Shelf Parts
Remove the shelf parts and fasteners, and dispose of/recycle all
packaging materials.

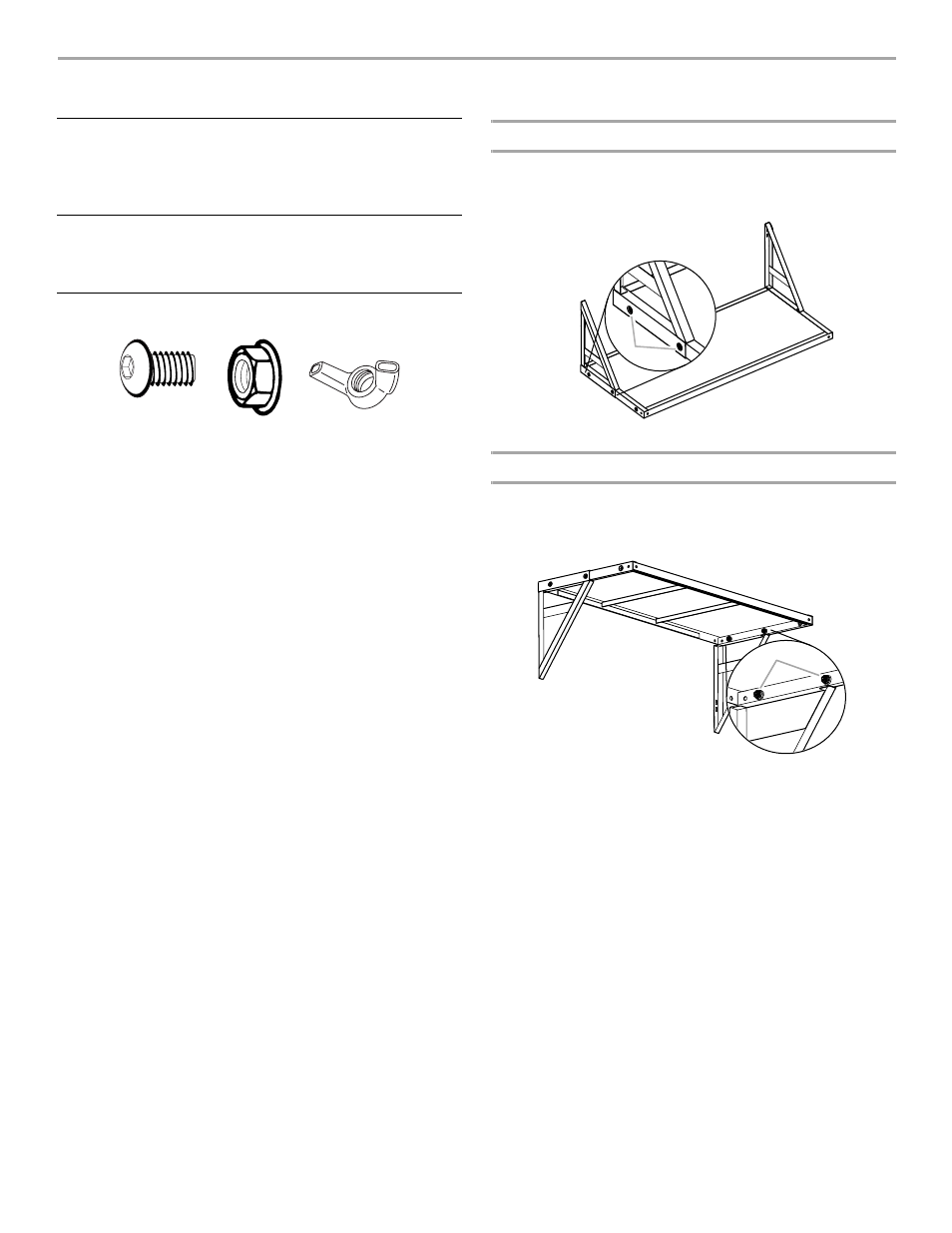

Assemble GearLoft™ Shelf
Gather the required tools before starting assembly.
Tools Needed:
Tools Supplied:
IMPORTANT: Determine whether you will be mounting the shelf to
the wall with the braces above or below the shelf.
Mounting Braces Above Shelf
1. With the braces pointing upward, align the braces with the center
and back holes on each side of the shelf.
2. Using Allen-head bolts (F1) and flange nuts (F2), attach a brace
to each side of the shelf. Fully tighten the bolts.
Mounting Braces Below Shelf
1. With the braces pointing downward, align the braces with the
center and back holes on each side of the shelf.
2. Using Allen-head bolts (F1) and flange nuts (F2), attach a brace
to each side of the shelf. Fully tighten the bolts.
F1 F2 F11
F1
⁵⁄₁₆
" Allen-head bolt (4)
F2
⁵⁄₁₆
" Flange nut (4)
F11
¹
Wing nut (4)
■ ¹⁄₂" Wrench
■ Allen wrench
A. Brace attached to shelf
A. Brace attached to shelf
A
A
