Part Description
A . . . . . . . Front Stabilizer [Quantity: 1]
B . . . . . . . Hex Bolt - M8 x 1.25 x 16 mm (6 mm socket) [2]
C . . . . . . . Rear Stabilizer [1]
D . . . . . . . Hex Bolt - M8 x 1.25 x 16 mm (6 mm socket) [2]
E1 . . . . . . Pedal – Left [1]
E2 . . . . . . Pedal – Right [1]
F . . . . . . . Saddle [1]
G . . . . . . . Seat Post Assembly [1]
H . . . . . . . Lower Wire Harness Connector [1]
J . . . . . . . Console Mast Assembly [1]
K1 . . . . . . Upper Wire Harness – Connector 1 [1]
K2 . . . . . . Upper Wire Harness – Connector 2 [1]
L . . . . . . . Curved Washer – 8.0 x 19.0 x 2.0 mm [1]
M . . . . . . . Flat Washer – 8.0 x 19.0 x 2.0 mm [4]
N . . . . . . . Hex Bolt – M8 x 1.25 x 12 mm (6 mm socket) 5]
P . . . . . . . Handlebar Assembly [1]
Q1 . . . . . . Handlebar Fixing Clamp [1]
Q2 . . . . . . Lock Washer – 7.0 x 13.0 x. 2.0 mm [2]
Q3 . . . . . . Flat Washer – 7.0 x 12.0 x 1.0 mm [2]
Q4 . . . . . . Handlebar Clamp Cover [1]
Q5 . . . . . . Spacer/Bushing – 7.0 x 12.0x 40 mm (plastic) [1]
Q6 . . . . . . T-Handle – M7 x 1.0 x 65 mm [1]
Q7 . . . . . . Hex Bolt – M7 x 1.0 x 30 mm [1]
R . . . . . . . Console [1]
S . . . . . . . Heart Rate Wire Harness – Console [1]
T . . . . . . . Heart Rate Wire Harness – Handlebar [1]
U . . . . . . . Rubber Grommet [1]
V . . . . . . . Wire Harness - Console [1]
W. . . . . . . Phillips Screw – M5 x 0.8 x 10 mm [4]
X . . . . . . . AC Adaptor – US Plug; 120V, 60 Hz, 9V, 1A 1]
Y . . . . . . . Console Mast Cover [1]
Z . . . . . . . Crank Cap [2]
AA . . . . . . Leveling Foot/End Cap [2]
BB . . . . . . Seat Post Adjustment Knob [1]
CC . . . . . . Input Jack [1]

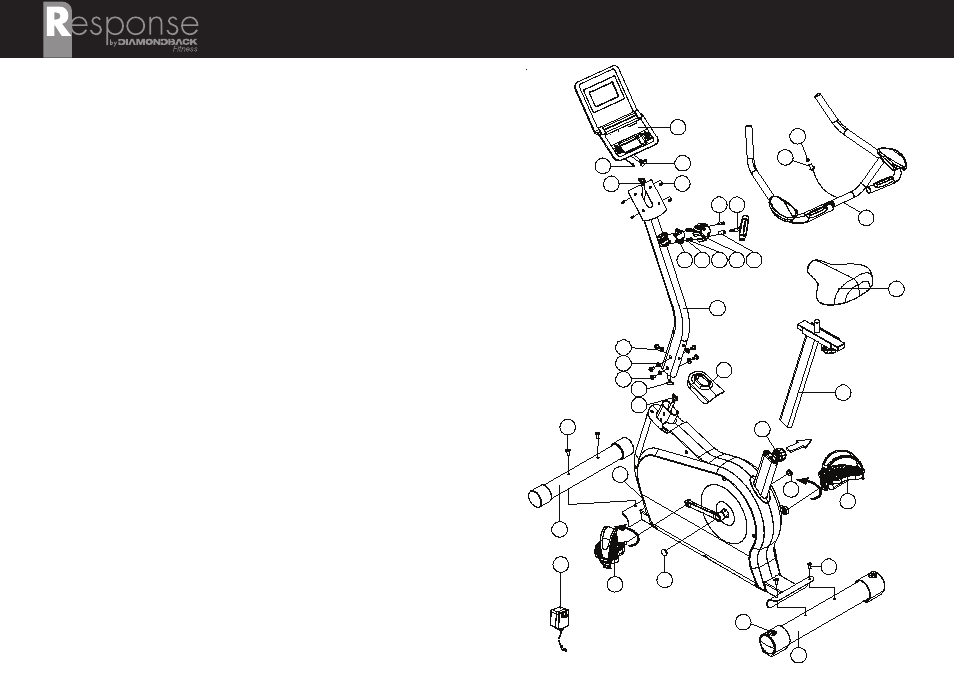

RESPONSE U6c ASSEMBLY
6
A
S
W
V
R
C
B
D
E 1
Z
E 2
F
G
L
K 1
H
K 2
M
J
P
Q 1 Q 3 Q 4 Q 2
Q 6 Q 7
Q 5
U
T
X
N
Y
Z
AA
BB
CC
