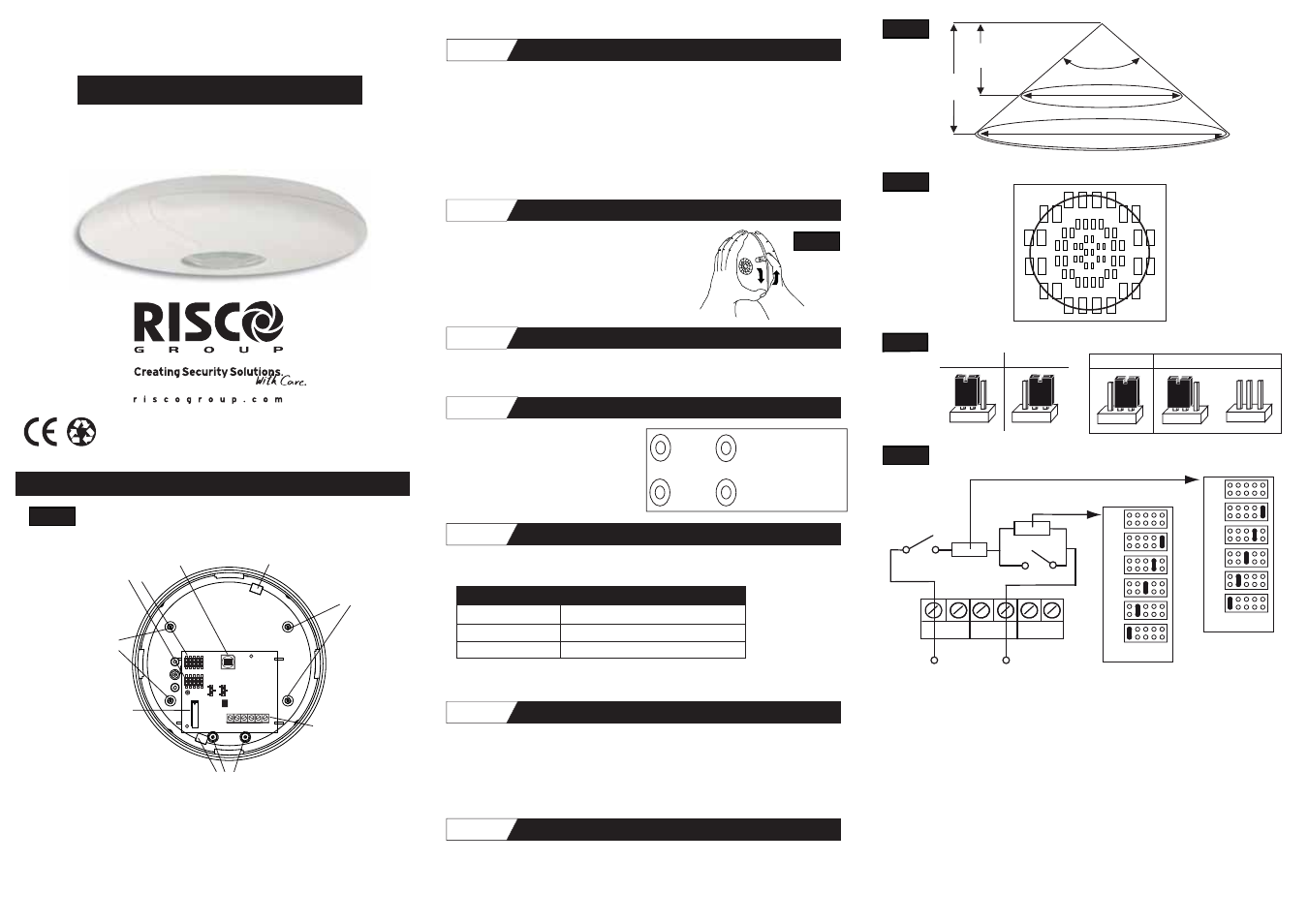

RISCO Group LuNAR PIR - Manuel

The lens in LuNAR PR provides detection sectors (beams) arranged in three
all-round optical levels, the external including 12 sectors, the middle
12 sectors and the internal 6 sectors. This arrangement assures you the best
coverage of the area. See plan view,
¿g. 4.
The unit should not be mounted in direct sunlight or any other direct light or any
heat source (i.e. above a stove, radiator etc.). Detection sectors should
be pointing towards the
Àoor, not curtains, windows etc.
Hold the unit with its base in the palm of your hand
and turn the cover clockwise to open, as
illustrated in Fig. 2.
The turning movement will release the 4 latches
locking the cover to the base of the unit.
The unit includes knockouts for mounting and wiring. Open the appropriate
knockouts required the installation.
Insert the cable through the hole you
opened and mount the bottom part
in its
¿nal location.
Seal the cable hole and any other
opening with a sealant (RTV or alike).
The following wire connection should be made to the terminal strip located
at the right lower part of the PC board.
SPECIFICATIONS
ELECTRICAL: PHYSICAL:
Detection technology: Dual element PIR Weight: 112 G (4 Oz)
Current consumption: 15 mA at 12 VDC Size: Ø135 x 27 mm
Supply voltage: 9-16 VDC regulated
Alarm contact: 24 VDC, 50 mA
Anti-tamper: Normaly closed, 24 VDC,0.5 A
Pulse count: Selectable 1-3
Temperature compensation: True Temp. compensation
RF immunity: According to EN50130-4
Walk test: 1 LED
OPTICAL:
ENVIROMMENTAL:
Lens: Wide angle spherical Fresnel Operating 0ºC to 55ºC
Coverage: 110º angle, 360º overview
temperature: (32ºF to 131ºF)
Detection Zones: 3 optical levels, 12 external sectors, Storage -20ºC to 60ºC
12 middle sectors, 6 internal sectors temperature: (-4ºF to 140ºF)
TERMINAL DESCRIPTION
(-) (+) 12 VDC DC Voltage (9 to 16 VDC).
N.C. Normally closed alarm contacts.
TAMPER Anti-tamper circuit.
NOTE: Ensure that cover is installed after mounting and wiring.
Do not check or test detector without cover closed.
OPTICAL FEATURES
The following is a description of features of RISCO GROUP's Fresnel lens ¿tted
in LuNAR PR.
Set the "PULSES" to "1" and "LED" to "ON" (JP1).
With the LuNAR PR closed and powered in the setting, the LED will light each
time detection occurs, so operation can be checked.
After walk testing, the LED setting may be SET to "OFF". Now the detector will
work normally, but the LED will not light when detection occurs and the intruder
will notice being detected.
© RISCO Group 01/2013 5IN1805 C
LuNAR TM PR
360º CEILING MOUNT
DIGITAL PIR DETECTOR
GENERAL DESCRIPTION
The LuNAR PR 360º ceiling mount digital PIR is designed with state-of-the-art
components to ensure reliable operation in a wide range of applications.
It has a wide 110º angle, 360º overview. LuNAR PR uses a dual element
pyroelectric technology and provides superior RFI/EMI protection.
In addition, the LuNAR PR has digital true temperature compensation.
TERMINALS
MOUNTING
KNOCKOUT
CABLE
KNOCKOUT
CABLE
KNOCKOUT
MOUNTING
KNOCKOUT
PYROELECTRIC
ELEMENT
EOL Resistors
ANTI-TAMPER
DEVICE
FIG. 1
FIG. 2
FIG. 3
FIG. 4
FIG. 5
ENGLISH
TAMPER ALARM 12VDC
© RISCO
JP2 JP1
JP3
JP4
Before installation you should study the space to be protected in order to
decide on the location of the LuNAR PR for best coverage. This unit is usually
designed to be installed above the center of the protected area.
INSTALLATION PROCEDURE
STEP 1 PRELIMINARY DECISIONS
The number of pulses needed to activate the alarm can be set to "1", "2" or "3".
STEP 7 SETTING THE PULSE COUNT
STEP 2 FRONTAL COVER REMOVAL
STEP 3 OPENING, MOUNTING AND CABLE HOLE
STEP 4 MOUNTING
STEP 5 TERMINAL WIRING
STEP 6 WALK TEST
Marks for
mounting
To drill holes for
mounting use the
4 marks on the back
side of the package.
13.4
110º
27'
8.23m
12.2m
40'
4.06m
2.75m
9'
PLAN VIEW
JP1 - LED ON / OFF
FIG. 6 Schematic of EOL resisitors
ISOMETRIC VIEW
Speci ¿cations are subject to change without prior notice.
SHOULD ANY QUESTIONS ARISE PLEASE CONTACT YOUR SUPPLIER.
JP2 - PULSE COUNT
PANEL DEOL
TAMPER ALARM -12V+
TAMPER
ALARM
JP3 -
ALARM EOL JUMPERS
Resisitor
(Factory settings)
NO
1K
2.2K
4.7K
5.6K
6.8K
JP4 -
TAMPER EOL JUMPERS
Resisitor
(Factory settings)
NO
1K
2.2K
4.7K
5.6K
6.8K
EN 50131-1 Grade 2, EN 50131-2-2, EN 50130-5 Class II
ON OFF
1 2 3 1 2 3
3 2 1
1 2 3 1 2 3 1 2 3
Model: RK2000DPC
