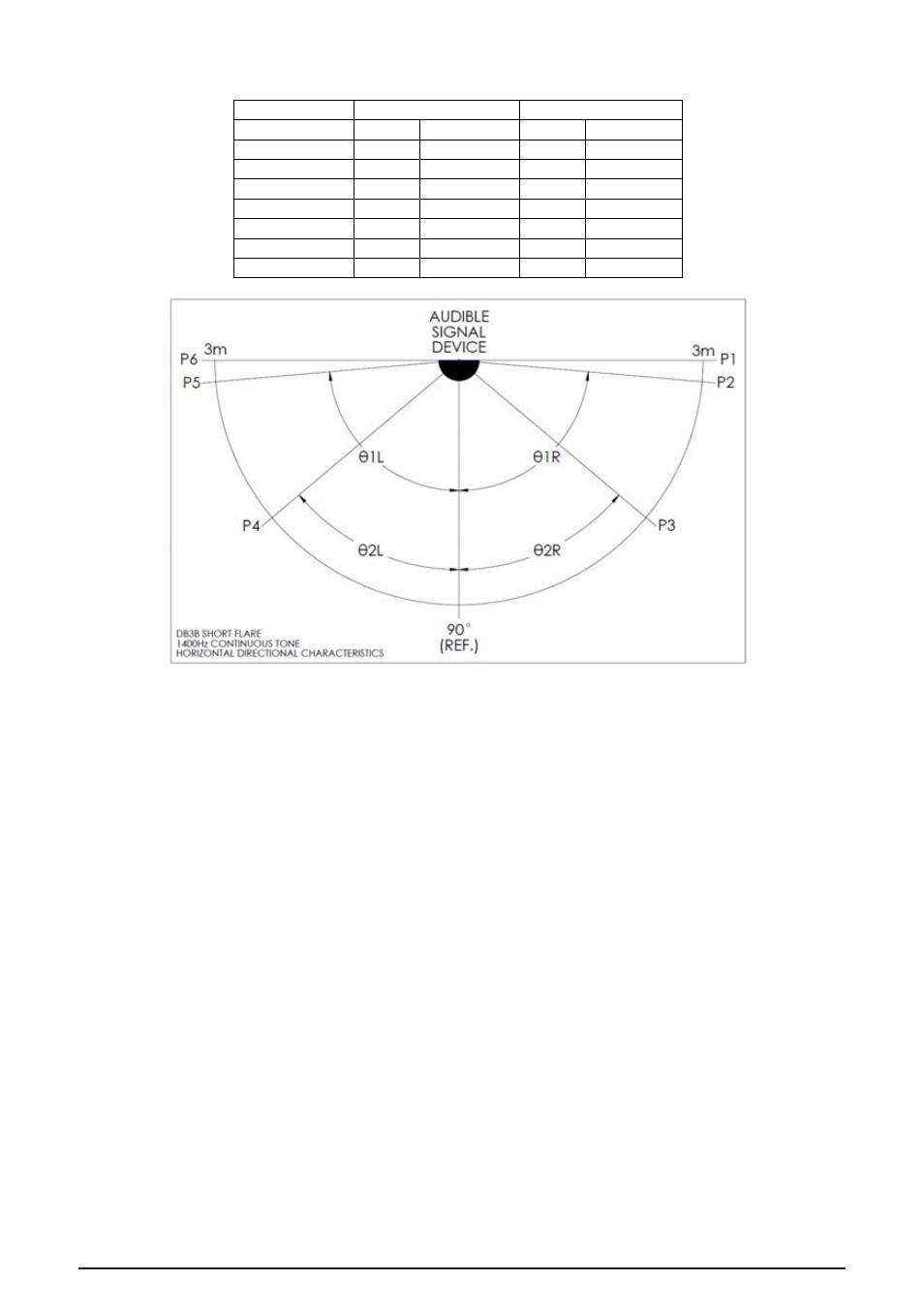

Short flare versions:
Nominal output @ nominal power / 3m – 99.6dB(A)
Horizontal Vertical
Point Angle SPL dB(A) Angle SPL dB(A)
REF. 90° 95.7 90° 99.6
P1 0° 87.1 0° 91.1
P2 (-6dB) !1R 85° 89.8 55° 93.4
P3 (-3dB) !2R 50° 92.9 50° 96.9
P4 (-3dB) !2L 50° 92.9 45° 96.9
P5 (-6dB) !1L 85° 89.8 55° 93.4
P6 180° 93.2 180° 90
