6
FIG. 4
FIG.4
FIG.5
FIG. 5

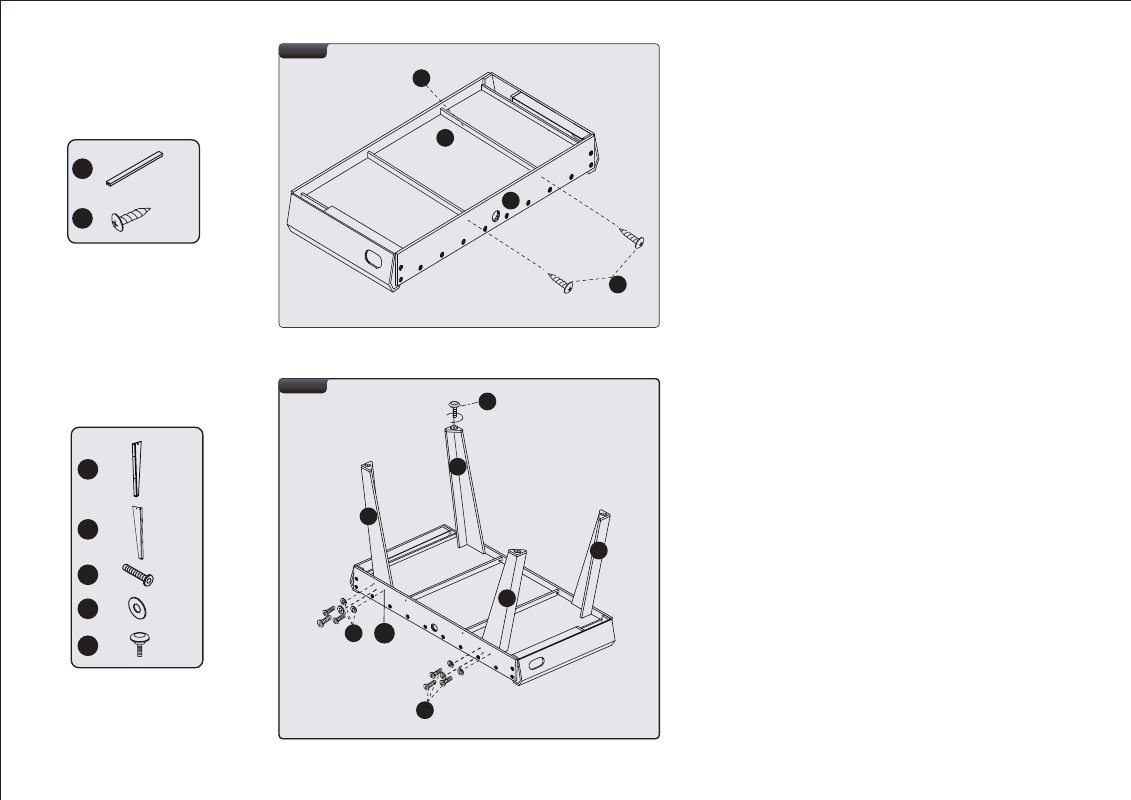

6. Place the Support Braces (#3) on the Playfield (#4) and
then attach them to the Side Aprons (#1) using two
Screws (#14) per Support Brace. See FIG. 4.
7. Attach the Left and Right Legs (#5 & #6) to the Side
Aprons using three Bolts (#8) and three Washers (#9)
per Leg. See FIG. 5.
8. Screw the Leg Levelers (#27) into the bottom of each leg.
See FIG. 5.
X 4
X 2
14
3
4
14
3
1
32
X 2
X 12
X 12
5
X 2
6
8
9
X 4
27
8
9
27
5
5
6
6
