General Description

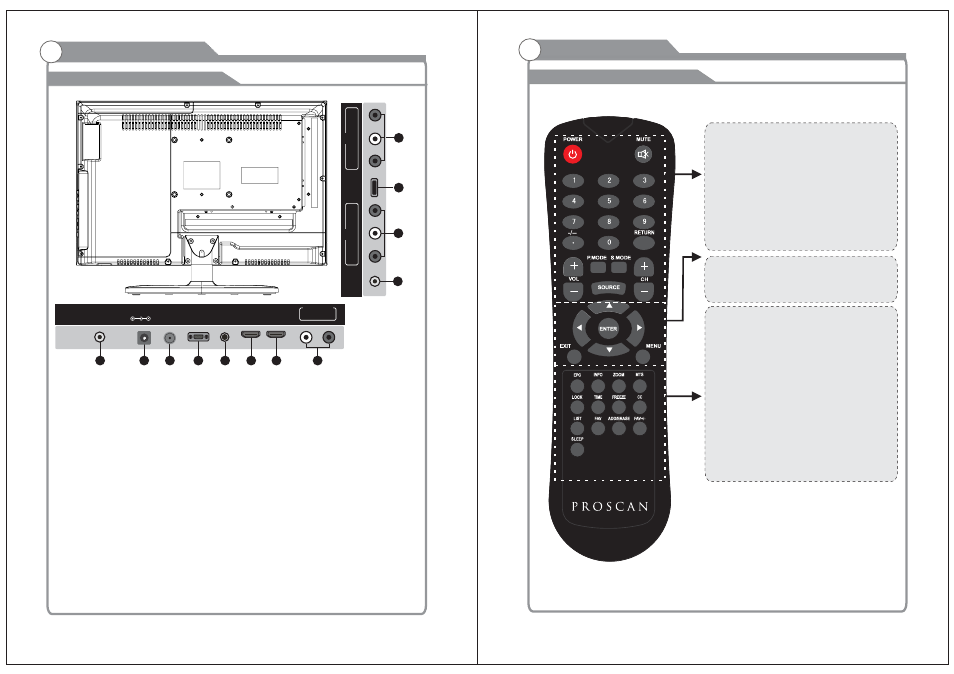

Overview of back panel Overview of remote control
General Description
1.
2.
4.
5.
EARPHONE output
POWER(DC 12V) input
3. input
input
PC AUDIO input
6. HDMI1 input
RF
VGA
7.
9.
10.
HDMI2 input
8. L/R output
COAXIAL output
VIDEO input
11.SERVICE PORT
12.YPbPr input
POWER: Turn the TV on or off.
MUTE: Press to mute the sound, Press again to regain
the sound.
0-9: Press 0-9 to selet a TV channel directly The channel
will change after 2 seconds. Applicable for entering page
number in teletext mode and so on.
-/--: Press this button firstly when the channel to be
selected is two or three figures (only DVD mode).
RETURN: Return to the previously viewed program.
P.MODE: Select the picture mode.
S.MODE: Select the sound mode.
SOURCE: Press to select signal source for TV.
VOL+/-: Press these two buttons to increase/decrease the
sound volume.
CH+/-: Press these two buttons to change channels
sequently.
▲▼◀▶/enter: Allows you to navigate the on-screen
menus and adjust the system settings to your
preference.
EXIT: Exit from the menu or sub menu.
MENU: Allow you to navigate the on-screen menus.
EPG: Press to display EPG (Electronic Program Guide) in
formation.
INFO: Displays the channel in formation.
ZOOM: Press to change the screen scale.
MTS: Press to select the audio channels.
LOCK: Press to display the parental menu.
TIME: Press to display Time menu.
FREEZE: Press to freeze the screen.
CC: Press to display the closed caption.
LIST: Press to display the TV program list.
FAV: Press to display the favorite programs.
ADD: Add this program to the favorite language.
ERASE: Delete this program from the favorite channels
list.
FAV+/-: Press this button +/- the favorite program list.
SLEEP: Set up the time how long the TV will turn off.
