CONTROL REFERENCE GUIDE

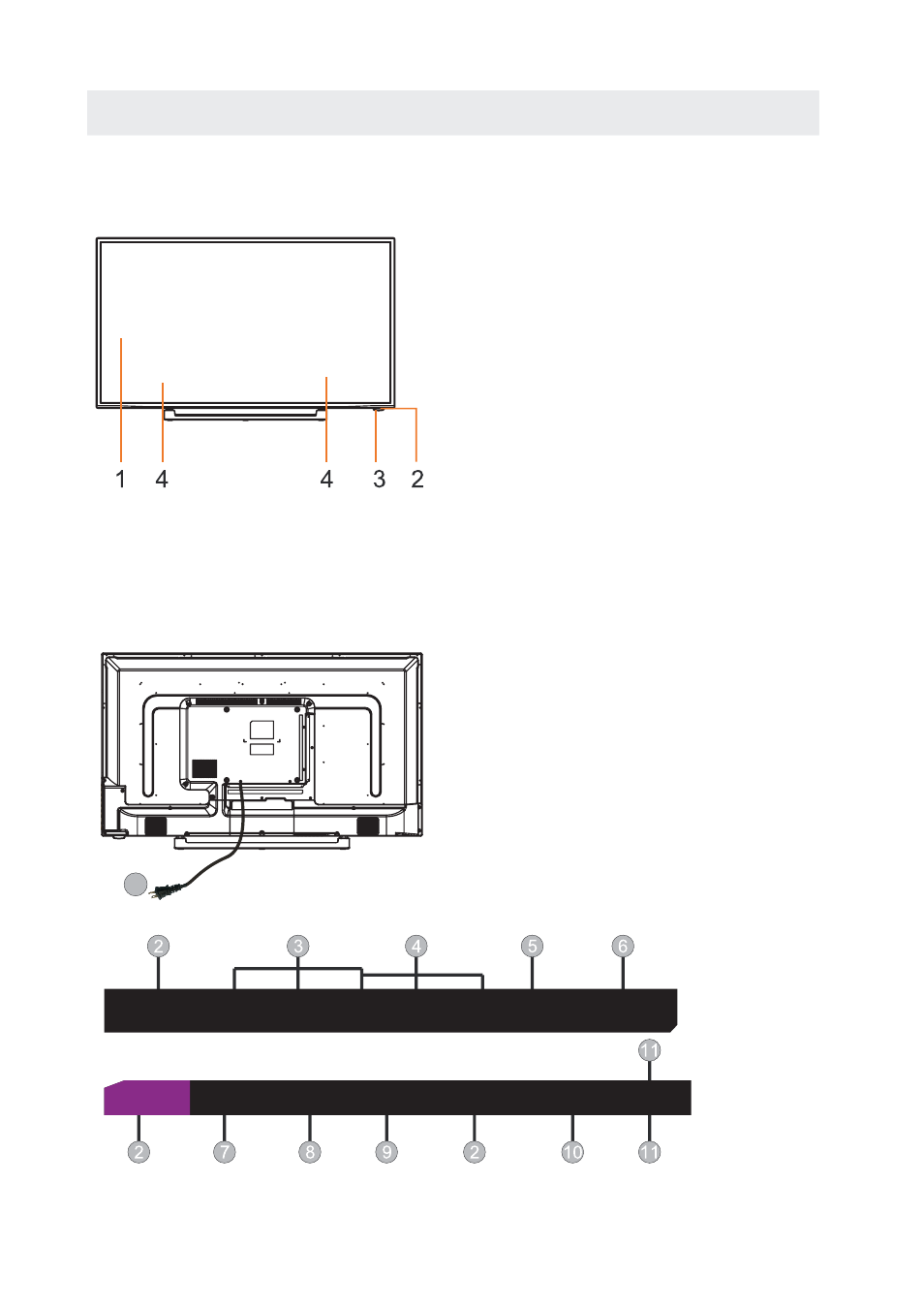

FRONT VIEW
BACK VIEW
1.Color Screen
2.Remote Sensor
Do not block this sensor or the
remote control will not work.
3.Standby Indicator
Indicates whether the unit is ON
or in STANDBY (OFF) mode.
Light in red: The unit is in STANDBY.
Light in
blue :The unit is turned ON.
4. Speakers
1
1.Power Cord
2.HDMI IN Jacks
HDMI2 also doubles as the MHL connection for cell
phones. MHL is a protocol where the TV will display
what your cell phone displays. If your cell phone
supports MHL you can purchase a MHL cable from
any electronic store and connect it to HDMI2 and also
your cell phone. Make sure the TV's source is
changed to HDMI2 and turn on your cell phone.You
should see an image of your cell phone screen.
HDMI2 also supports ROKU™ streaming stick.
Plug the ROKU stick to HDMI2, and switch your
source to HDMI2. Afterwards use the purple
colored buttons to access ROKU functions.
(Don't support 4K 2Ksignal)
3.AV IN Jack
4.COMPONENT IN Jack
5.VGA IN Jack
6.PC AUDIO IN Jack
7.AUIO OUT Jack
8.TV ANTENNA Terminal
9.Optical OUT Jack
10.Headphone Jack
11.Service Port
HDMI1 L R Y/(VIDEO) Pb Pr VGA
PC
Audio
Line
Out
RF
Optical
Out
HDMI3
Head
Phone
Service
Port2
Service
Port1
HDMI2/ MHL
