9
INSTRUCTION
CONTROLS
8
This manual explains the features available on the model of 24 inch LCD TV.
■

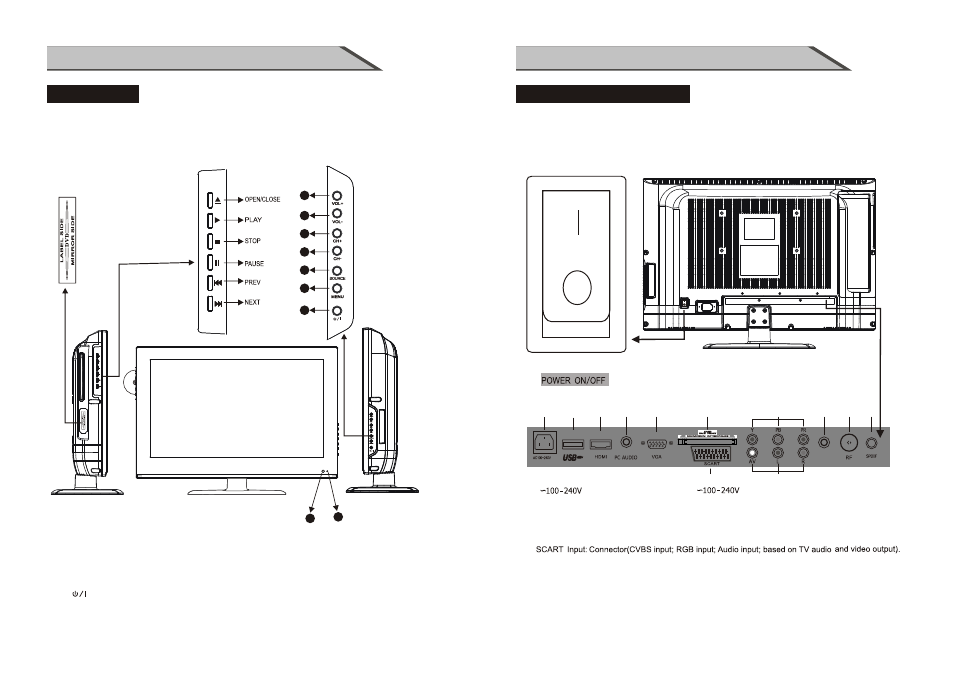

This is a simplified representation of a front panel. Here shown may be somewhat
different from your TV.
Left panel controls
(01) : Connect the power cord with to this input.
(02) USB : Input USB device input.
(03) HDMI Input: Connect HDMI signal.
(04) PC AUDIO Input: Connect PC audio input.
(05) PC VGA Input: Connect PC VGA signal output.
(06) Common Interface (CI):
Allow Conditional Access Module (CAM) smart card to insert
and access the functions in the card.
(07)
(08)
YPBPR(Y:GREEN, PB:BLUE, PR:RED) Video Input: Connect the component image output
of your AV devices here. Then Connect audio output of your AV devices to R and L.
(09) AV Video Input: Connect composite video output of your AV device and Connect
the audio output of your AV devices to R and L.
(10) EARPHONE output: Connect to headphone output.
(11) RF: Antenna Input (75 ohm).
(12) SPDIF: Digital audio output.
(13) (
Main Power Switch): Power turn on/off.
INSTRUCTION
Back Connection Panel
CONNECTION OPTION
This is the back panel LCD TV
■ This is a simplified representation of a back panel.
Here shown may be somewhat different from your TV.
3 4 5 6
7 9
10 11 12 8
EARPHONE
1 2
(1): (VOL+) Press Volume+ to increase the volume.
(2): (VOL-) Press Volume- to decrease the volume.
(3): (CH+) Press the button to up the channel.
(4): (CH-) Press the button to down the channel.
(5): (SOURCE) Press this button to select AV source or TV source.
(6): (MENU) Press this button to display the OSD menu.
When the OSD menu is on, press this button to exit the menu.
(7): ( ) Press this button to standby mode.
(8): Indicator.
(9): Remote control sensor window.
2
1
3
6
4
7
5
9 8
13
