133

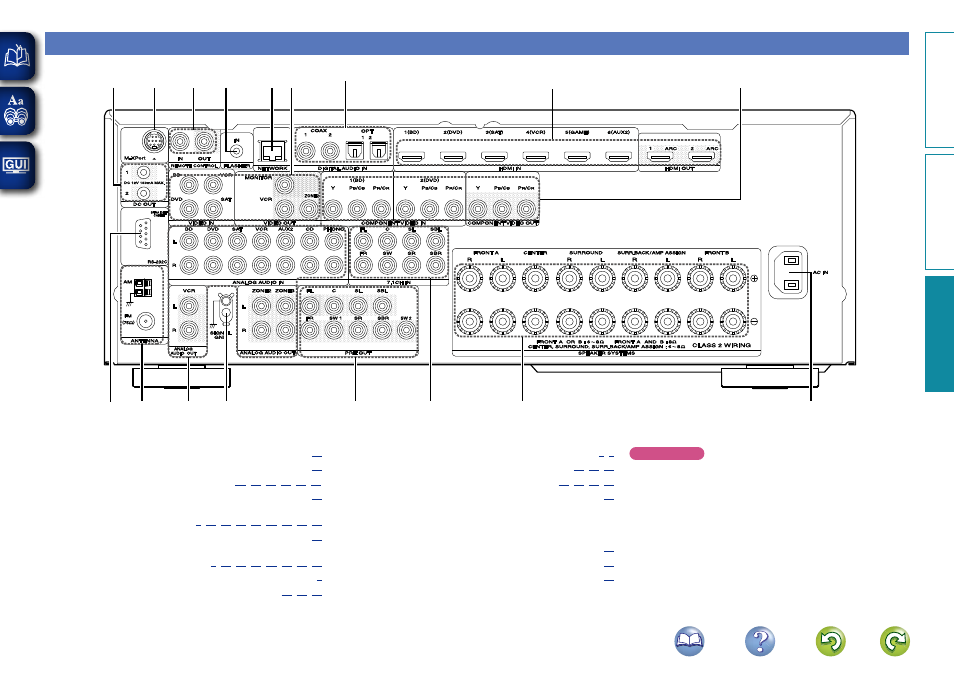

Panneau arrière
Voir la page indiquée entre parenthèses ( ).
Q0
q w e r t y u i
Q1 o Q4 Q5 Q6 Q7 Q3 Q2
q Borne RS-232C ········································································· ( 72 )
w Bornes d’antennes HD Radio ················································· ( 15 )
e Bornes audio analogiques ························ ( 11 , 12 , 13 , 16 , 17 , 18 )
r Borne SIGNAL GND ································································ ( 16 )
t Bornes PRE OUT
············································ ( C 6 , 18 , 62 , 63 , 64 , 65 , 66 , 67 , 68 )
y Bornes 7.1CH IN ······································································· ( 17 )
u Bornes d’enceintes
·················································· ( C 6 , 62 , 63 , 64 , 65 , 66 , 67 , 68 )
i Prise CA (AC IN) ································································· ( C 5 )
o Bornes COMPONENT VIDEO ······································ ( 10 , 11 , 12 )
Q0 Bornes HDMI ·································································· ( C 3 , 8 )
Q1 Bornes audio numériques ·········································· ( 10 , 12 , 16 )
Q2 Bornes VIDEO ························································ ( 10 , 11 , 12 , 13 )
Q3 Borne NETWORK ····································································· ( 19 )
Q4 Prise FLASHER IN
Utilisé avec un BOITIER de commande ou autre dispositif de
commande pour la gestion de cet appareil.
Q5 Prises REMOTE CONTROL ······················································ ( 71 )
Q6 Prise Borne M-XPort ······························································· ( 17 )
Q7 Prises DC OUT ········································································· ( 72 )
REMARQUE
Ne touchez pas les broches internes des connecteurs sur le panneau
arrière. Une éventuelle décharge électrique pourrait endommager de
façon permanente votre appareil.
