FRANÇAIS
q
Interrupteur principal (ON/OFF) ················· (8)
w
Témoin STANDBY ········································ (8)
Indique l’état de l’appareil comme suit :
• Alimentation “ON” : Désactivé
• Lorsque le circuit de protection est activé :
Rouge (clignotant) ....................................... (6)
• Veille : Rouge
• Alimentation “OFF” : Arrêt
e
Molette INPUT SELECTOR ·························· (9)
r
Témoins d’entrée ········································· (8)
t
Témoin MUTE (MUTE) ································· (9)
y
Commande VOLUME ······························· (8, 9)
u
Capteur de télécommande ···················· (3, 10)
i
Commande BALANCE ······························ (8, 9)
o
Commutateur/témoin SOURCE DIRECT ···· (9)
Q0
Commande TREBLE ································· (8, 9)
Q1
Interrupteur/témoin POWER AMP DIRECT ······· (9)
Q2
Bouton de commande MID ····················· (8, 9)
Q3
Commutateurs/témoins SPEAKERS A/B ··· (9)
Q4
Commande BASS ····································· (8, 9)
Q5
Prise de casque audio (PHONES) ················ (9)
REMARQUE
Vous ne pouvez régler les boutons de commande
i
BALANCE,
Q0
TREBLE,
Q2
MID et
Q4
BASS
que lorsque l’interrupteur
o
SOURCE DIRECT est
éteint.

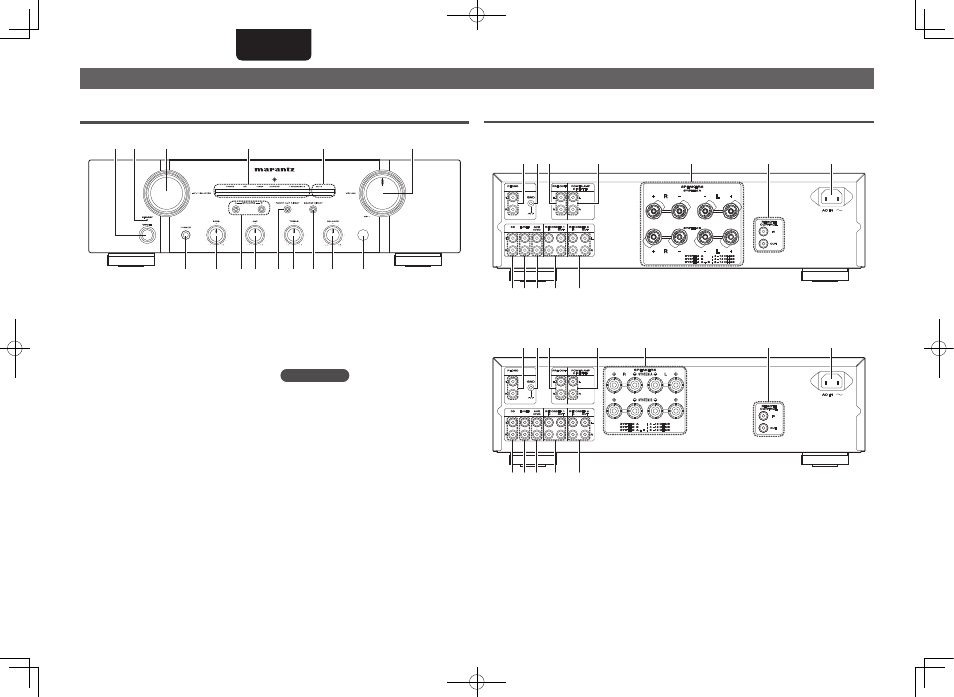

Nomenclature et fonctions
Pour les touches qui ne sont pas décrites ici, lire la page indiquée entre parenthèses ( ).
Panneau avant
t
q
w
e
r
i
Q1 Q0
Q2
Q4
Q5
y
u
o
Q3
q
Bornes d’entrée PHONO ······························ (7)
w
Borne PHONO GND ······································ (7)
e
Connecteurs PRE OUT ······························· (10)
r
Connecteurs POWER AMP DIRECT IN ········ (9)
t
Bornes des systèmes d’enceintes
(SPEAKERES SYSTEM A/B) ···················· (6, 7)
y
Prises d’entrée/sortie
REMOTE CONTROL ···································· (10)
Panneau arrière
n
PM-KI-PEARL-LITE
r
t
y
u
w e
q
i
o
Q0
Q1
Q2
n
PM7004
r
t
y
u
w e
q
i
o
Q0
Q1
Q2
u
Prise CA (AC IN) ············································ (8)
i
Bornes d’entrée/sortie
RECORDER 2 (MD/TAPE) ···························· (7)
o
Bornes d’entrée/sortie
RECORDER 1 (CD-R) ····································· (7)
Q0
Bornes d’entrée AUX/DVD ·························· (7)
Q1
Bornes d’entrée TUNER ······························· (7)
Q2
Bornes d’entrée CD ······································ (7)
