3

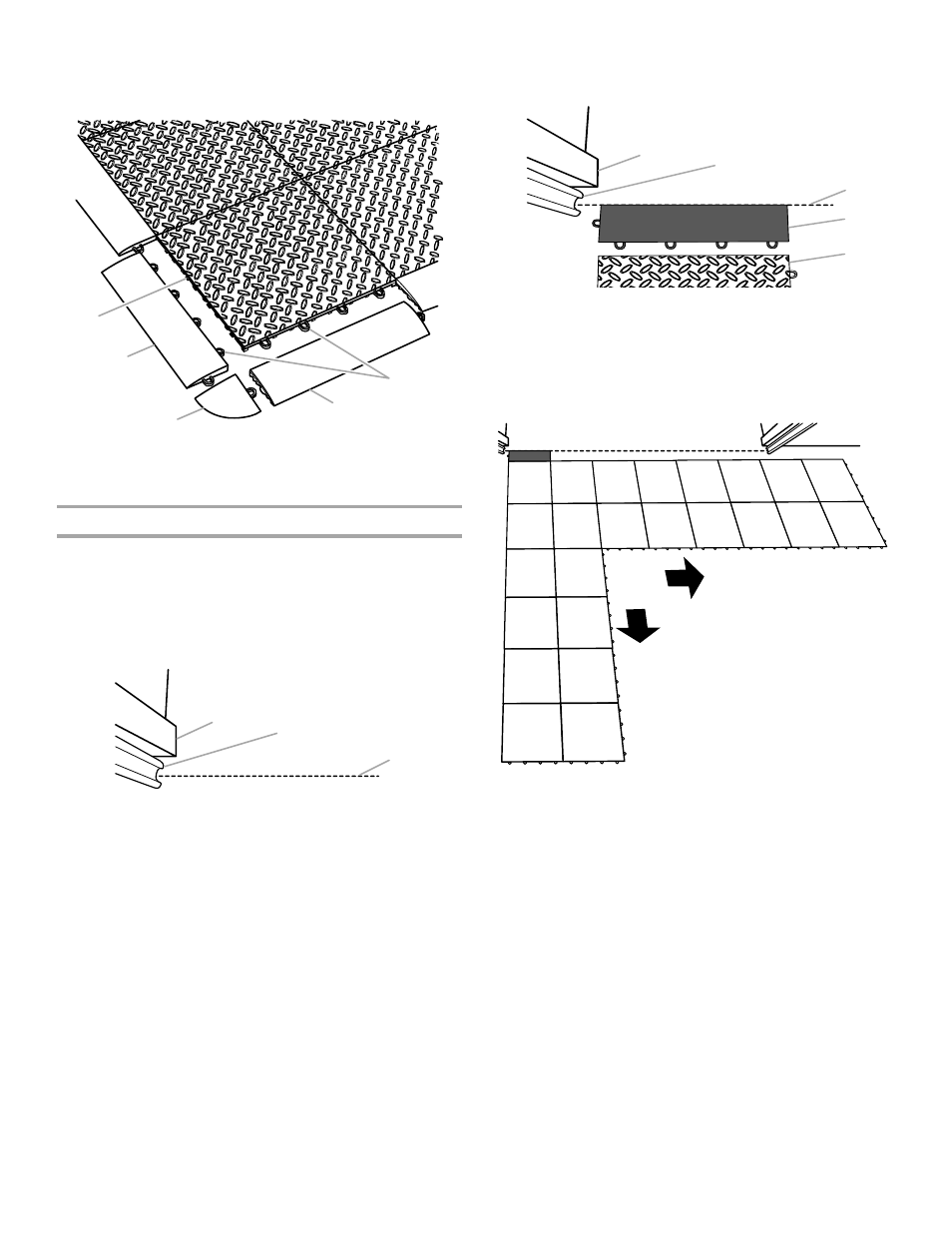

3. Attach the male edge trim by joining the male tabs to the female
connecting loops located on the tile. Attach the female edge trim
by joining the female connecting loops to the male tabs on the
tile. Connect the corner edge trim as shown.
Wall to Wall Installation
IMPORTANT: If installing edge trim around the perimeter walls in a
wall to wall application, determine the number of whole tiles to be
used. Be sure to leave a minimum of
¹⁄₂" (1.25 cm) space between the
edge trim and the perimeter of the garage walls.
1.
Determine the starting point at the front of the garage. Using the
garage door track as a guide, draw a line (using a straight edge
or chalk line) between the center of the tracks on the garage floor
as shown.
2. Align the first female edge trim with the center line (near the left
edge of the garage door opening) as shown. The edge trim is the
guide for installing the tiles.
3. Using a rubber mallet connect the tiles in the first column
working from the female edge trim toward the back wall of the
garage. Continue installing the remaining tiles in the first row
working toward the right side of the garage as shown.
A. Male tabs
B. Female edge trim
C. Corner edge trim
D. Male edge trim
E. Female loops
A. Garage door opening
B. Garage door track C. Center line
A
B
C
E
D
A
C
B
A. Garage door opening
B. Garage door track
C. Center line
D. Female edge trim
E. Tile (with male tabs
facing front and left)
A
D
C
E
B
1
2
