Quick Bobbin
Thread Device

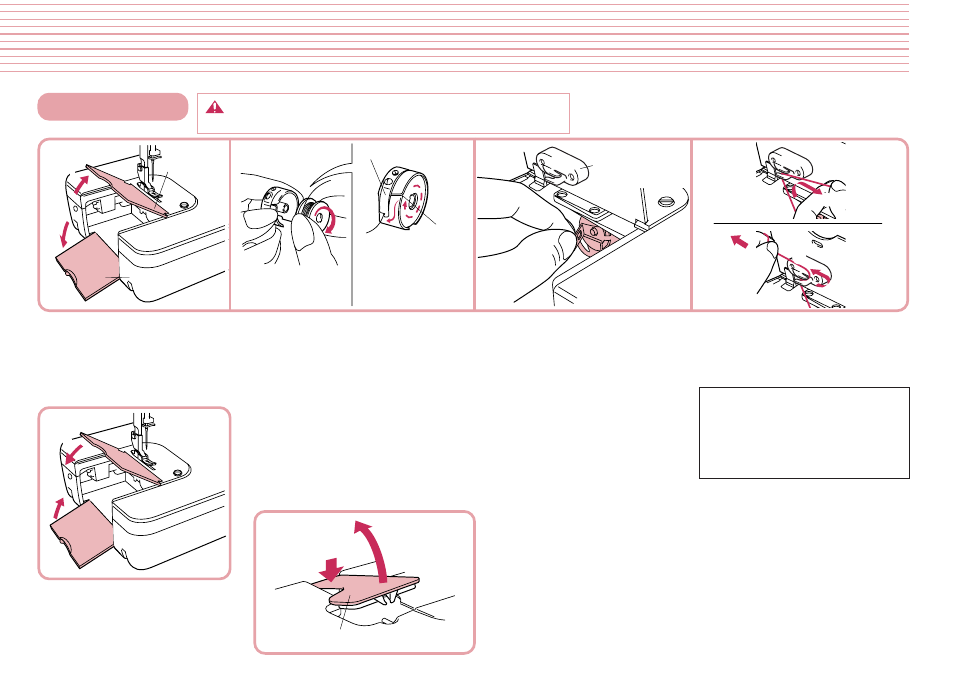

1 Lift needle plate and open bob-
bin door.
2 Put bobbin into the bobbin case.
✽ Run thread through thread notch and under
latch spring, so that a length of thread is ex-
posed.
✽ Always use the bobbin case that was sup-
plied with this machine. A secondary bob-
bin case can be ordered from your dealer.
3 Pull the latch lever of the bobbin case
out and push the bobbin case into the
shuttle race and release the latch lever.
✽ If the latch lever is not set securely on
the hook, it may fly off during sewing
and cause lower thread breakage.
Rotate the hand wheel one full rota-
tion towards you to check that the
bobbin case is set securely.
4 Pass the thread through the quick
bobbin thread device in the order 1
2 , pull in the direction of the arrow
3 , then cut the thread.
CAUTION – Moving parts –
To reduce risk of injury, switch power off before servicing. Open covers.
Bobbin Insertion
✽ Bobbin should be
positioned so it
winds to the left.
Latch Spring
Thread Notch
2
1
9
Bobbin Door
Needle Plate
2
1
1
2
3
5 Lower slide plate and close bob-
bin door, following numbers 1
2 above in order.
★ Quick Bobbin Thread Device
This device cuts the bobbin thread end
to an appropriate length after the bob-
bin has been replaced and holds it at
that length, so the operation of pulling
out the thread can not be skipped.
Bobbin Thread Setting Cover
● When the fabric extension table is set in place
Open the bobbin thread setting cover
beforehand, then set the bobbin
thread in place. (You can set the bob-
bin thread in place without removing
the fabric extension table.)
